Description

Price

550

PIN COTTER 2.0X15

550D2015

$1.04

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$14.10

43010

ROD-ASSY-BRAKE

43010-1083

$76.42

43015

CYLINDER-ASSY-MASTER,RR

43015-1645

$440.98

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1545

$41.15

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43078

RESERVOIR,RR MASTER CYLINDER

43078-1165

$30.28

43095

HOSE-BRAKE,RR

43095-1142

$93.34

92001

BOLT,W/P,6X16

92001-1860

$4.31

92002

BOLT,OIL,L=23

92002-1907

$5.48

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92037

CLAMP,BRAKE HOSE

92037-1547

$12.35

92043

PIN,8MM

92043-1303

$3.90

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92151

BOLT,6X12

92151-1133

Unavailable

92151A

BOLT,SOCKET,8X35

92151-1535

$3.35

92171

CLAMP,HOSE

92171-1073

$9.35

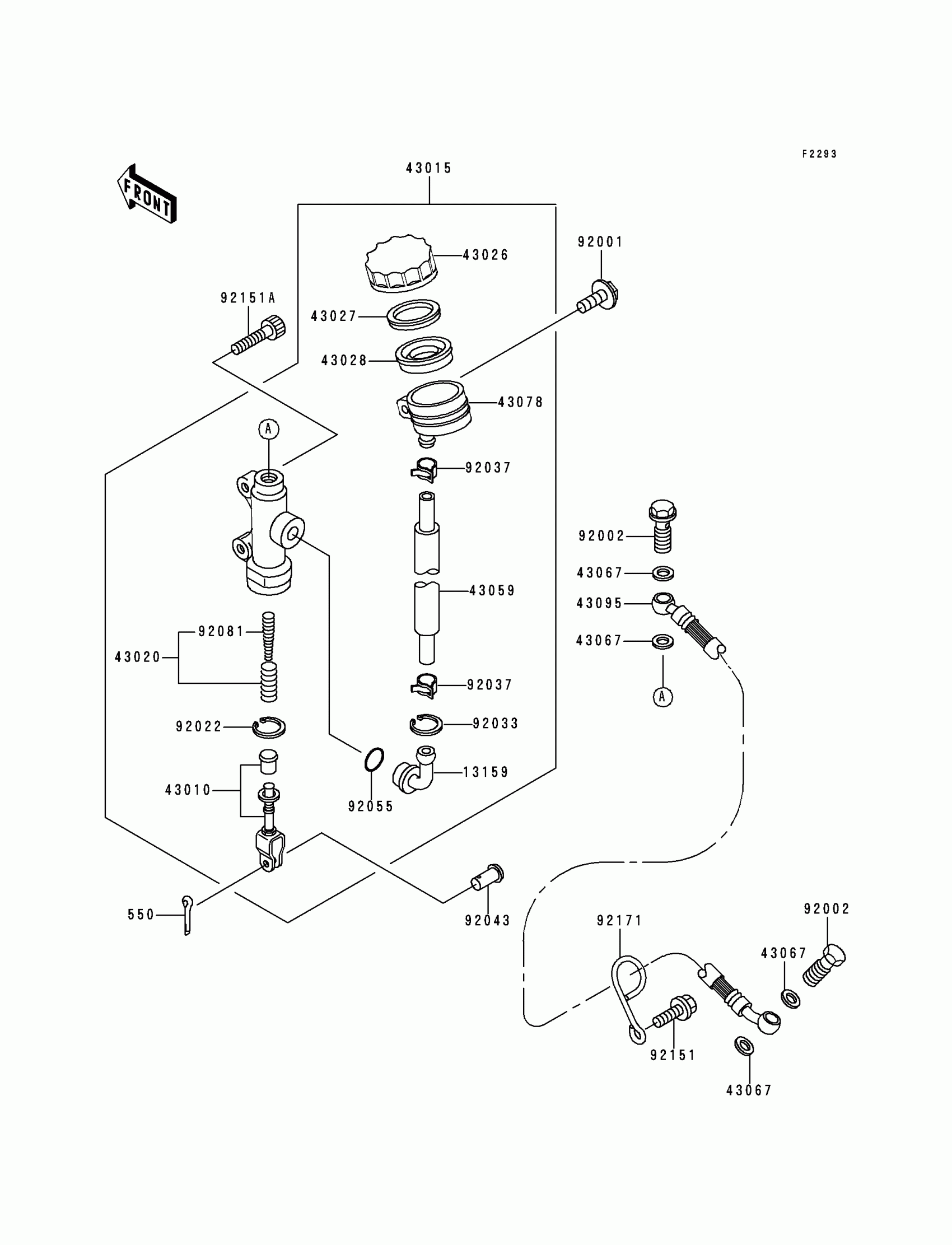

Kawasaki ZR-7 Rear Master Cylinder Diagram

PIN COTTER 2.0X15

CONNECTOR,RR MASTER CYLINDER

ROD-ASSY-BRAKE

CYLINDER-ASSY-MASTER,RR

PISTON-COMP-BRAKE

CAP-BRAKE

PLATE-DIAPHRAGM

DIAPHRAGM,MASTER CYLINDER

HOSE-BRAKE,RR MASTER CYLINDER

WASHER,10.5X15X1.5

RESERVOIR,RR MASTER CYLINDER

HOSE-BRAKE,RR

BOLT,W/P,6X16

BOLT,OIL,L=23

WASHER,CIRCRIP

RING-SNAP,20.5MM

CLAMP,BRAKE HOSE

PIN,8MM

RING-O,MASTER CYLINDER

SPRING,MASTER CYLINDER

BOLT,6X12

BOLT,SOCKET,8X35

CLAMP,HOSE
