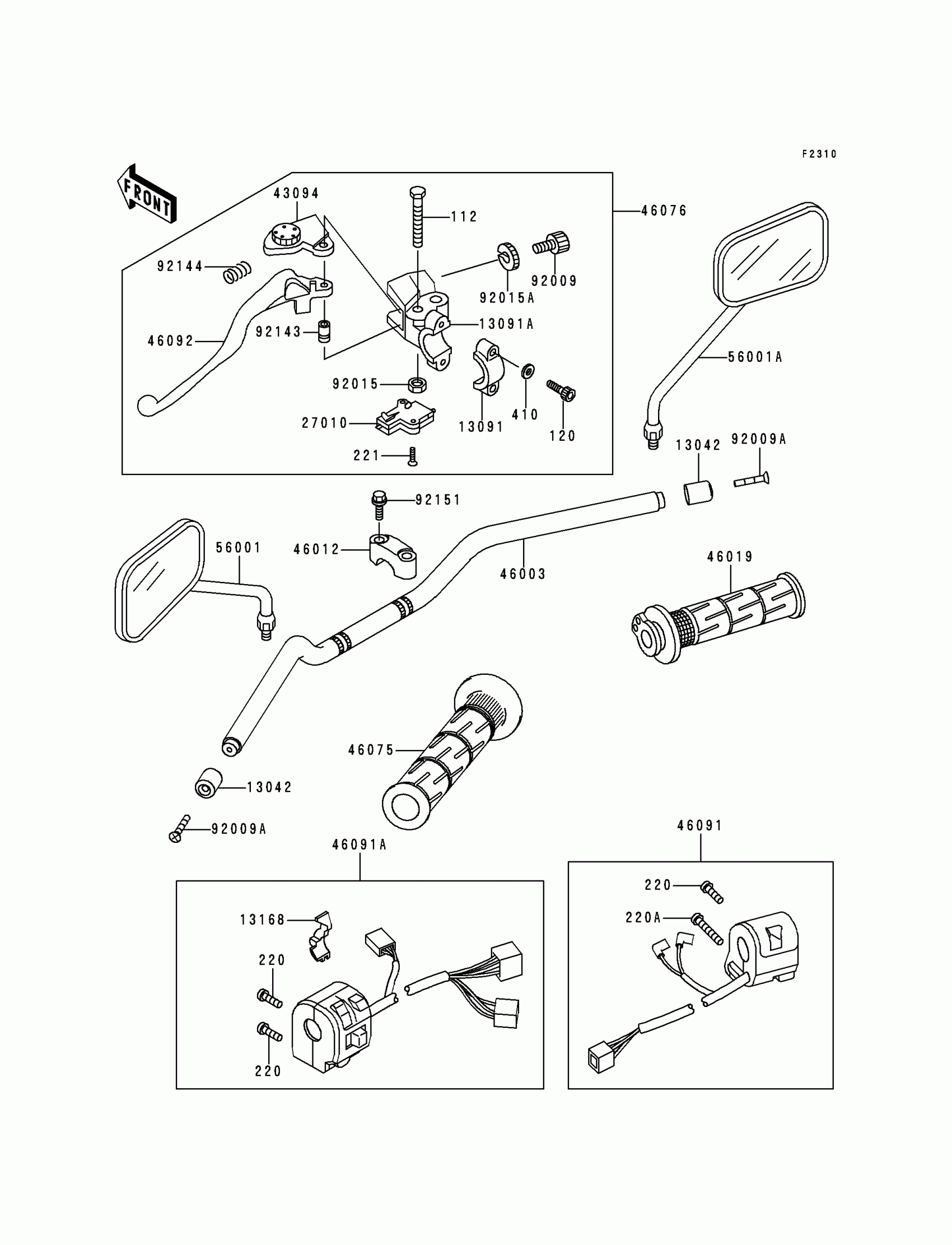

Kawasaki ZR-7 Handlebar Diagram
#
Description
Price
112
BOLT-UPSET,6X40
112C0640
$4.50
120
BOLT-SOCKET,6X20
120S0620
Unavailable
220
SCREW-PAN-CROS,5X25
220C0525
$3.52
220A
SCREW-PAN-CROS,5X40
220C0540
$1.92
221
SCREW-CSK-CROS
221C0316
$3.67
410
WASHER-PLAIN-SMALL,6MM,BLACK
410F0600
$0.72
13042
WEIGHT,HANDLE
13042-1077
$35.38
13091
HOLDER,CLUTCH LEVER
13091-1624
$35.87
13091A
HOLDER,CLUTCH LEVER
13091-1652
Unavailable
13168
LEVER,CHOKE
13168-1516
$9.37
27010
SWITCH,CLUTCH,BLACK
27010-1094
$28.59
43094
ADJUSTER,CLUTCH LEVER
43094-1053
$36.12
46003
HANDLE
46003-1521
$146.53
46012
HOLDER-HANDLE,UPP
46012-1295
$19.20
46019
GRIP-ASSY,THROTTLE
46019-1090
$41.80
46075
GRIP,HANDLE,LH
46075-1144
$20.96
46076
LEVER-ASSY-GRIP,CLUTCH
46076-1180
Unavailable
46091
HOUSING-ASSY-CONTROL,RH
46091-1672
$154.45
46091A
HOUSING-ASSY-CONTROL,LH
46091-1716
$214.98
46092
LEVER-GRIP,CLUTCH
46092-1162
$17.78
56001
MIRROR-ASSY,LH
56001-1533
$89.91
56001A
MIRROR-ASSY,RH
56001-1534
Unavailable
92009
SCREW,CABLE ADJUST,8MM,BLACK
92009-1134
$15.16
92009A
SCREW,5X35
92009-1727
$4.38
92015
NUT,LOCK,6MM,BLACK
92015-1191
Unavailable
92015A
NUT,CABLE ADJUST LOCK,8MM,BLK
92015-1197
$9.91
92143
COLLAR
92143-1379
$9.51
92144
SPRING
92144-1467
$6.51
92151
BOLT,FLANGED,8X35
92151-1537
$2.67
