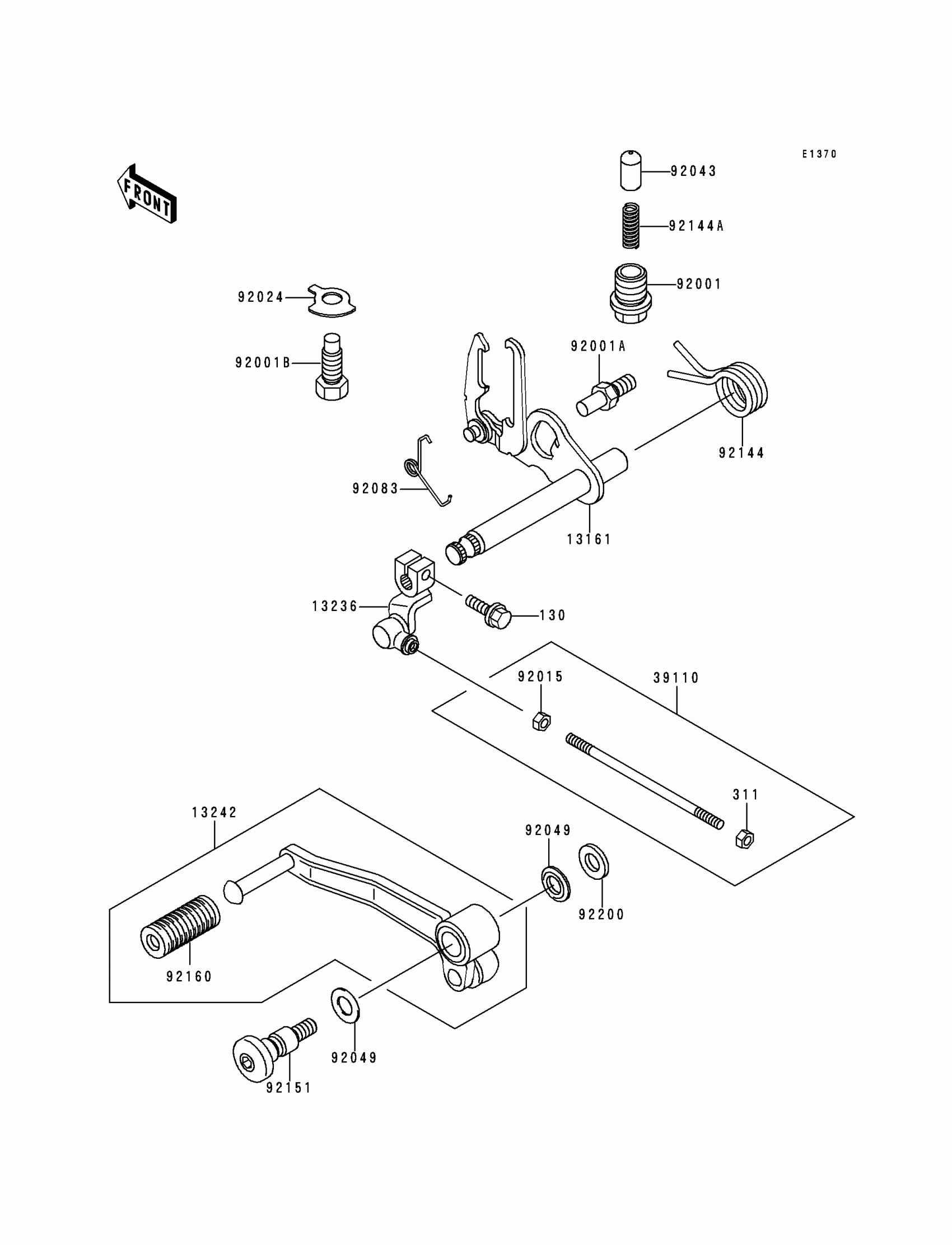

Kawasaki ZR-7 Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130S0620

$6.86

311

NUT-HEX

311J0600

$1.01

13161

LEVER-COMP-CHANGE SHAFT

13161-042

$123.33

13236

LEVER-COMP,CHANGE

13236-1332

$70.09

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1359

$133.29

39110

ROD-ASSY-TIE

39110-1106

$13.07

92001

BOLT,NEUTRAL POSITION

92001-1037

$13.37

92001A

BOLT,RETURN SPRING

92001-1455

$4.69

92001B

BOLT,10X26

92001-174

$8.19

92015

NUT,LEFT HANDED,6MM

92015-1178

$4.31

92024

WASHER,LOCK,10MM

92024-074

$4.38

92043

92043-076

$11.71

92049

SEAL-OIL,VB13193

92049-1398

$6.22

92083

SPRING

92083-018

$9.80

92144

SPRING,CHANGE PEDAL RETURN

92144-1074

$9.43

92144A

SPRING,NEUTRAL POSITION

92144-1580

$7.22

92151

BOLT,CHANGE PEDAL

92151-1481

$18.46

92160

DAMPER,CHANGE PEDAL

92160-1036

$5.05

92200

WASHER,8.5X25X1.5

92200-3717

$4.92
