2000 Kawasaki ZR-7 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

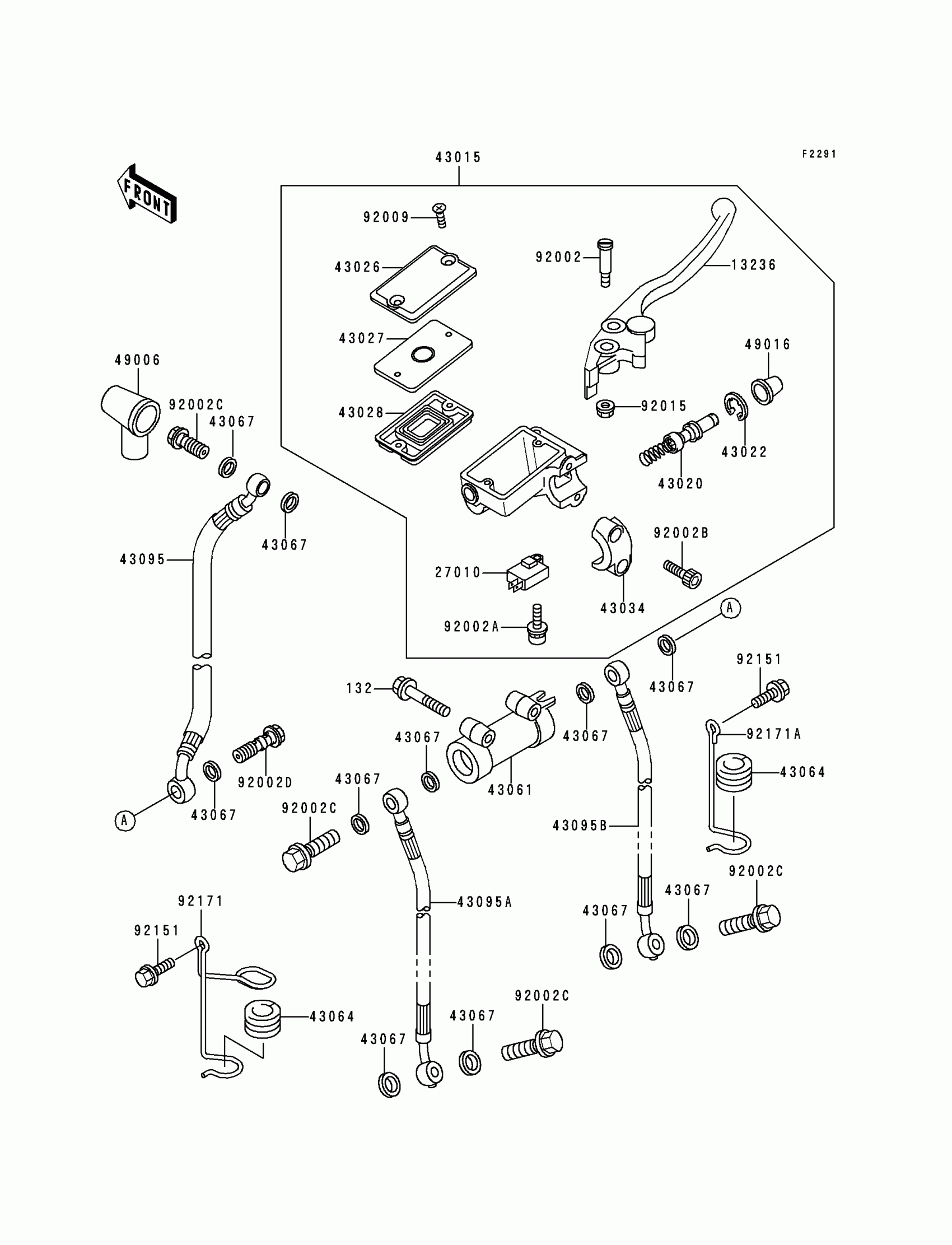

2000 Kawasaki ZR-7 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132J0645

1
Out of stock

13236

LEVER-COMP,FRONT BRAKE

13236-1221

1
Out of stock

27010

SWITCH,BRAKE

27010-1170

1

$33.39

In stock

43015

1

$417.61

In stock

43020

1

$59.90

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-1076

1

$43.44

In stock

43027

PLATE-DIAPHRAGM

43027-1055

1

$7.68

In stock

43028

1

$21.24

In stock

43034

1

$36.55

In stock

43061

JOINT-BRAKE

43061-1002

1

$73.52

In stock

43064

GROMMET,HOSE CLAMP

43064-007

1

$4.37

In stock

43067

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

43095

HOSE-BRAKE,FR,UPP

43095-1149

1

$95.14

In stock

43095A

1

$95.14

In stock

43095B

1

$95.14

In stock

49006

BOOT,DUST

49006-1040

1

$9.11

In stock

49016

1

$6.90

In stock

92002

1

$9.29

In stock

92002A

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92002B

1

$7.54

In stock

92002C

BOLT,OIL,L=23

92002-1907

1
Out of stock

92002D

BOLT,OIL,L=37

92002-1908

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92151

BOLT,6X12

92151-1133

1
Out of stock

92171

CLAMP,LH,HOSE&CABLE

92171-1153

1
Out of stock

92171A

CLAMP,RH,HOSE

92171-1154

1
Out of stock
