2000 Kawasaki ZR-7 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

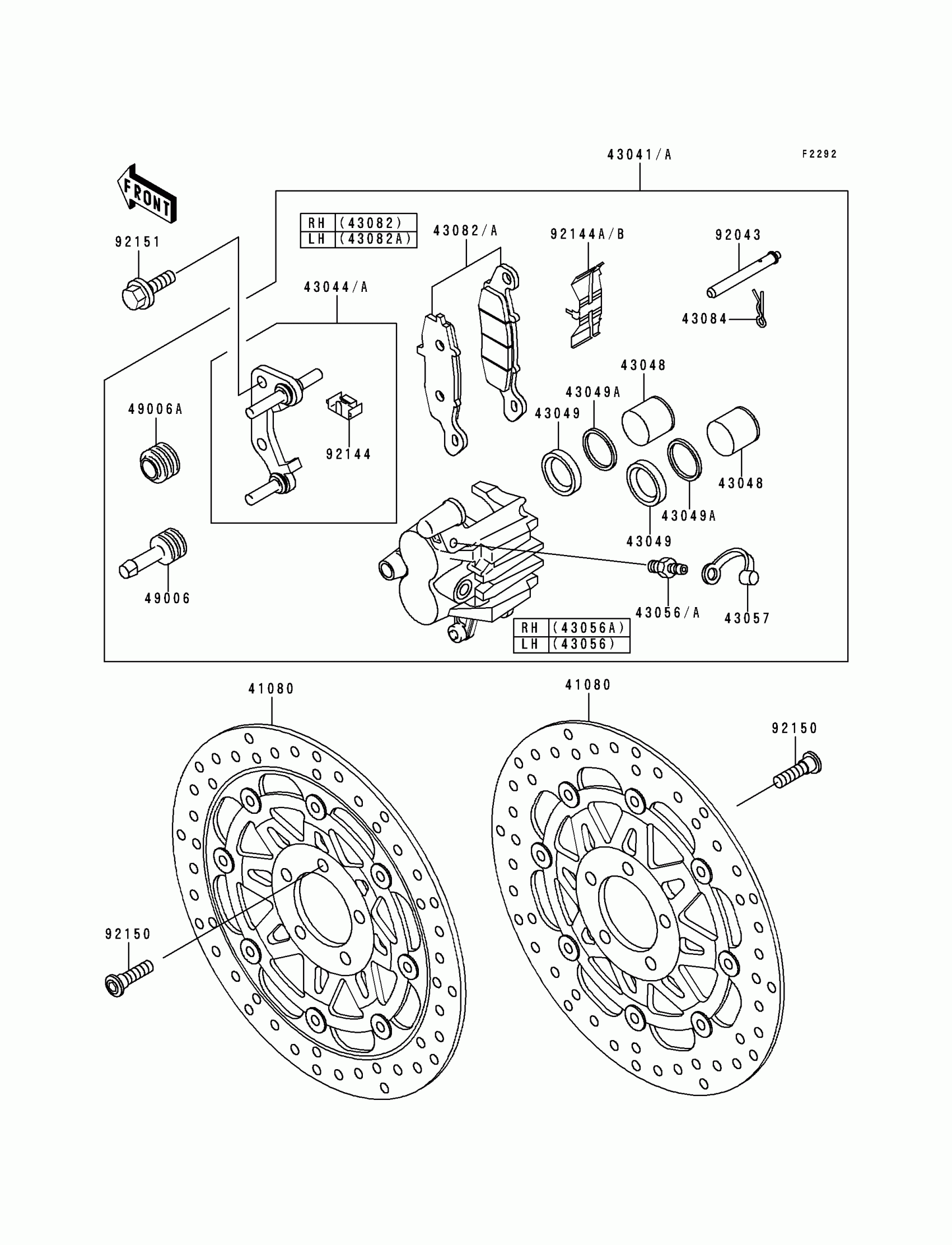

2000 Kawasaki ZR-7 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR,GOLD+DISC-SILVER

41080-1467-5E

1

$459.37

In stock

43041

1

$433.79

In stock

43041A

1

$433.79

In stock

43044

1

$151.97

In stock

43044A

1

$147.38

In stock

43048

PISTON-CALIPER

43048-1073

1

$59.90

In stock

43049

PACKING,PISTON SEAL

43049-1067

1

$8.25

In stock

43049A

PACKING

43049-1068

1

$7.79

In stock

43056

BREATHER

43056-003

1

$22.74

In stock

43056A

BREATHER-BRAKE

43056-1054

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43082

PAD-ASSY-BRAKE

43082-1235

1

$75.74

In stock

43082A

PAD-ASSY-BRAKE,LH

43082-1244

1

$51.05

In stock

43084

CLAMP,PAD

43084-003

1

$3.43

In stock

49006

BOOT,CALIPER

49006-1054

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1095

1

$5.78

In stock

92043

PIN,PAD

92043-1489

1

$5.21

In stock

92144

SPRING,STOPPER

92144-1831

1

$4.34

In stock

92144A

SPRING,PAD,LH

92144-1832

1

$24.71

In stock

92144B

SPRING,PAD,RH

92144-1844

1

$9.68

In stock

92150

BOLT,SOCKET,8X30

92150-1771

1

$3.72

In stock

92151

BOLT,FLANGED,10X38

92151-1288

1

$4.24

In stock
