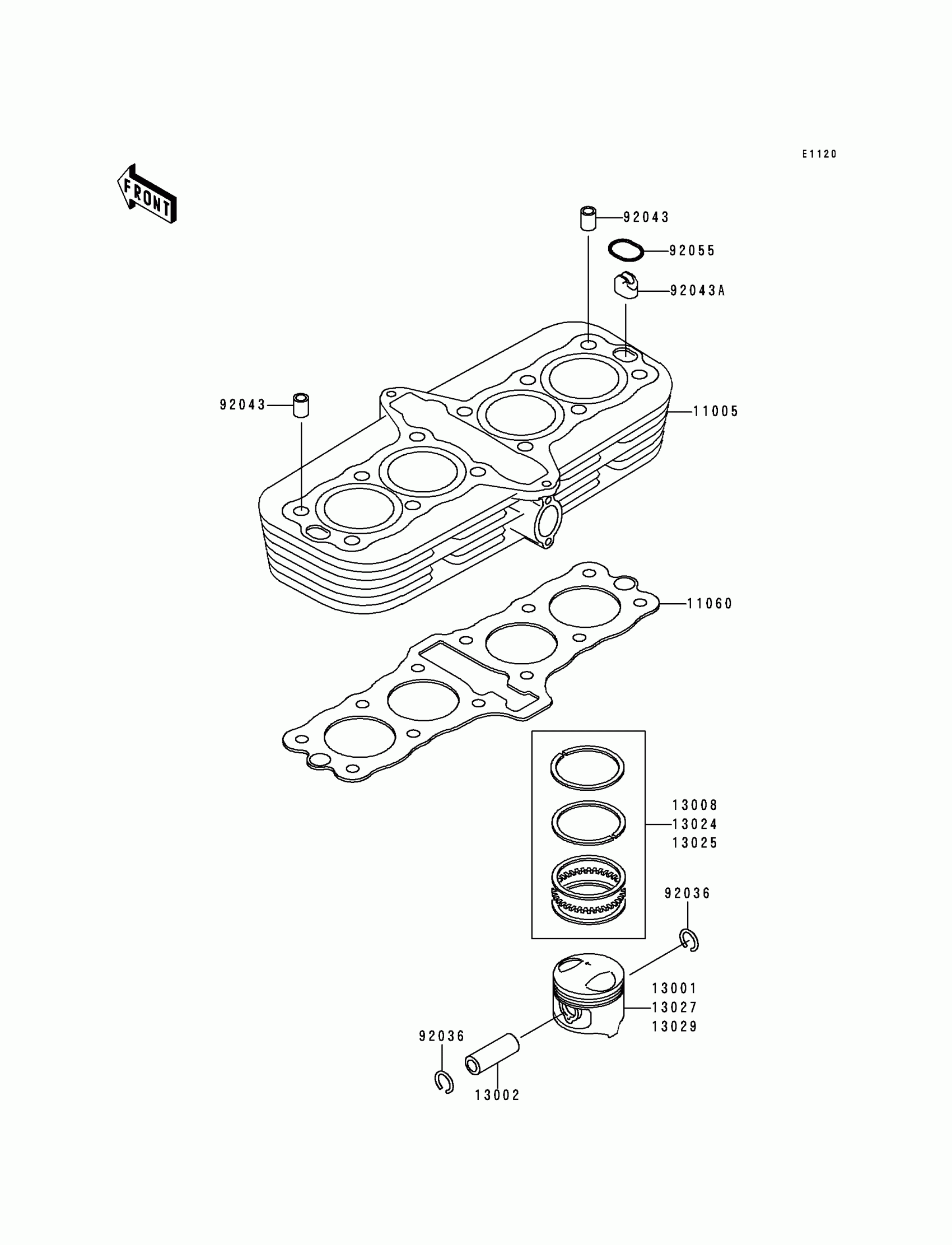

Kawasaki ZR-7 Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1899

$1,654.96

11060

GASKET,CYLINDER BASE

11060-1898

$34.11

13001

PISTON-ENGINE,STD

13001-1572

$107.92

13002

PIN-PISTON

13002-1001

$6.22

13008

RING-SET-PISTON,STD

13008-1195

$68.29

13024

RING-SET-PISTON LL,O/S 1.00

13024-1124

$73.26

13025

RING-SET-PISTON L,O/S 0.50

13025-1153

$73.26

13027

PISTON-ENGINE LL,O/S 1.00

13027-1206

$107.92

13029

PISTON-ENGINE L,O/S 0.50

13029-1272

$107.92

92036

RING-SNAP

92036-005

$4.07

92043

PIN,11X14X12.3

92043-1266

$1.08

92043A

PIN,OIL LINE

92043-1546

$7.62

92055

RING-O,CYLINDER OIL LINE PIN

92055-1147

$9.89
