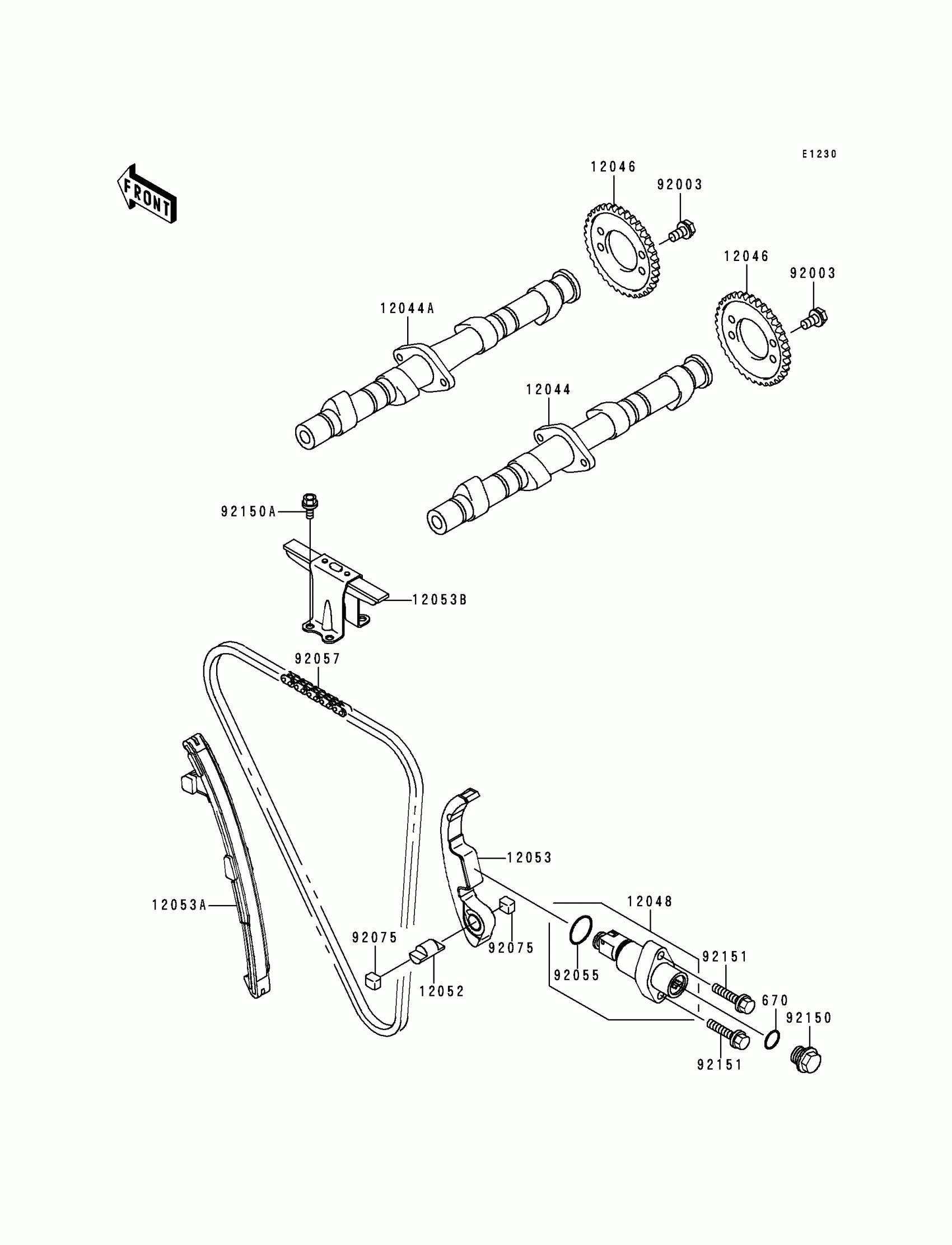

Kawasaki ZR-7 Camshaft(s)/Tensioner Diagram

Description

Price

670

O RING,10MM

670D2010

$1.94

12044

CAMSHAFT-VALVE,INTAKE

12044-1460

$505.41

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1461

$505.41

12046

SPROCKET,CAMSHAFT,46T

12046-1021

$76.42

12048

TENSIONER-ASSY

12048-1159

$136.78

12052

SHAFT-IDLER,CAM CHAIN GUIDE

12052-003

$14.37

12053

GUIDE-CHAIN,RR

12053-1425

$90.27

12053A

GUIDE-CHAIN,FR

12053-1426

$105.56

12053B

GUIDE-CHAIN,UPP

12053-1427

$51.06

92003

BOLT,FLANGED,6X11

92003-208

$4.31

92055

RING-O,TENSIONER

92055-1583

$4.39

92057

CHAIN,CAM,82RH2015-150L

92057-1319

$125.91

92075

DAMPER,CAM CHAIN GUIDE

92075-1314

$13.08

92150

BOLT,TENSIONER

92150-1380

$7.69

92150A

BOLT,FLANGED,6X12

92150-1826

$3.65

92151

BOLT,6X25

92151-1190

$3.63
