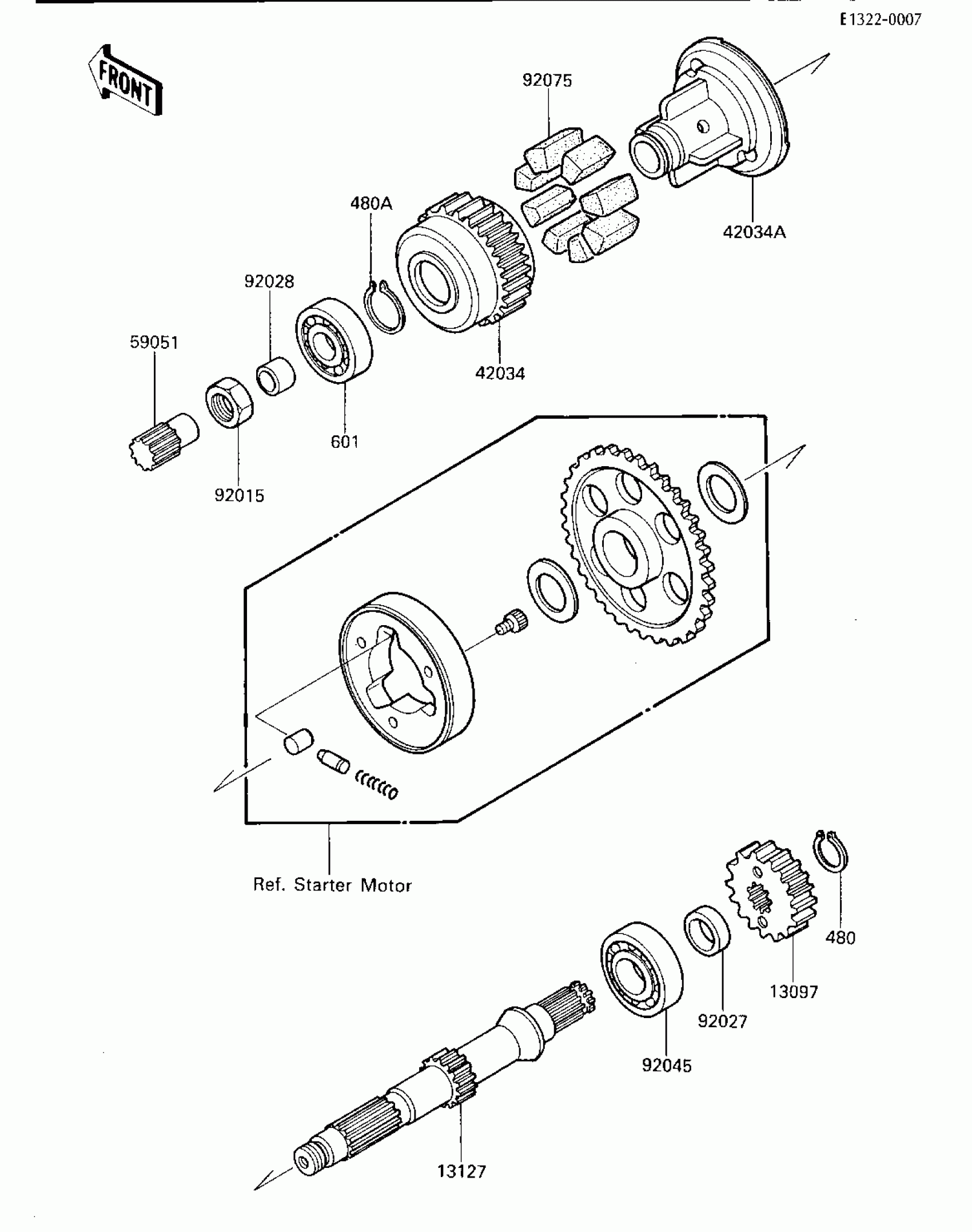

Kawasaki ZL600 Eliminator SECONDARY SHAFT Diagram

Description

Price

13097

GEAR-PRIMARY SPUR,28T

13097-1141

Unavailable

13127

SHAFT,SECONDARY

13127-1123

Unavailable

42034

COUPLING,OUTER,SECONDARY SHAFT

42034-1004

Unavailable

42034A

COUPLING,INNER,SECONDARY SHAFT

42034-1005

Unavailable

59051

GEAR-SPUR,10T,SECONDARY

59051-1137

Unavailable

92015

NUT,20MM

92016-028

$9.91

92027

COLLAR,22X34X7.3

92027-1438

$8.19

92028

BUSHING,20X25X16.6

92028-1037

$31.84

92045

BEARING-BALL,#63/22X

92045-1017

$34.15

92075

DAMPER,COUPLING

92075-1070

$7.62

480

CIRCLIP-TYPE-C,22MM

480J2200

$5.00

480A

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

601

BEARING-BALL,#6205C3

601B6205

$19.57
