Description

Price

11009

GASKET,BEVEL GEAR CAS

11009-1579

Unavailable

11012

CAP,FRONT BEVEL

11012-1715

Unavailable

13048

CAM-DAMPER

13048-1068

Unavailable

13101

GEAR-ASSY,FRONT BEVEL

13101-1146

Unavailable

13101A

GEAR-ASSY,FRONT BEVEL

13101-5060

Unavailable

13107

SHAFT,BEVEL GEAR

13107-1178

Unavailable

14020

RETAINER

14020-1065

Unavailable

14055

CASE-GEAR,FRONT BEVEL

14055-1092

$625.17

41046

HOUSING-BEARING

41046-1076

$179.12

42034

COUPLING,FR DRIVEN

42034-1091

$127.52

92002

BOLT,FLANGED-SMALL,6X40

92002-1566

$5.30

92002A

BOLT

92002-1789

$2.80

92002B

BOLT

92002-1790

Unavailable

92015

NUT,LOCK,14MM

92015-1067

$9.89

92015A

NUT

92015-1543

$19.66

92022

WASHER,14.1X31X5

92022-1115

$11.91

92025

SHIM,25.3X36X0.15

92025-1688

Unavailable

92025A

SHIM,25.3X36X0.50

92025-1689

Unavailable

92025B

SHIM,25.3X36X0.60

92025-1690

Unavailable

92025C

SHIM,25.3X36X0.70

92025-1691

Unavailable

92025D

SHIM,25.3X36X0.80

92025-1692

Unavailable

92025E

SHIM,25.3X36X0.90

92025-1693

Unavailable

92025F

SHIM,25.3X36X1.00

92025-1694

Unavailable

92025G

SHIM,25.3X36X1.10

92025-1695

Unavailable

92025H

SHIM,25.3X36X1.20

92025-1696

Unavailable

92025I

SHIM,T=0.10

92025-1772

Unavailable

92025J

SHIM,T=0.15

92025-1773

Unavailable

92025K

SHIM,T=0.70

92025-1774

Unavailable

92025L

SHIM,T=0.80

92025-1775

Unavailable

92025M

SHIM,T=1.00

92025-1776

Unavailable

92025N

SHIM,T=1.20

92025-1777

Unavailable

92045

BEARING-BALL,6205

92045-1115

$25.87

92045A

BEARING-BALL,TMB305X3

92045-1167

$53.69

92045B

BEARING-BALL,5305SH2CD2

92045-1147

$98.43

92049

SEAL-OIL,TC35527

92049-1038

$17.95

92049A

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,ID=18.64

92055-1044

$4.78

92062

NOZZLE,BLACK

92062-011

$8.58

92066

PLUG,OIL LINE

92066-1221

$5.66

92143

COLLAR

92027-1994

$20.38

92144

SPRING,CAM DAMPER

92081-1981

Unavailable

130

BOLT-FLANGED,6X25

130S0625

$3.84

671

O RING,70MM

671B2570

$7.62

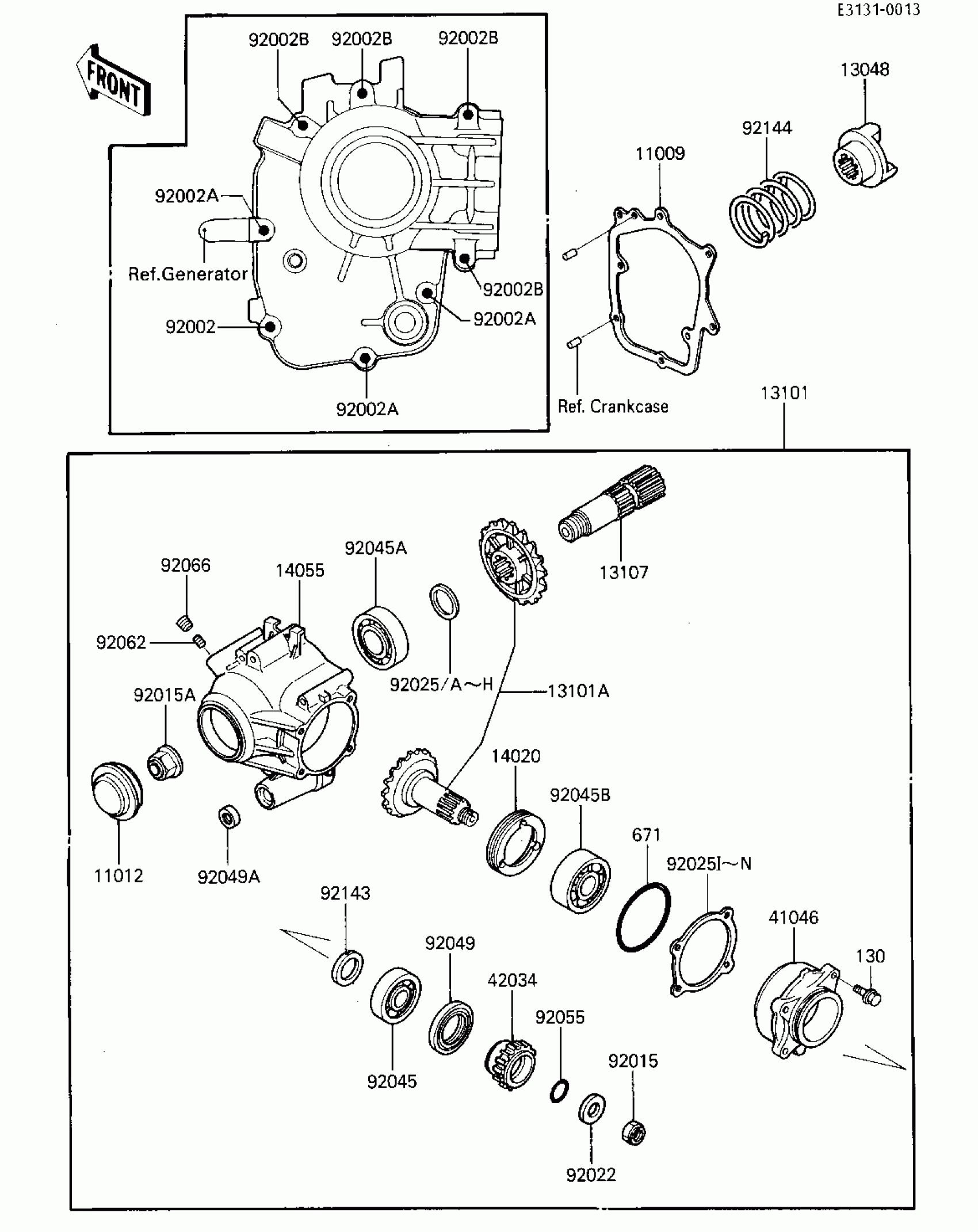

Kawasaki ZL600 Eliminator FRONT BEVEL GEARS Diagram

GASKET,BEVEL GEAR CAS

CAP,FRONT BEVEL

CAM-DAMPER

GEAR-ASSY,FRONT BEVEL

GEAR-ASSY,FRONT BEVEL

SHAFT,BEVEL GEAR

RETAINER

CASE-GEAR,FRONT BEVEL

HOUSING-BEARING

COUPLING,FR DRIVEN

BOLT,FLANGED-SMALL,6X40

BOLT

BOLT

NUT,LOCK,14MM

NUT

WASHER,14.1X31X5

SHIM,25.3X36X0.15

SHIM,25.3X36X0.50

SHIM,25.3X36X0.60

SHIM,25.3X36X0.70

SHIM,25.3X36X0.80

SHIM,25.3X36X0.90

SHIM,25.3X36X1.00

SHIM,25.3X36X1.10

SHIM,25.3X36X1.20

SHIM,T=0.10

SHIM,T=0.15

SHIM,T=0.70

SHIM,T=0.80

SHIM,T=1.00

SHIM,T=1.20

BEARING-BALL,6205

BEARING-BALL,TMB305X3

BEARING-BALL,5305SH2CD2

SEAL-OIL,TC35527

SEAL-OIL,TB13225.5

RING-O,ID=18.64

NOZZLE,BLACK

PLUG,OIL LINE

COLLAR

SPRING,CAM DAMPER

BOLT-FLANGED,6X25

O RING,70MM
