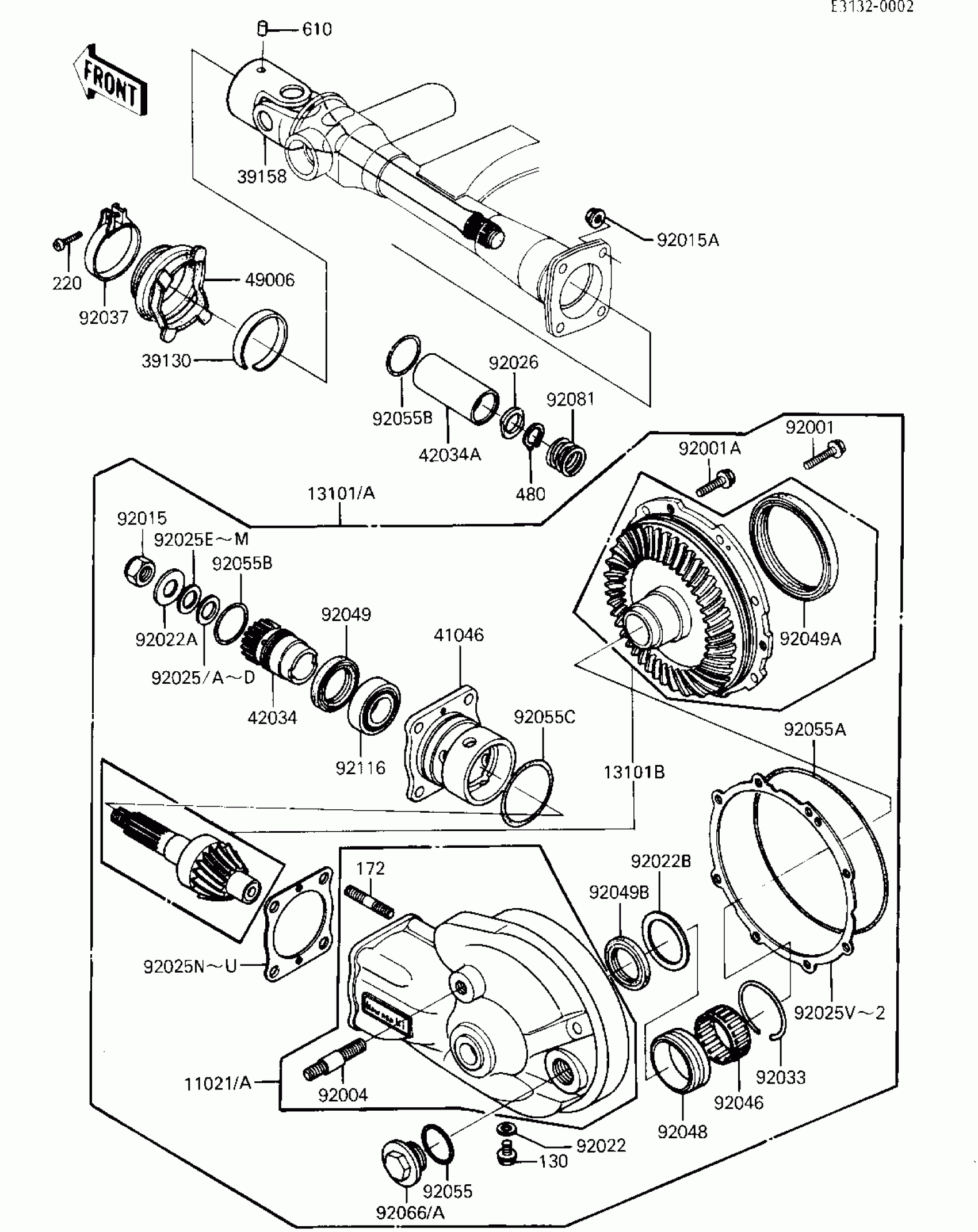

Kawasaki ZL600 Eliminator DRIVE SHAFT/FINAL GEARS Diagram

#

Description
Price

13101B

GEAR-ASSY,FINAL BEVEL

13101-5035

Unavailable

39130

SPRING-LEAF

39130-1002

$4.65

39158

SHAFT-ASSY-DRIVE

39158-1060

$334.90

41046

HOUSING-BEARING

41046-1015

$179.75

42034

COUPLING,DRIVE SHAFT,INNER

42034-1030

Unavailable

42034A

COUPLING,DRIVE SHAFT,OUTER

42034-1031

$120.80

49006

BOOT,PROPELLER SHAFT

49006-1059

$39.05

92001

BOLT,FLANGED,8X28

92001-1095

$6.57

92001A

BOLT,FLANGED,8X25

92001-1324

$5.17

92004

STUD,RR SHOCKABSORBER

92004-1047

$15.74

92015

NUT,12MM

92015-1182

$7.83

92015A

NUT,FLANGED,8MM

92015-1408

$5.38

92022

WASHER,8.2X16X1

92022-1086

$3.92

92022A

WASHER,12.3X25X3.2

92022-1293

$6.61

92022B

WASHER,39X49.5X1

92022-1294

$7.24

92025

SHIM,12.5X17X1.30

92025-1282

Unavailable

92025A

SHIM,12.5X17X1.32

92025-1283

Unavailable

92025B

SHIM,12.5X17X1.34

92025-1284

Unavailable

92025C

SHIM,12.5X17X1.36

92025-1285

Unavailable

92025D

SHIM,12.5X17X1.38

92025-1286

Unavailable

92025E

SHIM,12.5X17X0.1

92025-1287

Unavailable

92025F

SHIM,12.5X17X0.2

92025-1288

Unavailable

92025G

SHIM,12.5X17X0.3

92025-1289

Unavailable

92025H

SHIM,12.5X17X0.5

92025-1290

Unavailable

92025I

SHIM,12.5X17X0.6

92025-1291

Unavailable

92025J

SHIM,12.5X17X0.7

92025-1292

Unavailable

92025K

SHIM,12.5X17X0.8

92025-1293

Unavailable

92025L

SHIM,12.5X17X0.9

92025-1294

Unavailable

92025M

SHIM,12.5X17X1.0

92025-1295

Unavailable

92025N

SHIM,T=0.15

92025-1312

Unavailable

92025O

SHIM,T=0.5

92025-1313

Unavailable

92025P

SHIM,T=0.6

92025-1314

Unavailable

92025Q

SHIM,T=0.7

92025-1315

Unavailable

92025R

SHIM,T=0.8

92025-1316

Unavailable

92025S

SHIM,T=0.9

92025-1317

Unavailable

92025T

SHIM,T=1.0

92025-1318

Unavailable

92025U

SHIM,T=1.2

92025-1319

Unavailable

92025V

SHIM,T=0.15

92025-1336

Unavailable

92025W

SHIM,T=0.5

92025-1337

Unavailable

92025X

SHIM,T=0.6

92025-1338

Unavailable

92025Y

SHIM,T=0.7

92025-1339

Unavailable

92025Z

SHIM,T=0.8

92025-1340

Unavailable

920250

SHIM,T=0.9

92025-1341

Unavailable

920251

SHIM,T=1.0

92025-1342

Unavailable

920252

SHIM,T=1.2

92025-1343

Unavailable

92026

SPACER,DRIVE SHAFT

92026-1106

Unavailable

92033

RING-SNAP,52MM

92033-1074

$4.65

92037

CLAMP,BOOT FITTING

92037-1112

$16.72

92046

BRG,NDL,KT384620EG-B2

92046-1037

Unavailable

92048

RACE,ORT465021E01

92048-1019

$44.62

92049

SEAL-OIL,SC28438

92049-1084

$16.08

92049A

SEAL-OIL,SC759510

92049-1085

$38.66

92049B

SEAL-OIL,SC32435.5

92049-1155

$19.64

92055

RING-O,36MM

92055-1005

$6.16

92055A

RING-O,ID=150.4

92055-1039

$15.65

92055B

RING-O,27MM

92055-1119

$5.00

92055C

RING-O,55MM

92055-1120

$5.52

92066A

PLUG,OIL FILLER CAP,M.SILVER

92066-1006-7J

$16.53

92081

SPRING,DRIVE SHAFT

92081-1427

Unavailable

92116

BEARING-ROLLER,4T32004X

92116-1010

$40.55

130

BOLT-FLANGED,8X12

130B0812

$0.77

172

BOLT-STUD,8X30

172G0830

$2.56

220

SCREW-PAN-CROS

220B0430

$0.77

480

CIRCLIP-TYPE-C,20MM

480J2000

$2.71

610

ROLLER,4X6

610A0406

$4.31
