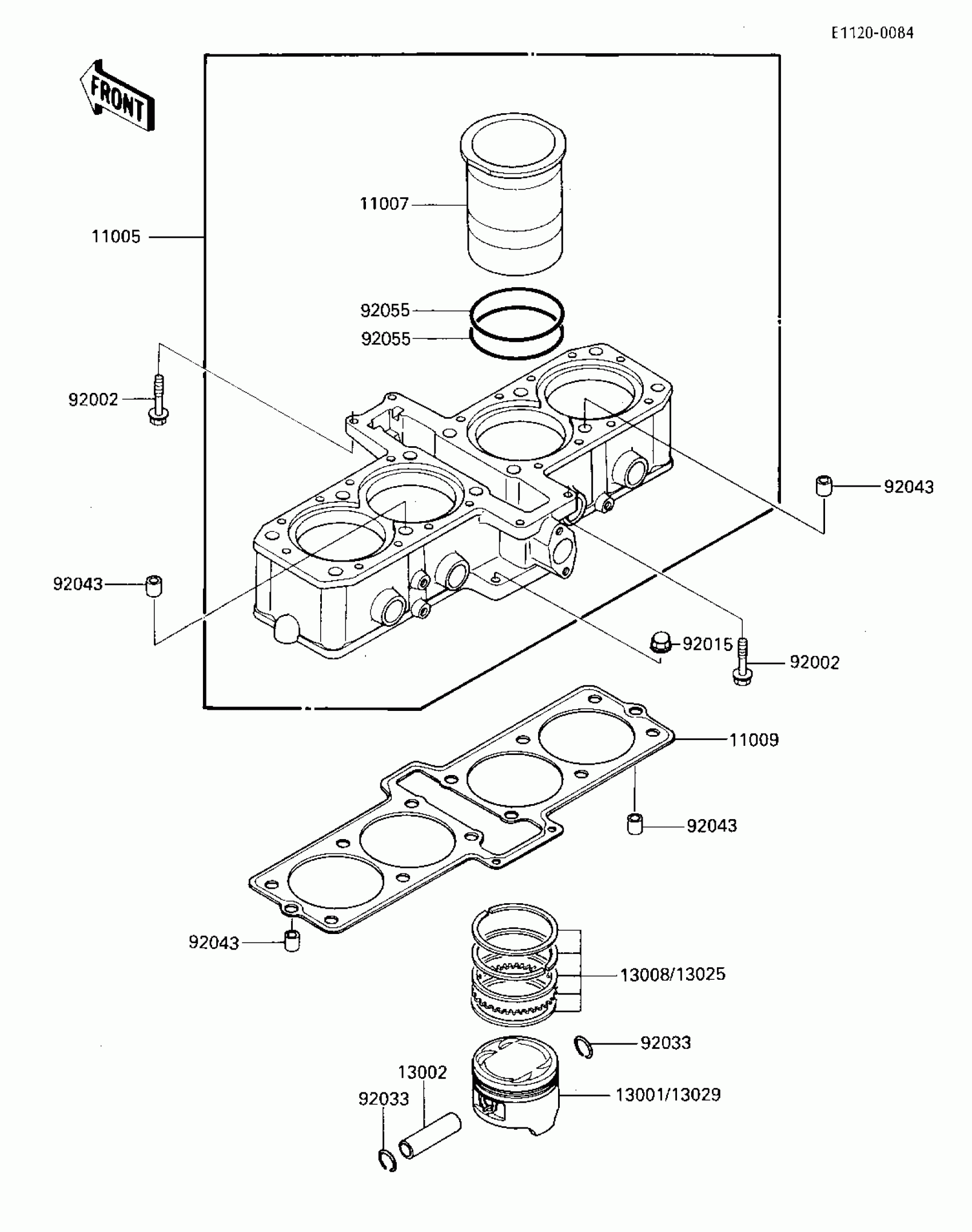

Kawasaki ZL600 Eliminator CYLINDER/PISTON Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1493

Unavailable

11007

LINER-CYLINDER

11007-1086

Unavailable

11009

GASKET,CYLINDER BASE

11009-1578

$34.89

13001

PISTON-ENGINE,STD

13001-1233

Unavailable

13002

PIN-PISTON

13002-1057

Unavailable

13008

RING-SET-PISTON,STD

13008-1074

$67.42

13025

RING-SET-PISTON L,O/S 0.50

13025-1072

$60.73

13029

PISTON-ENGINE L,O/S 0.50

13029-1149

Unavailable

92002

BOLT,6X28

92002-1104

Unavailable

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.64

92033

RING-SNAP,PISTON PIN

92033-1151

$3.89

92043

PIN,8.2X10X14

92043-1264

$0.64

92055

RING-O,66.5MM

92055-1287

$6.57
