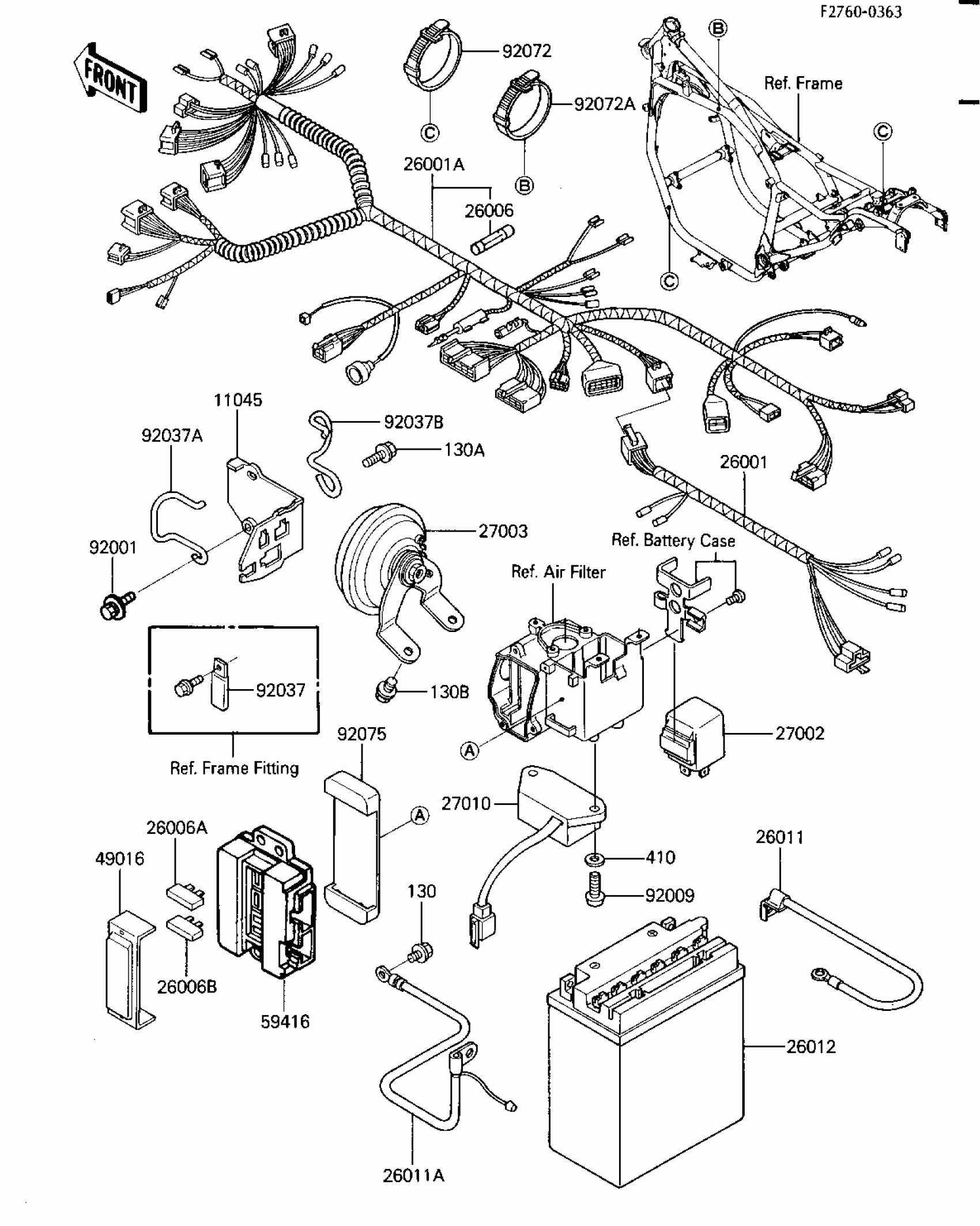

Kawasaki ZL600 Eliminator CHASSIS ELECTRICAL EQUIPMENT Diagram

Description

Price

11045

BRACKET,COUPLER

11044-1879

Unavailable

26001

HARNESS,RR

26001-1770

$41.51

26001A

HARNESS,MAIN

26001-1797

$308.81

26006

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$4.96

26006A

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26006B

FUSE,BLADE,10A,RED

26006-1007

$4.96

26011

WIRE-LEAD,BATTERY(+)

26011-1356

Unavailable

26011A

WIRE-LEAD,BATTERY GROUND

26011-1195

Unavailable

26012

FB BAT FB12A-A

26012-1004

$95.75

27002

RELAY-ASSY,TURN SIGNAL

27002-1060

$94.99

27003

HORN

27003-1243

$78.95

27010

SWITCH,RESERVE LIGHTING

27010-1069

$239.61

49016

COVER-SEAL,FUSE

49016-1106

$9.38

59416

CASE-ELECTRIC,FUSE & RELAY BOX

59416-1052

$189.81

92001

BOLT,6X20

92001-1765

$4.62

92009

SCREW,TAPPING,6X20

92009-1422

$4.60

92037

CLAMP

92037-113

$6.15

92037A

CLAMP,LH

92037-1756

$7.91

92037B

CLAMP,HARNESS,RH

92037-1815

Unavailable

92072

BAND,L=149

92072-031

$5.00

92072A

BAND,L=186

92072-056

$5.00

92075

DAMPER,JUNCTION BOX

92075-1688

$14.36

130

BOLT-FLANGED,6X8

130B0608

$0.67

130A

BOLT-FLANGED,6X16

130B0616

Unavailable

130B

BOLT-FLANGED

130D0612

$0.67

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31
