Description

Price

13168

LEVER,DL

13168-1280

$121.02

13169

PLATE,THROTTLE CABLE

13169-1962

Unavailable

13169A

PLATE,CARBURETOR STAY,UPP

13169-1963

Unavailable

13169B

PLATE,CARBURETOR STAY,LWR,6MM

13169-1964

Unavailable

13183

PLATE,STARTER CABLE

13183-1033

$39.20

15001

CARBURETOR-ASSY

15001-1234

$1,199.35

15001A

CARBURETOR-ASSY

15001-1235

$1,169.71

15002

CARBURETOR,LH,OUTSIDE

15002-1334

$361.14

15002A

CARBURETOR,LH,INSIDE

15002-1335

$376.29

15002B

CARBURETOR,RH,INSIDE

15002-1336

$361.82

15002C

CARBURETOR,RH,OUTSIDE

15002-1337

$361.82

15002H

CARBURETOR

15002-1342

$361.14

15002I

CARBURETOR

15002-1343

$361.14

15002J

CARBURETOR

15002-1344

$361.14

15002K

CARBURETOR

15002-1345

$361.14

16021

SCREW-THROTTLE STOP

16021-1114

$129.22

92001

BOLT,THROTTLE ADJUST

92001-1998

$16.94

92005

FITTING,FUEL,T-TYPE

92005-1108

$25.80

92005A

FITTING,FUEL,I-TYPE

92005-1109

$33.74

92005B

FITTING,FUEL,T-TYPE

92005-1112

$14.10

92005C

FITTING,T-TYPE

92005-1135

$24.61

92005D

FITTING,T-TYPE

92005-1125

$25.81

92009

SCREW,6X16

92009-1129

Unavailable

92009A

SCREW

92009-1262

$6.61

92009B

SCREW,5X10

92009-1365

$7.34

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$4.60

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

$5.00

92037

CLAMP,FUEL TUBE

92037-1075

$3.96

92037A

CLAMP,TUBE

92037-1194

$6.15

92037B

CLAMP,TUBE

92037-1477

$4.31

92037B

CLAMP,TUBE

92037-1477

$4.31

92055

RING-O

92055-1004

$4.31

92055A

RING-O

92055-1223

$5.52

92059

TUBE,FUEL,7.3X12.5X200

92059-1029

$30.56

92059A

TUBE,5X9X200

92059-1173

$25.03

92059B

TUBE,6.5X9.5X290

92059-1376

$33.38

92059C

TUBE,7X11X260

92059-1639

$27.08

92059E

TUBE,5X9X90

92059-1627

$11.40

92059F

TUBE,5X9X120

92059-1713

$25.03

92059G

TUBE

92059-1735

Unavailable

92081

SPRING,THROTTLE STOP SCREW

92081-1617

$6.11

92081A

SPRING

92081-1620

$4.96

92081B

SPRING,THROTTLE ADJUST LWR

92081-1621

$5.18

92081C

SPRING,THROTTLE ADJUST CNT

92081-1622

$10.67

92081D

SPRING,STARTER LEVER

92081-1913

$24.32

223

SCREW-PAN-WS-CROS,5X10

223C0510

$4.12

223A

SCREW-PAN-WS-CROS,4X10

223D0410

Unavailable

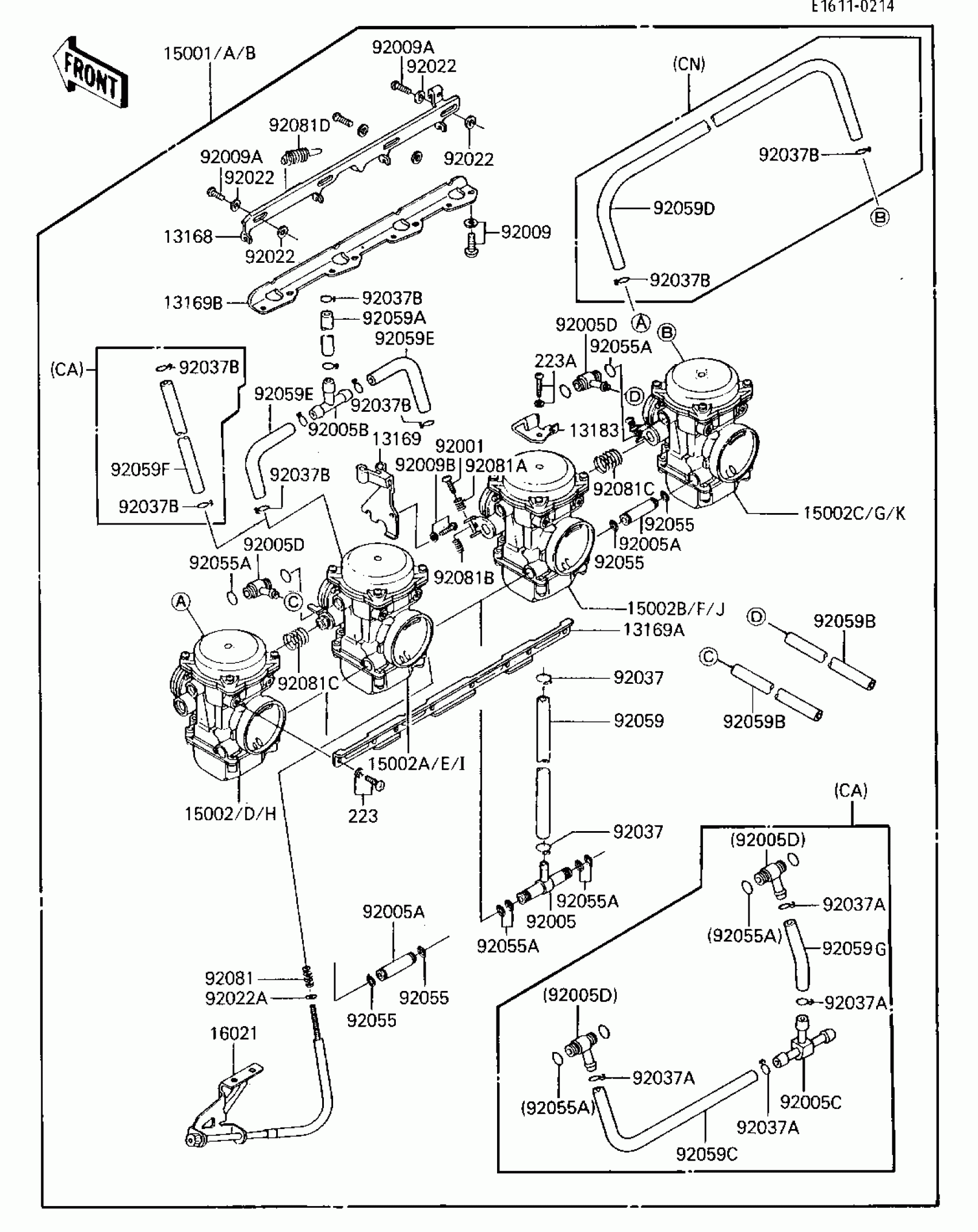

Kawasaki ZL600 Eliminator CARBURETOR ASSY Diagram

LEVER,DL

PLATE,THROTTLE CABLE

PLATE,CARBURETOR STAY,UPP

PLATE,CARBURETOR STAY,LWR,6MM

PLATE,STARTER CABLE

CARBURETOR-ASSY

CARBURETOR-ASSY

CARBURETOR,LH,OUTSIDE

CARBURETOR,LH,INSIDE

CARBURETOR,RH,INSIDE

CARBURETOR,RH,OUTSIDE

CARBURETOR

CARBURETOR

CARBURETOR

CARBURETOR

SCREW-THROTTLE STOP

BOLT,THROTTLE ADJUST

FITTING,FUEL,T-TYPE

FITTING,FUEL,I-TYPE

FITTING,FUEL,T-TYPE

FITTING,T-TYPE

FITTING,T-TYPE

SCREW,6X16

SCREW

SCREW,5X10

WASHER,6.1X11X0.8,POLYACETAL

WASHER,PLAIN,STOP SPRING

CLAMP,FUEL TUBE

CLAMP,TUBE

CLAMP,TUBE

CLAMP,TUBE

RING-O

RING-O

TUBE,FUEL,7.3X12.5X200

TUBE,5X9X200

TUBE,6.5X9.5X290

TUBE,7X11X260

TUBE,5X9X90

TUBE,5X9X120

TUBE

SPRING,THROTTLE STOP SCREW

SPRING

SPRING,THROTTLE ADJUST LWR

SPRING,THROTTLE ADJUST CNT

SPRING,STARTER LEVER

SCREW-PAN-WS-CROS,5X10

SCREW-PAN-WS-CROS,4X10
