Description

Price

11009

GASKET,TAIL LAMP LENS

11009-1524

$7.24

14024

COVER,LICENSE LAMP

14025-1725

$18.40

14024A

COVER,LICENSE LAMP

14025-1728

$58.37

23016

LAMP-ASSY,LICENSE

23016-1075

$182.68

23025

LAMP-TAIL

23025-1153

$192.39

23026

LENS,LICENSE LAMP

23026-1064

$26.12

23026A

LENS,TAIL LAMP

23026-1068

Unavailable

23027

BODY-COMP-TAIL LAMP

23027-1078

$192.39

23035

REFLECTOR-LAMP,LICENSE

23035-1060

$23.41

23036

BRACKET-TAIL LAMP

23036-1105

$32.40

28005

BODY-LAMP,LICENSE

28005-1051

$27.90

92009

SCREW,TAPPING,4X30

92009-1056

$4.38

92009A

SCREW,TAPPING,5X40

92009-1263

$3.92

92009B

SCREW,TAPPING,4X20

92009-1378

$4.10

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92027

COLLAR,L=13.1

92027-251

Unavailable

92069

BULB,12V 27/8W

92069-059

$8.12

92069A

BULB,12V 8W

92069-1012

$5.18

92075

DAMPER

92075-035

$4.60

92075A

DAMPER,LICENSE LAMP

92075-1676

$9.89

92075B

DAMPER,10X24X12

92075-1690

$5.00

92075C

DAMPER,LICENSE LAMP

92075-1694

$24.57

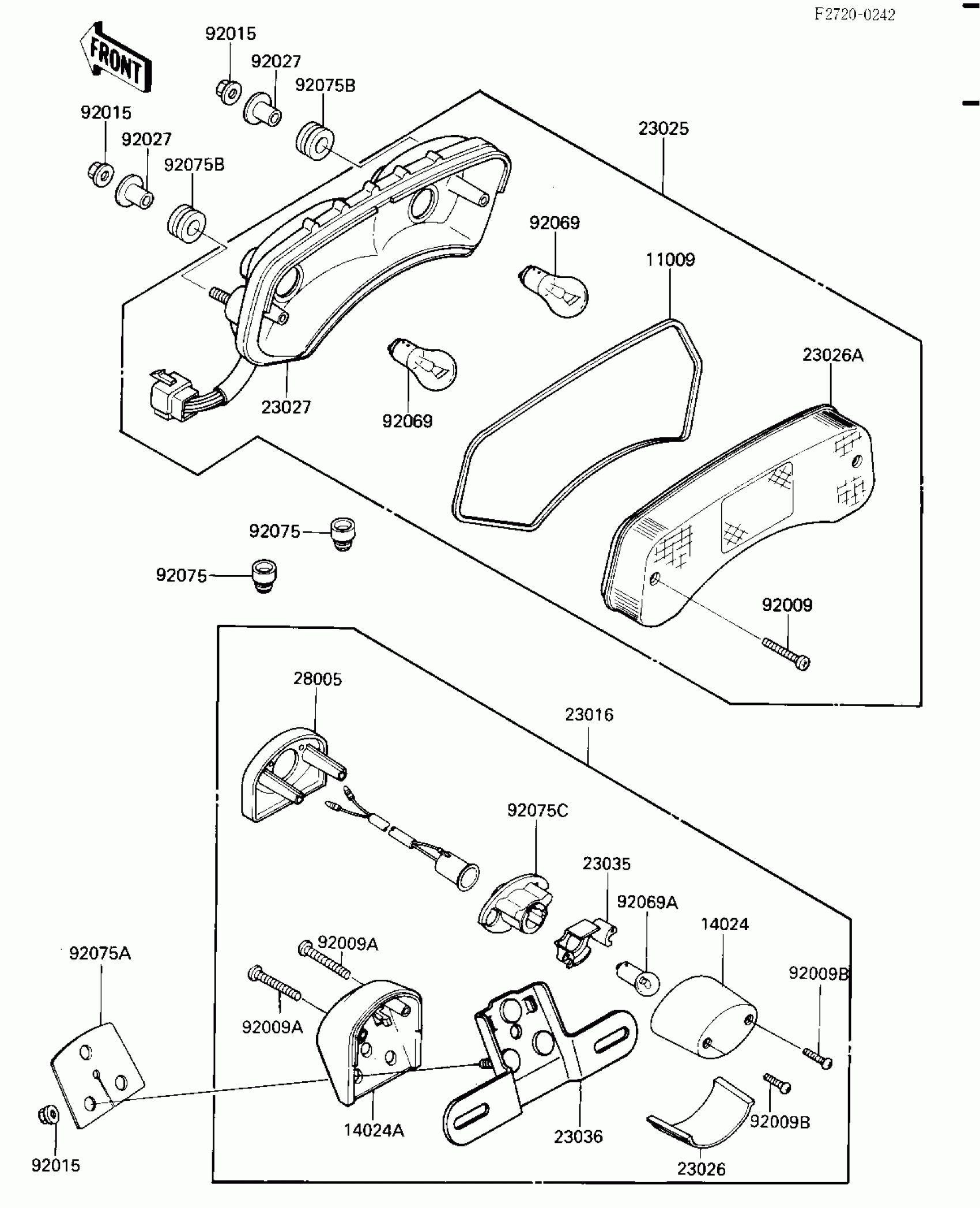

Kawasaki ZL1000 Eliminator TAILIGHT Diagram

GASKET,TAIL LAMP LENS

COVER,LICENSE LAMP

COVER,LICENSE LAMP

LAMP-ASSY,LICENSE

LAMP-TAIL

LENS,LICENSE LAMP

LENS,TAIL LAMP

BODY-COMP-TAIL LAMP

REFLECTOR-LAMP,LICENSE

BRACKET-TAIL LAMP

BODY-LAMP,LICENSE

SCREW,TAPPING,4X30

SCREW,TAPPING,5X40

SCREW,TAPPING,4X20

NUT,FLANGED,6MM

COLLAR,L=13.1

BULB,12V 27/8W

BULB,12V 8W

DAMPER

DAMPER,LICENSE LAMP

DAMPER,10X24X12

DAMPER,LICENSE LAMP
