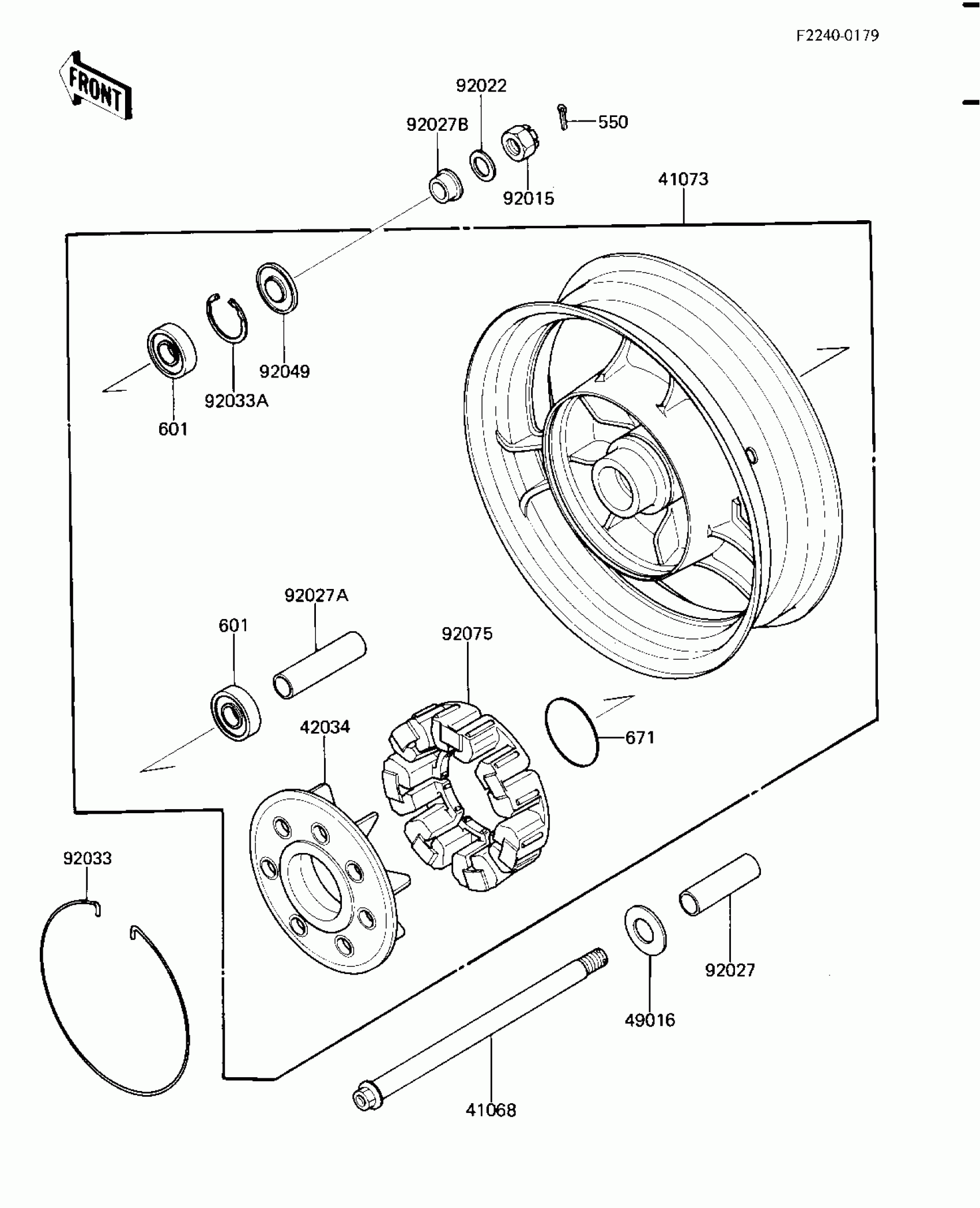

Kawasaki ZL1000 Eliminator REAR WHEEL/HUB Diagram

Description

Price

41068

AXLE,RR

41068-1197

$120.19

41073

WHEEL-ASSY,RR,SILVER

41073-1316-T7

$657.52

42034

COUPLING,RR HUB

42034-1011

$283.07

49016

COVER-SEAL

49016-1019

$8.53

92015

NUT,CASTLE,18MM

42045-018

$7.01

92022

WASHER,21X33X2.6

42046-003

$3.85

92027

COLLAR,20.2X28X89

92027-1553

$30.75

92027A

COLLAR,20.2X28X105.5

92027-1901

$40.28

92027B

COLLAR,RR AXLE,L=21.5

92027-1902

$23.73

92033

RING-SNAP

92033-1019

$15.64

92033A

RING-SNAP,52MM

92033-1043

$6.15

92049

SEAL-OIL,28X52X5

92049-1061

$16.11

92075

DAMPER,SHOCK,RR HUB

92075-1121

$144.96

550

PIN-COTTER,4.0X35

550D4035

$1.57

601

BEARING-BALL,#6304ZZC3

601B6304ZZ

Unavailable

671

O RING,80MM

671B2580

$5.12
