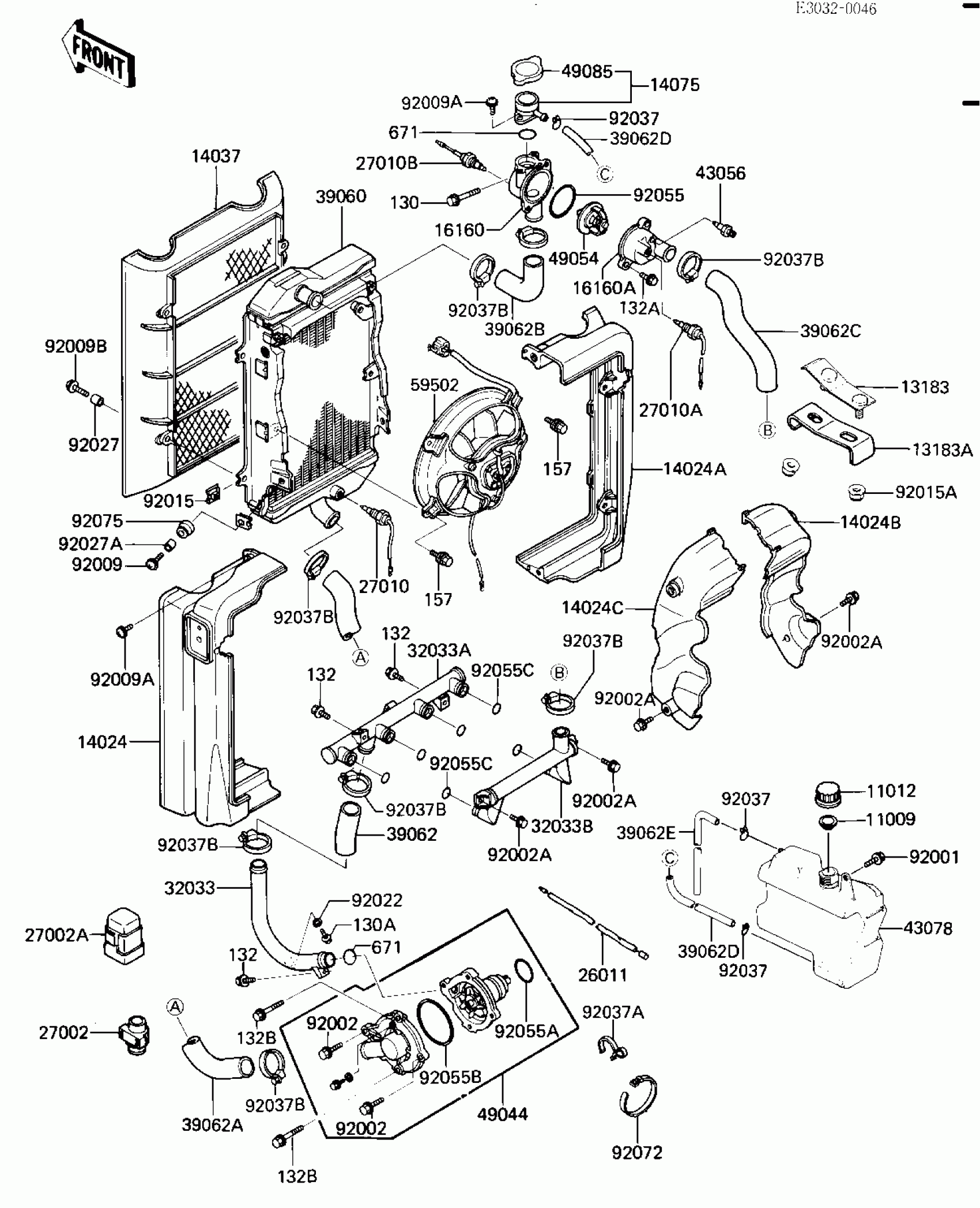

Kawasaki ZL1000 Eliminator RADIATOR/FAN/WATER PUMP Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

13183

PLATE

13183-1016

Unavailable

13183A

PLATE

13183-1053

Unavailable

14024

COVER,SCREEN,LH

14024-1070

Unavailable

14024A

COVER,SCREEN,RH

14024-1071

Unavailable

14024B

COVER,RH

14024-1073

Unavailable

14024C

COVER,LH

14024-1118

Unavailable

14037

SCREEN

14037-1074

Unavailable

14075

CAP-ASSY,RADIATOR

14075-1062

$140.62

16160

BODY,THERMOSTAT

16160-1098

$131.46

16160A

BODY,THERMOSTAT

16160-1099

Unavailable

26011

WIRE-LEAD,OIL TEMPERA

26011-1318

$6.80

27002

RELAY-ASSY

27002-1054

Unavailable

27002A

RELAY-ASSY

27002-1055

$77.33

27010

SWITCH,FAN

27010-1180

$136.95

27010A

SWITCH,WARNING

27010-1188

Unavailable

27010B

SWITCH,OIL TEMPERATUR

27010-1191

Unavailable

32033

PIPE-WATER

39192-1028

$116.13

32033A

PIPE

32033-1262

$145.80

32033B

PIPE

32033-1712

Unavailable

39060

RADIATOR

39060-1064

$988.38

39062

HOSE-COOLING

39062-1072

$18.15

39062A

HOSE-COOLING

39062-1126

Unavailable

39062B

HOSE-COOLING

39062-1127

Unavailable

39062C

HOSE-COOLING

39062-1128

Unavailable

39062D

HOSE-COOLING,L=997

39062-1194

$21.40

39062E

HOSE-COOLING,L=447

39062-1195

$21.40

43056

BREATHER

43056-003

$19.94

43078

RESERVOIR

43078-1077

$70.80

49044

PUMP-WATER

49044-1058

Unavailable

49054

THERMOSTAT

49054-1051

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1053

$33.19

59502

FAN-ASSY

59502-1061

$779.27

92001

BOLT,W/WASHER,6X12

92001-1516

$4.42

92002

BOLT,6X22

92002-1392

$4.19

92002A

BOLT,6X14

92002-1550

Unavailable

92009

SCREW

92009-1664

$3.43

92009A

SCREW,6X14

92009-1288

$2.99

92009B

SCREW,6X28,BLACK

92009-1400

$4.18

92015

NUT

92015-1487

$3.64

92015A

NUT,LOCK,FLANGED,6MM

92015-1603

$3.57

92022

WASHER,6.2X11X1

92022-304

$2.76

92027

COLLAR,6.8X10X11.5

92027-1210

$7.83

92027A

COLLAR

92027-1945

Unavailable

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,HOSE

92037-1552

$9.63

92037B

CLAMP,COOLING HOSE

92037-1985

$6.25

92055

RING-O,53.5X2.6

92055-112

$4.97

92055A

RING-O,33.8MM

92055-1266

$16.54

92055B

RING-O,WATER PUMP

92055-1271

$8.42

92055C

RING-O

92055-1282

$3.98

92072

BAND,L=186

92072-056

$3.81

92075

DAMPER

92075-1773

Unavailable

130

BOLT-FLANGED,6X50

130B0650

Unavailable

130A

BOLT-FLANGED

130J0610

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

132B

BOLT-FLANGED-SMALL,6X40

132J0640

Unavailable

157

BOLT-WSP

157J0612

$2.31

671

O RING,25MM

671B2525

$3.81
