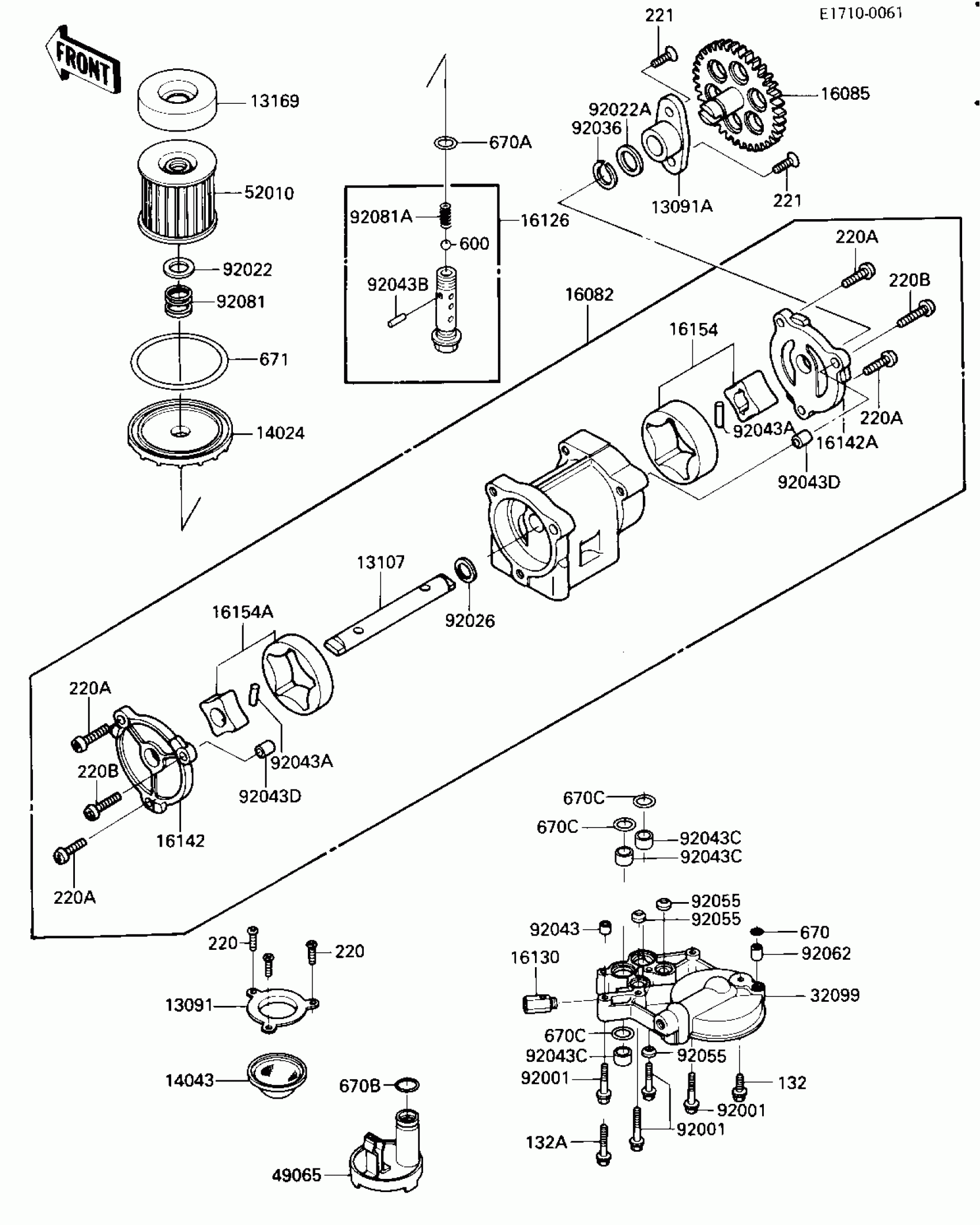

Kawasaki ZL1000 Eliminator OIL PUMP/OIL FILTER Diagram

#

Description
Price

13091

HOLDER,OIL FILTER

13091-1274

$13.64

13091A

HOLDER,PUMP GEAR

13091-1333

$32.61

13107

SHAFT,OIL PUMP

13107-1105

Unavailable

13169

PLATE,OIL FILTER

13169-1313

$10.25

14024

COVER,OIL FILTER,F.BLACK

14025-1422

$39.50

14043

FILTER,OIL

16111-003

$19.41

16082

PUMP-ASSY-OIL

16082-1060

$287.60

16085

GEAR,OIL PUMP,35T

16085-1103

$124.66

16126

VALVE,OIL FILTER

16126-1108

$37.32

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

16142

COVER-PUMP,LH

16142-1052

$47.09

16142A

COVER-PUMP,RH

16142-1054

$47.09

16154

ROTOR-PUMP,SCAVENGE,T=16

16154-1007

$71.51

16154A

ROTOR-PUMP

16154-1053

$70.27

32099

CASE,OIL FILTER

32099-1083

$123.57

49065

FILTER-OIL

49065-1066

$34.62

52010

ELEMENT-OIL FILTER

16099-003

$9.28

92001

BOLT,FLANGED,6X38

92001-1105

$3.57

92022

WASHER,20.5X30X1

92022-1012

$3.32

92022A

WASHER,14X20X1

92022-1495

$3.85

92026

SPACER,OIL PUMP

92026-1230

$3.98

92036

RING-SNAP,PUMP GEAR

92036-1052

$5.37

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043A

PIN,DOWEL,5X17.8

92043-1061

$4.34

92043B

PIN,SPRING,2X20

92043-111

$5.46

92043C

PIN,18X20X12

92043-1213

$5.46

92043D

PIN,DOWEL,8X10

92043-1302

$0.84

92055

RING-O,19.5MM

92055-077

$4.47

92062

NOZZLE

92062-1055

$7.31

92081

SPRING,OIL FILTER

92081-1018

$3.54

92081A

SPRING

92081-109

$10.85

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

132A

BOLT-FLANGED-SMALL,6X45

132G0645

Unavailable

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

220A

SCREW-PAN-CROS,6X14

220B0614

$1.14

220B

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

221

SCREW-CSK-CROS,6X16

221B0616

$0.54

600

BALL-STEEL,3/8"

600A1200

$1.14

670

O RING,8MM

670B1508

$1.00

670A

O RING,16MM

670B2016

$1.04

670B

O RING,18MM

670B2018

$1.08

670C

O RING,20MM

670D2020

$4.67

671

O RING,90MM

671B2590

$7.54
