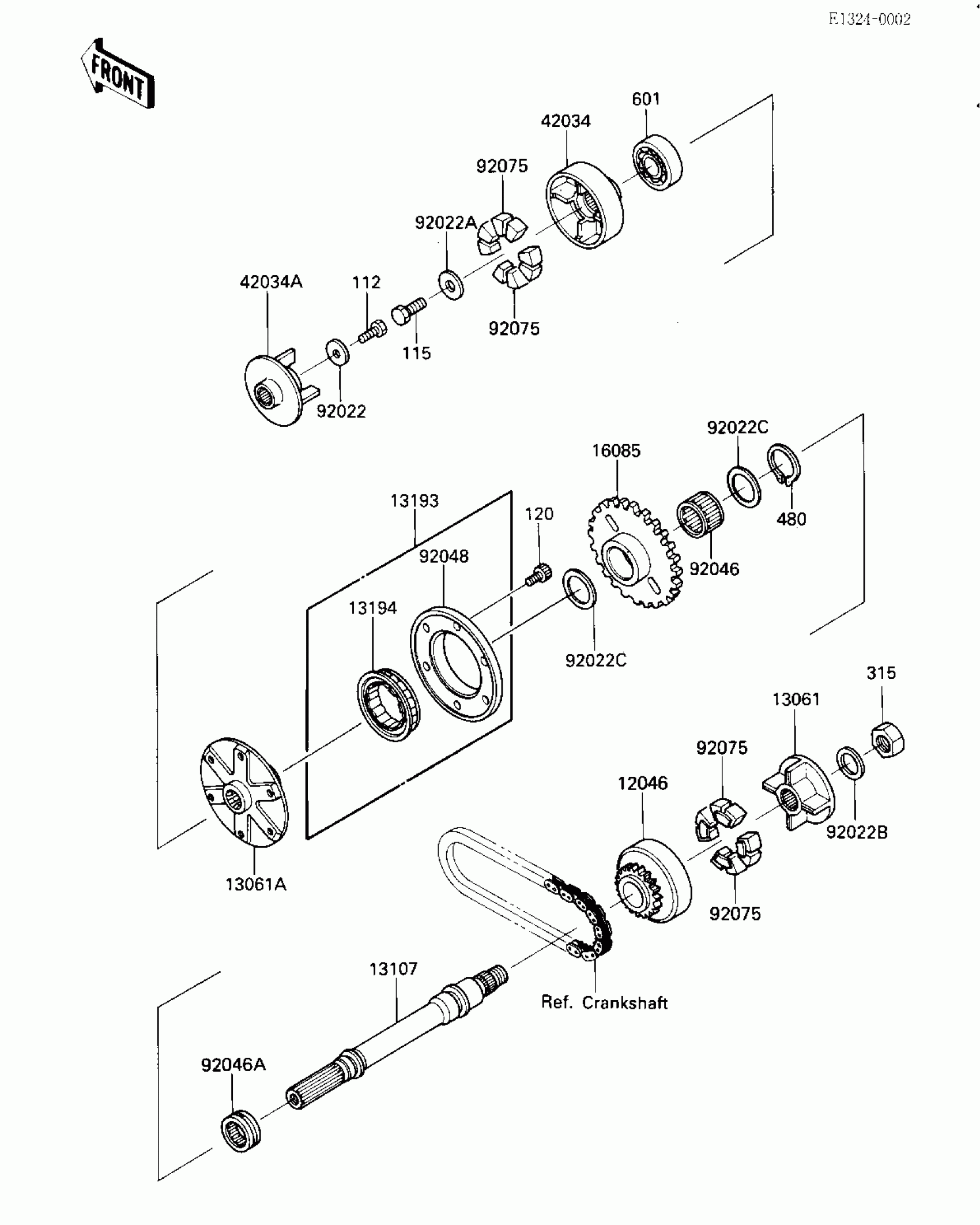

Kawasaki ZL1000 Eliminator GENERATOR SHAFT/STARTER CLUTCH Diagram

Description

Price

12046

SPROCKET,GENERATOR

12046-1068

Unavailable

13061

BOSS,SPROCKET

13061-1111

Unavailable

13061A

BOSS,COUPLING

13061-1191

Unavailable

13107

SHAFT

13107-1108

$204.72

13193

CLUTCH-ASSY-ONEWAY

13193-1057

Unavailable

13194

CLUTCH-ONEWAY

13194-1067

Unavailable

16085

GEAR,ONEWAY CLUTCH

16085-1173

$118.87

42034

COUPLING

42034-1055

$83.37

42034A

COUPLING

42034-1056

$75.76

92022

WASHER,6X19.5X2

92022-1517

$2.33

92022A

WASHER,8X22X3

92022-1518

$4.43

92022B

WASHER,16X26X2

92022-1519

$5.57

92022C

WASHER,25.3X32X0.5

92022-225

$5.52

92046

BEARING-NEEDLE,K253020S

92046-1022

$22.97

92046A

BEARING-NEEDLE,RNA4903

92046-1109

$46.27

92048

RACE,ONEWAY CLUTCH

92048-1065

$78.73

92075

DAMPER,COUPLING

92075-1790

$9.59

112

BOLT-UPSET,6X16

112G0616

$1.10

115

BOLT,8X20

115G0820

$5.14

120

BOLT-SOCKET,6X12

120P0612

$1.60

315

NUT-HEX-FINE

315G1600

$4.37

480

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

601

BEARING-BALL,#6203

601A6203

$14.12
