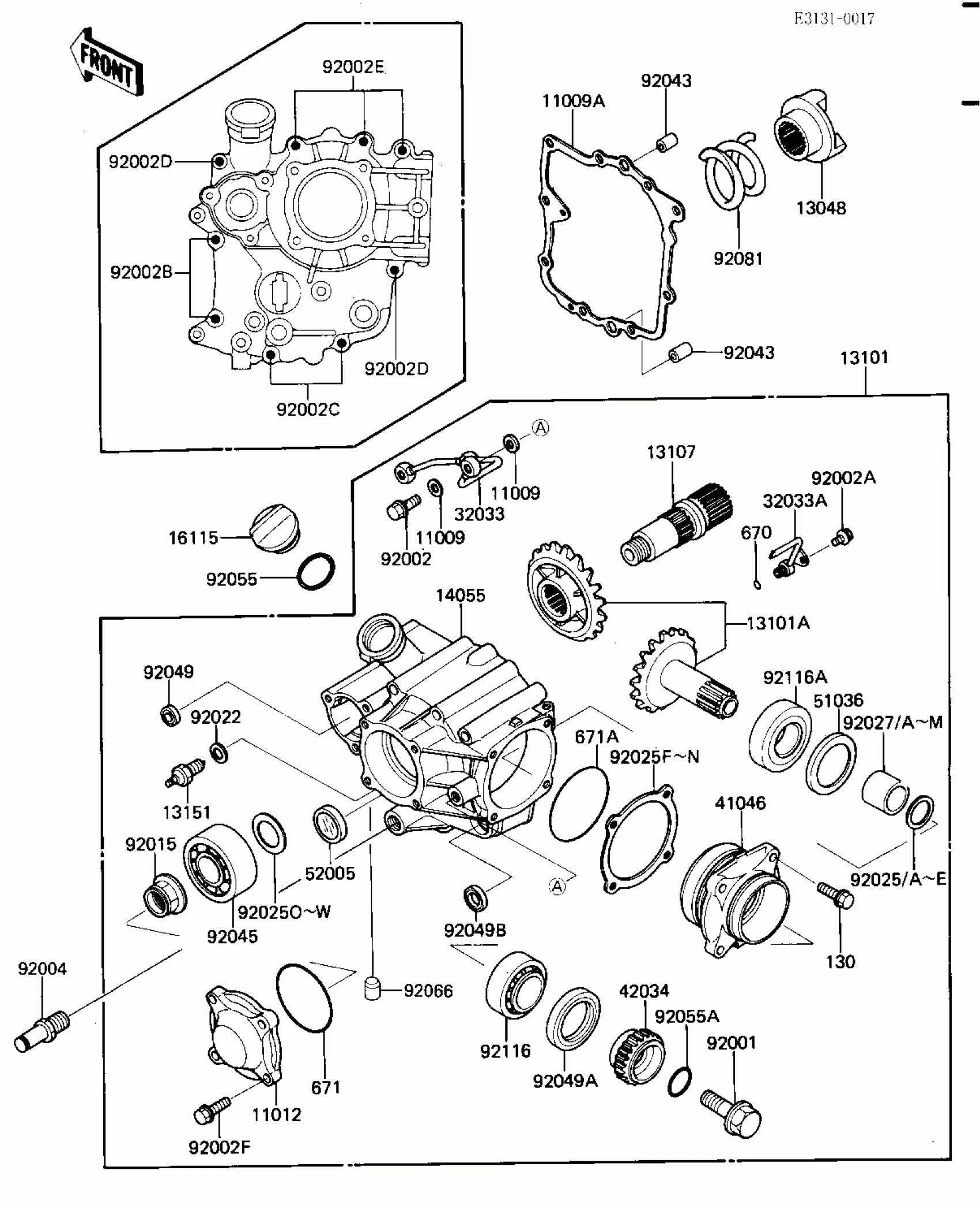

Kawasaki ZL1000 Eliminator FRONT BEVEL GEARS Diagram

#

Description
Price

11009

GASKET,8.2X14X1.0

11009-1344

$3.17

1109A

GASKET,BEVEL GEAR CASE,FR

11009-1532

Unavailable

11012

CAP,BEARING

11012-1477

Unavailable

13048

CAM-DAMPER

13048-1069

$121.16

13101

GEAR-ASSY

13101-1113

Unavailable

13101A

GEAR-ASSY,FRONT BEVEL

13101-5050

Unavailable

13107

SHAFT,BEVEL GEAR,FR

13107-1190

$245.15

13151

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

14055

CASE-GEAR,BEVEL,FR

14055-1065

$966.52

16115

CAP-OIL FILLER

16115-1009

$14.30

32033

PIPE,OIL

32033-1706

$72.14

32033A

PIPE,OIL

32033-1707

$30.79

41046

HOUSING-BEARING

41046-1067

$214.76

42034

COUPLING,FR DRIVEN

42034-1091

$127.52

51036

CUP

51036-1002

$6.22

52005

GAUGE,OIL LEVEL

52005-1057

$25.24

92001

BOLT,FLANGED,12X42

92001-1169

$22.29

92002

BOLT,8X20

92002-1429

$11.07

92002A

BOLT,6X10

92002-1449

$4.11

92002B

BOLT,FLANGED,6X25

92002-1582

$4.69

92002C

BOLT,6X50

92002-1583

$3.32

92002D

BOLT,FLANGED,6X60

92002-1584

$5.88

92002E

BOLT,6X10.5

92002-1585

$4.33

92002F

BOLT,6X25

92002-1612

$5.05

92004

STUD

92004-1109

$20.79

92015

NUT

92015-1543

$19.66

92022

GASKET,10.5X16X1

92065-058

$3.96

92025

SHIM,25.2X29.8X1.70

92025-1072

Unavailable

92025A

SHIM,25.2X29.8X1.72

92025-1073

Unavailable

92025B

SHIM,25.2X29.8X1.74

92025-1074

Unavailable

92025C

SHIM,25.2X29.8X1.76

92025-1075

Unavailable

92025D

SHIM,25.2X29.8X1.78

92025-1076

Unavailable

92025E

SHIM,25.2X29.8X1.80

92025-1077

Unavailable

92025F

SHIM,T=0.10

92025-1606

Unavailable

92025G

SHIM,T=0.15

92025-1607

Unavailable

92025H

SHIM,T=0.50

92025-1608

Unavailable

92025I

SHIM,T=0.60

92025-1609

Unavailable

92025J

SHIM,T=0.70

92025-1610

Unavailable

92025K

SHIM,T=0.80

92025-1611

Unavailable

92025L

SHIM,T=0.90

92025-1612

Unavailable

92025M

SHIM,T=1.00

92025-1613

Unavailable

92025N

SHIM,T=1.20

92025-1614

Unavailable

92025O

SHIM,25.3X36X0.15

92025-1688

Unavailable

92025P

SHIM,25.3X36X0.50

92025-1689

Unavailable

92025Q

SHIM,25.3X36X0.60

92025-1690

Unavailable

92025R

SHIM,25.3X36X0.70

92025-1691

Unavailable

92025S

SHIM,25.3X36X0.80

92025-1692

Unavailable

92025T

SHIM,25.3X36X0.90

92025-1693

Unavailable

92025U

SHIM,25.3X36X1.00

92025-1694

Unavailable

92025V

SHIM,25.3X36X1.10

92025-1695

Unavailable

92025W

SHIM,25.3X36X1.20

92025-1696

Unavailable

92027

COLLAR,25.2X29.8X22.8

92027-1152

Unavailable

92027A

COLLAR,25.2X29.8X22.9

92027-1153

Unavailable

92027B

COLLAR,25.2X29.8X23

92027-1154

Unavailable

92027C

COLLAR,25.2X29.8X23.1

92027-1155

Unavailable

92027D

COLLAR,25.2X29.8X23.2

92027-1156

Unavailable

92027E

COLLAR,25.2X29.8X23.3

92027-1157

Unavailable

92027F

COLLAR,25.2X29.8X23.4

92027-1158

Unavailable

92027G

COLLAR,25.2X29.8X23.5

92027-1159

Unavailable

92027H

COLLAR,25.2X29.8X23.6

92027-1160

Unavailable

92027I

COLLAR,25.2X29.8X23.7

92027-1161

Unavailable

92027J

COLLAR,25.2X29.8X23.8

92027-1162

Unavailable

92027K

COLLAR,25.2X29.8X23.9

92027-1163

Unavailable

92027L

COLLAR,25.2X29.8X24

92027-1164

Unavailable

92027M

COLLAR,25.2X29.8X24.1

92027-1165

Unavailable

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92045

BEARING-BALL

92045-1160

$128.34

92049

SEAL-OIL,SD-8187

92049-1017

$9.89

92049A

SEAL-OIL,TC35527

92049-1038

$17.95

92049B

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

RING-O,ID=18.64

92055-1044

$4.78

92066

PLUG,OIL LINE,7.2X8

92066-1012

$6.51

92081

SPRING,CAM DAMPER

92081-1859

$61.04

92116

BEARING-ROLLER,4T30205

92116-1003

$36.32

92116A

BEARING-ROLLER,4T30305

92116-1006

$43.69

130

BOLT-FLANGED,6X25

130S0625

$3.84

670

O RING,6MM

670B1506

$1.28

671

O RING,65MM

671B2565

$8.86

671A

O RING,70MM

671B2570

$7.62
