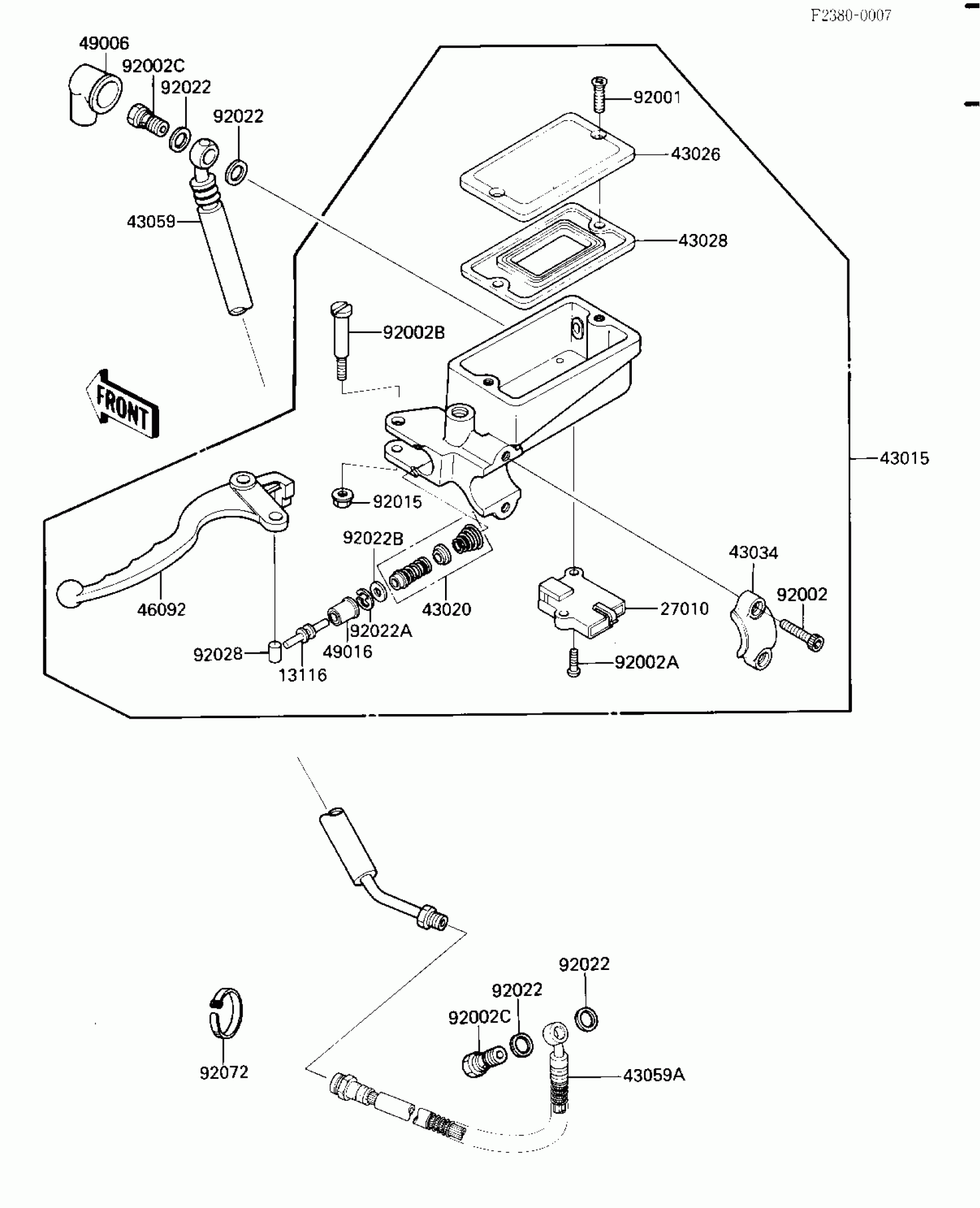

Kawasaki ZL1000 Eliminator CLUTCH MASTER CYLINDER Diagram

Description

Price

13116

ROD-PUSH,MASTER CYLINDER

13116-1110

$32.77

27010

SWITCH,CLUTCH

27010-1171

$36.01

43015

CYLINDER-ASSY-MASTER,

43015-1306

Unavailable

43020

PISTON-COMP-BRAKE,CLUTCH

43020-1055

$65.22

43026

CAP-BRAKE,FR

43026-1052

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$22.90

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1054

$35.87

43059

HOSE-BRAKE

43059-1309

Unavailable

43059A

HOSE-BRAKE,CLUTCH

43059-1357

Unavailable

46092

LEVER-GRIP,CLUTCH

46092-1129

Unavailable

49006

BOOT,DUST

49006-1041

$11.49

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92001

SCREW,5MM,BLACK

92001-1727

$4.11

92002

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.65

92002A

SCREW,4X16

92002-1325

$7.99

92002B

BOLT,LEVER SET

92002-1561

$11.71

92002C

BOLT

92002-1593

$5.48

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92022A

CIRCLIP

92022-1605

$5.00

92022B

WASHER,PISTON

92022-1606

$4.69

92028

BUSHING,MASTER CYLINDER

92028-1310

$14.76

92072

BAND,L=365

92072-1197

$7.84
