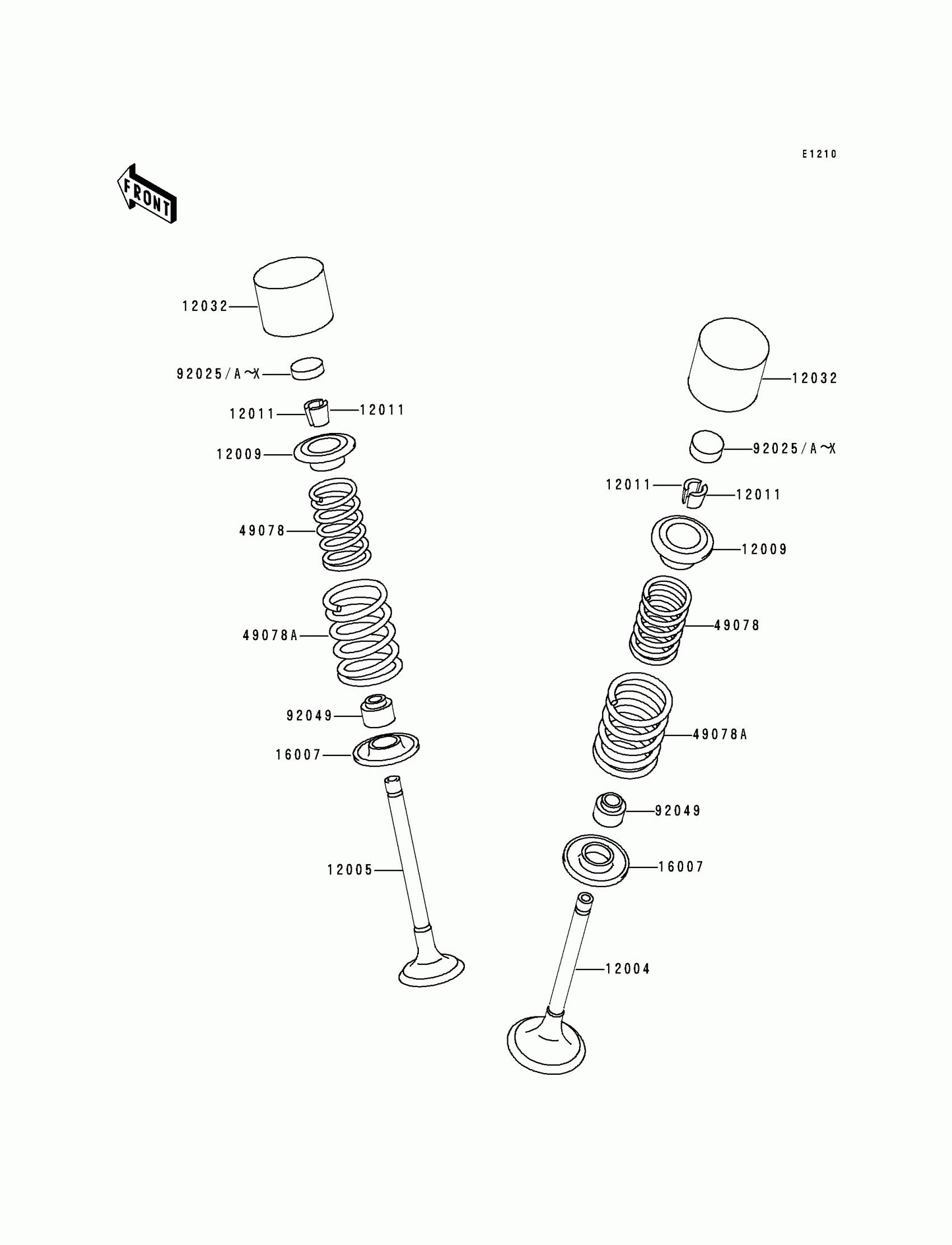

Kawasaki Zephyr Valve Diagram
#
12004
VALVE-INTAKE
12004-1016
$47.38
12005
VALVE-EXHAUST
12005-1013
$77.96
12009
RETAINER-VALVE SPRING
12009-1002
Unavailable
12011
COLLET
12011-1003
$4.65
12032
TAPPET
12032-1001
Unavailable
16007
SEAT-SPRING,VALVE
16007-1024
$6.51
49078
SPRING-ENGINE VALVE,INNER
49078-1001
$16.56
49078A
SPRING-ENGINE VALVE,OUTER
49078-1002
$16.56
92025
SHIM,T=2.00
92025-1090
Unavailable
92025A
SHIM,T=2.05
92025-1091
Unavailable
92025B
SHIM,T=2.10
92025-1092
Unavailable
92025C
SHIM,T=2.15
92025-1093
Unavailable
92025D
SHIM,T=2.20
92025-1094
Unavailable
92025E
SHIM,T=2.25
92025-1095
Unavailable
92025F
SHIM,T=2.30
92025-1096
Unavailable
92025G
SHIM,T=2.35
92025-1097
Unavailable
92025H
SHIM,T=2.40
92025-1098
Unavailable
92025I
SHIM,T=2.45
92025-1099
Unavailable
92025J
SHIM,T=2.50
92025-1100
Unavailable
92025K
SHIM,T=2.55
92025-1101
Unavailable
92025L
SHIM,T=2.60
92025-1102
Unavailable
92025M
SHIM,T=2.65
92025-1103
Unavailable
92025N
SHIM,T=2.70
92025-1104
Unavailable
92025O
SHIM,T=2.75
92025-1105
Unavailable
92025P
SHIM,T=2.80
92025-1106
Unavailable
92025Q
SHIM,T=2.85
92025-1107
Unavailable
92025R
SHIM,T=2.90
92025-1108
Unavailable
92025S
SHIM,T=2.95
92025-1109
Unavailable
92025T
SHIM,T=3.00
92025-1110
Unavailable
92025U
SHIM,T=3.05
92025-1111
Unavailable
92025V
SHIM,T=3.10
92025-1112
Unavailable
92025W
SHIM,T=3.15
92025-1113
Unavailable
92025X
SHIM,T=3.20
92025-1114
Unavailable
92049
SEAL-OIL,VALVE STEM
92049-1153
$12.14
