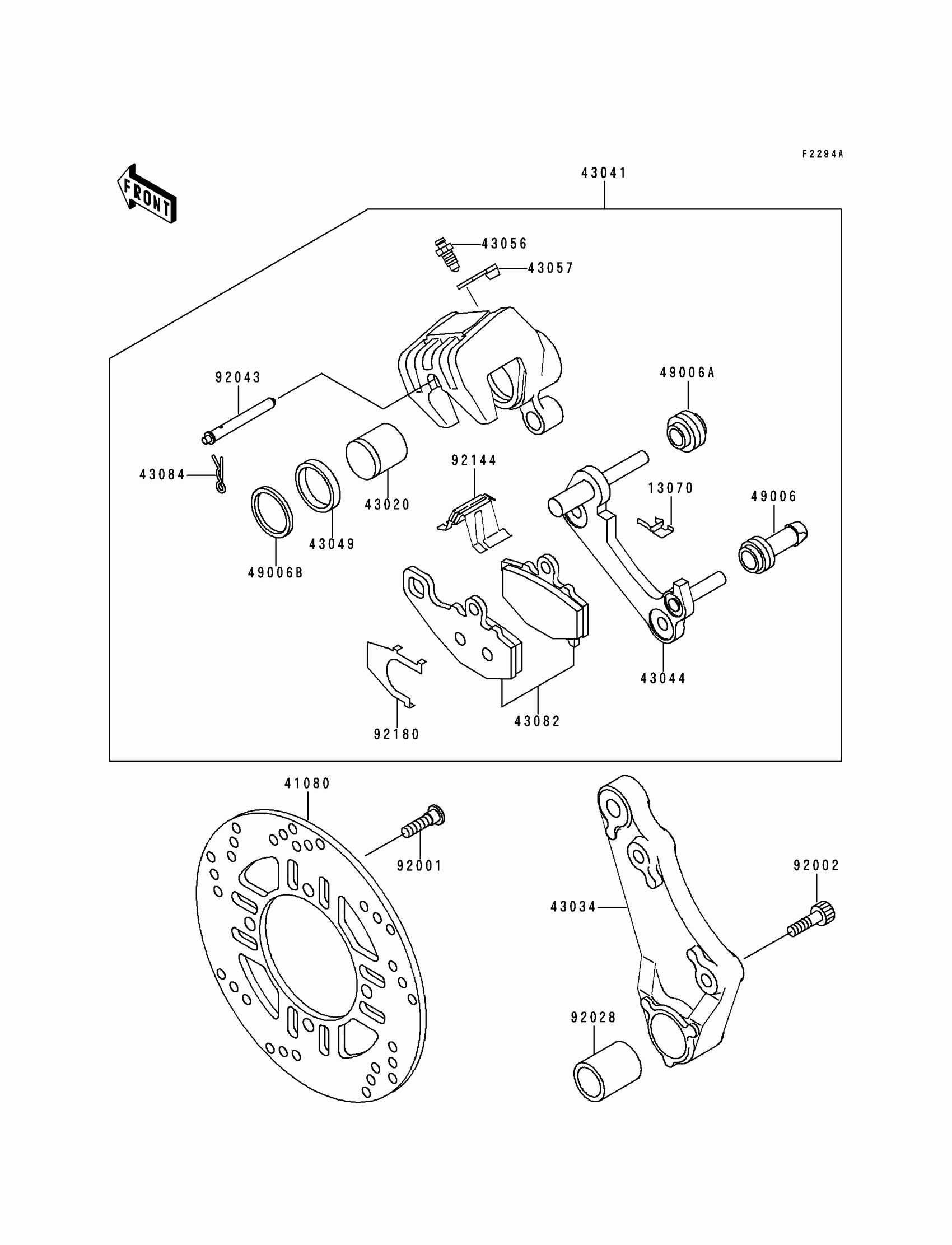

Kawasaki Zephyr Rear Caliper(ZR550-B4) Diagram

Description

Price

13070

GUIDE,BRAKE PAD

13070-1273

Unavailable

41080

DISC,RR,C.GRAY

41080-1255-FB

$309.78

43020

PISTON-COMP-BRAKE

43020-1097

$72.80

43034

HOLDER-BRAKE,REAR CALIPER

43034-1127

Unavailable

43041

CALIPER-ASSY,RR,M.F.GRAY

43041-1506-FE

Unavailable

43044

HOLDER-COMP-CALIPER,RR

43044-1110

$144.35

43049

PACKING,PISTON SEAL

43049-001

$11.06

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1148

Unavailable

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1095

$7.27

49006B

BOOT,PISTON SEAL

49006-1212

$23.25

92001

BOLT,DISC PLATE,8X30

92001-1951

$4.69

92002

BOLT,SOCKET,8X20

92002-1178

$5.05

92028

BUSHING

92028-1580

$12.37

92043

PIN,PAD

92043-1489

$6.57

92144

SPRING,PAD

92144-1719

$36.86

92180

SHIM,PAD

92180-1165

Unavailable
