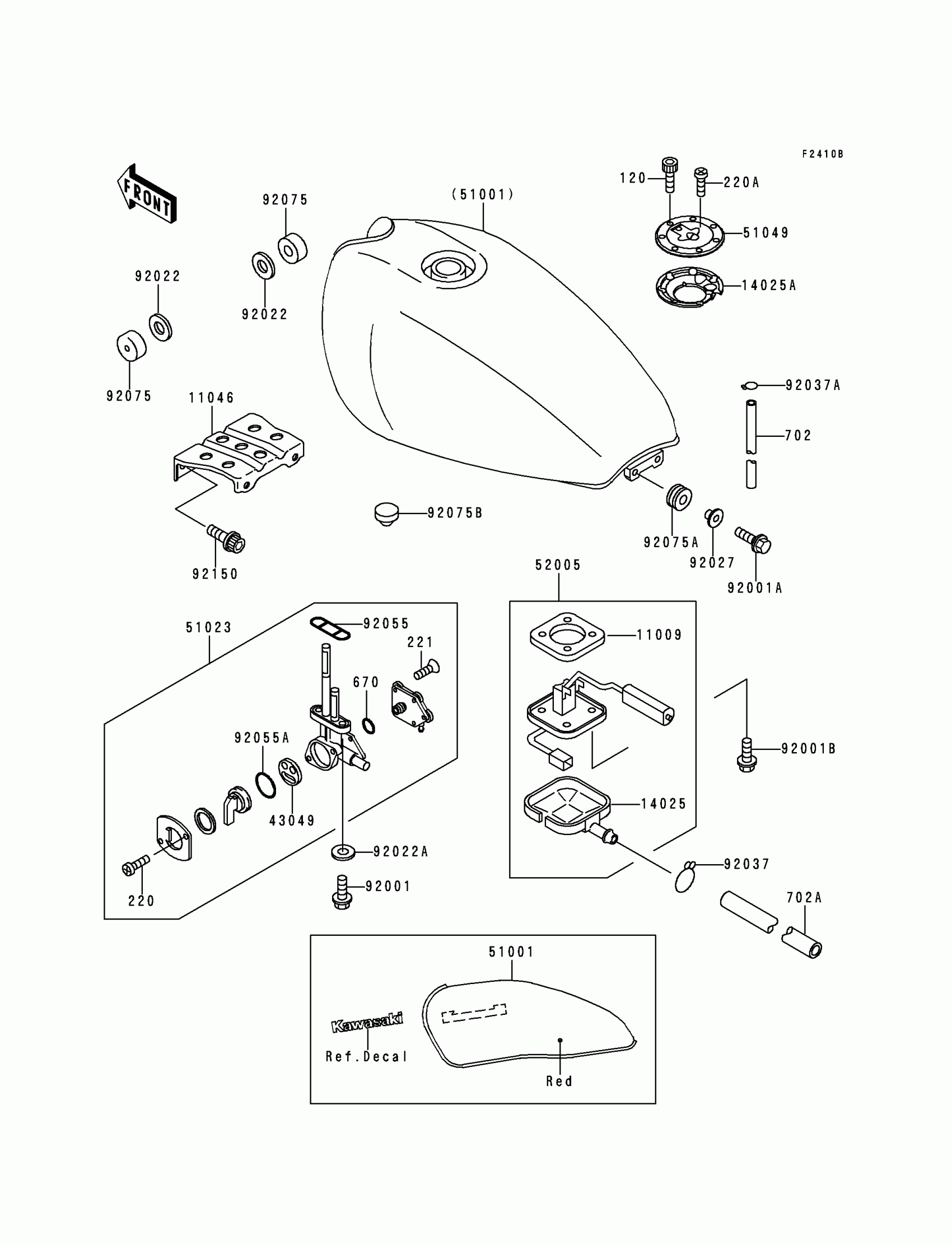

Kawasaki Zephyr Fuel Tank(ZR550-B4) Diagram

#

Description
Price

120

BOLT-SOCKET,5X12

120S0512

$1.71

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW-PAN-CROSS

220C0508

$0.55

221

SCREW-CSK-CROS,4X14

221B0414

$3.41

670

O RING,4MM

670B1504

$4.11

702

TUBE-RUBBER,7X10X600

702A07600

$13.38

702A

TUBE-RUBBER,7X10X860

702A07860

$13.38

11009

GASKET,FUEL GAUGE

11009-1656

Unavailable

11046

BRACKET,FUEL TANK

11046-1789

Unavailable

14025

COVER,FUEL GAUGE

14025-1536

Unavailable

14025A

COVER,TANK CAP

14025-1913

$21.55

43049

PACKING,TAP VALVE

43049-1066

$7.26

51001

TANK-COMP-FUEL,L.V.RED

51001-1345-P5

Unavailable

51023

TAP-ASSY,FUEL

51023-1166

$132.20

51049

CAP-TANK,FUEL

51049-1091

$115.45

52005

GAUGE,FUEL

52005-1099

Unavailable

92001

BOLT,6X20

92001-1091

$3.92

92001A

BOLT,6X25

92001-1524

$2.12

92001B

BOLT,FUEL GAUGE

92001-1705

Unavailable

92022

WASHER,10.5X26X2.3

92022-044

$3.92

92022A

WASHER-PLAIN

92022-183

$3.92

92027

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP

92037-1712

$5.00

92055

RING-O,FUEL TAP PACKING

92055-1112

$5.00

92055A

RING-O,TAP LEVER

92055-1419

$5.00

92075

DAMPER,FUEL TANK

92075-125

$6.22

92075A

DAMPER,10X24X12

92075-1690

$5.00

92075B

DAMPER

92075-1737

$8.58

92150

BOLT,SOCKET,8X20

92150-1155

$5.52
