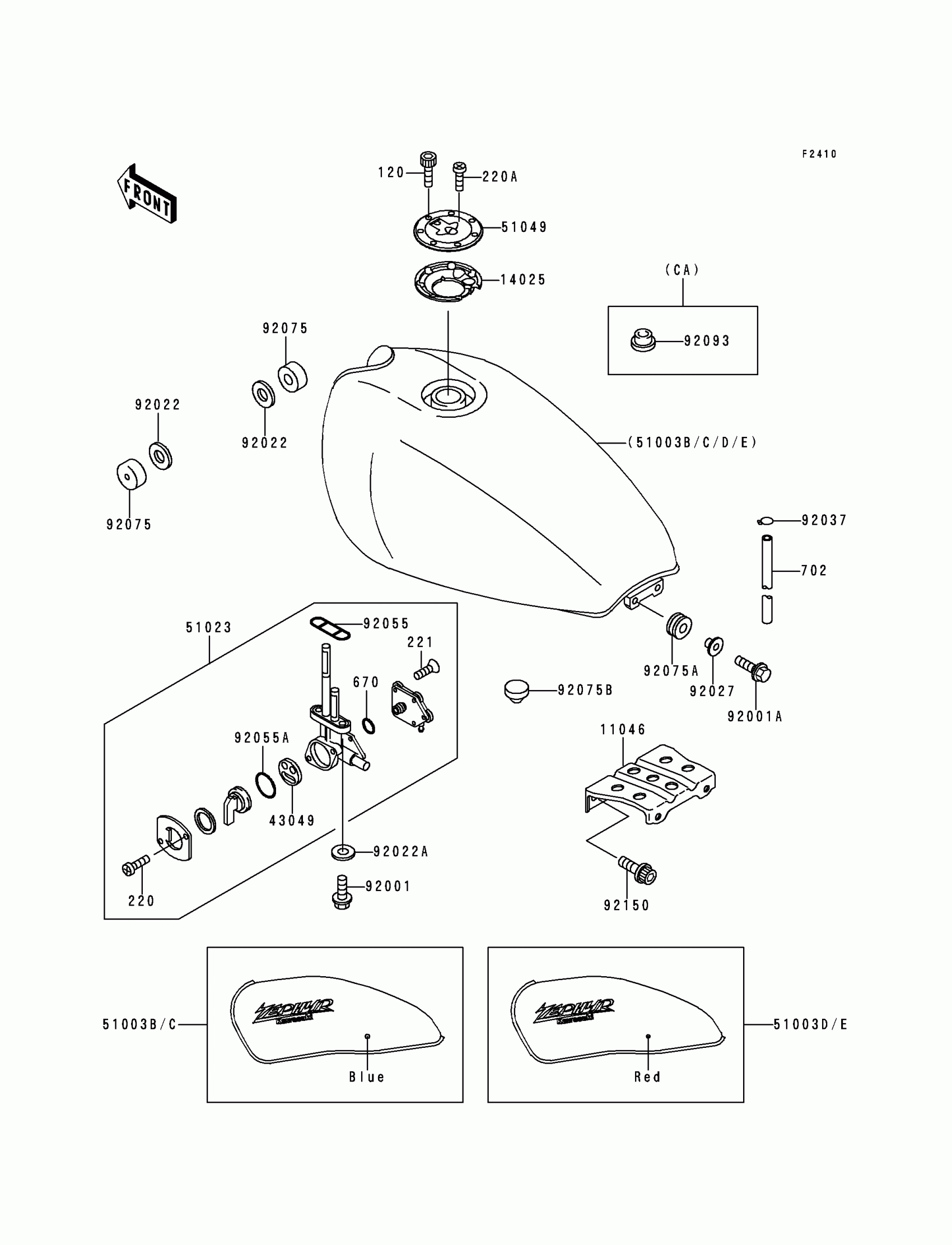

Kawasaki Zephyr Fuel Tank(ZR550-B1/B2) Diagram
#
Description
Price
120
BOLT-SOCKET,5X12
120S0512
$1.71
11046
BRACKET,FUEL TANK
11046-1789
Unavailable
14025
COVER,TANK CAP
14025-1913
$21.55
43049
PACKING,TAP VALVE
43049-1066
$7.26
51003B
TANK-COMP-FUEL,C.A.BLUE
51003-5175-FC
Unavailable
51003C
TANK-COMP-FUEL,C.A.BLUE
51003-5176-FC
$1,134.53
51003D
TANK-COMP-FUEL,C.C.RED
51003-5177-L1
$1,134.53
51003E
TANK-COMP-FUEL,C.C.RED
51003-5178-L1
$674.33
51023
TAP-ASSY,FUEL
51023-1166
$132.20
51049
CAP-TANK,FUEL
51049-1091
$115.45
92001
BOLT,6X20
92001-1091
$3.92
92001A
BOLT,6X25
92001-1524
$2.12
92022
WASHER,10.5X26X2.3
92022-044
$3.92
92022A
WASHER-PLAIN
92022-183
$3.92
92027
COLLAR,L=13.1
92027-251
Unavailable
92037
CLAMP
92037-1712
$5.00
92055
RING-O,FUEL TAP PACKING
92055-1112
$5.00
92055A
RING-O,TAP LEVER
92055-1419
$5.00
92075
DAMPER,FUEL TANK
92075-125
$6.22
92075A
DAMPER,10X24X12
92075-1690
$5.00
92075B
DAMPER
92075-1737
$8.58
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
92150
BOLT,SOCKET,8X20
92150-1155
$5.52
220
SCREW-PAN-CROS,3X8
220B0308
$0.59
220A
SCREW-PAN-CROSS
220C0508
$0.55
221
SCREW-CSK-CROS,4X14
221B0414
$3.41
670
O RING,4MM
670B1504
$4.11
702
TUBE-RUBBER,7X10X600
702A07600
$13.38
