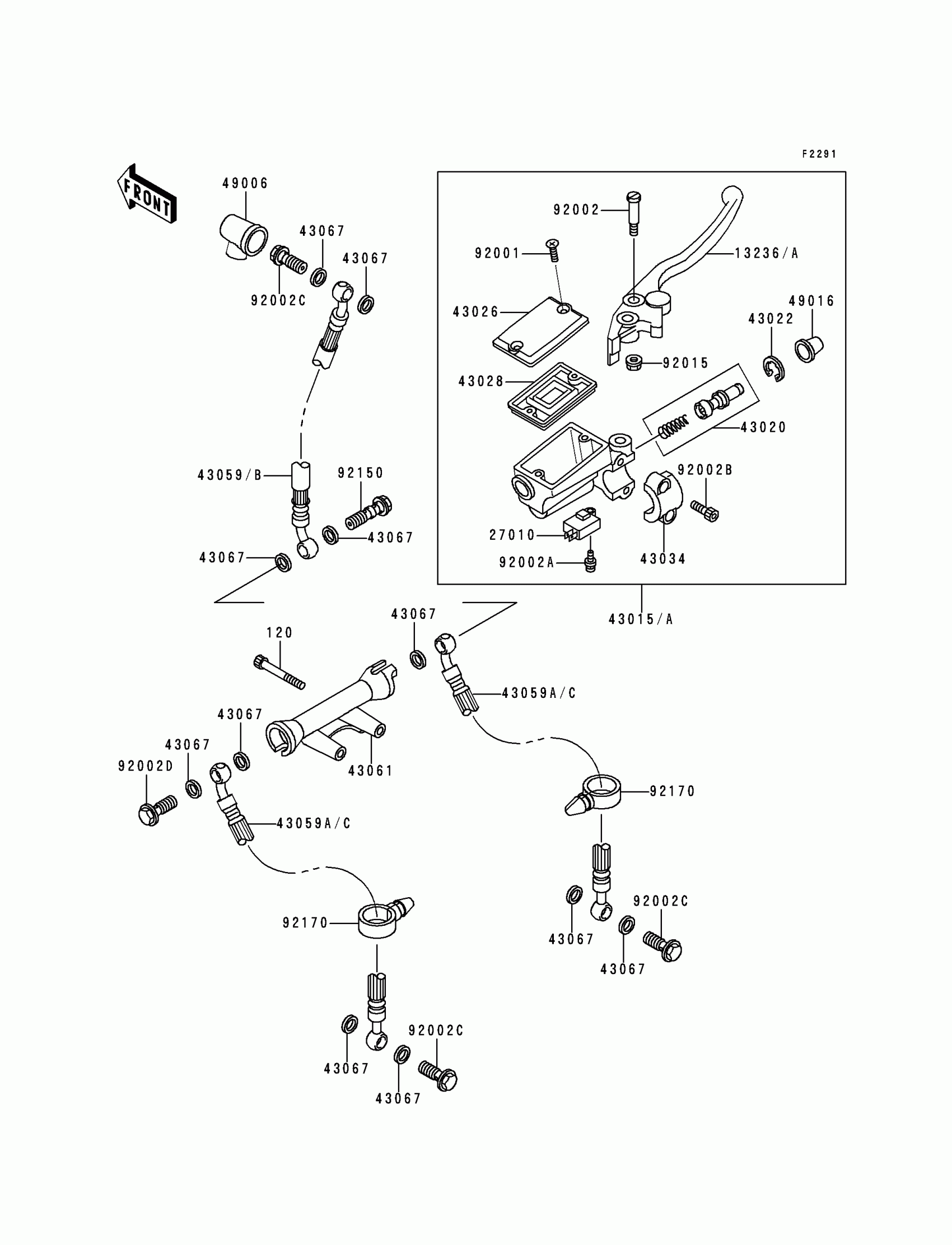

Kawasaki Zephyr Front Master Cylinder(ZR550-B1/B2) Diagram

Description

Price

120

BOLT-SOCKET,6X45

120P0645

Unavailable

13236A

LEVER-COMP,FRONT BRAKE

13236-1221

$42.75

27010

SWITCH,BRAKE

27010-1170

$32.62

43015A

CYLINDER-ASSY-MASTER,FR

43015-1451

$357.29

43020

PISTON-COMP-BRAKE,FR

43020-1054

$58.51

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE,FR

43026-1055

$51.13

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$18.50

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$36.55

43059B

HOSE-BRAKE,FR

43059-1613

$81.75

43059C

HOSE-BRAKE,FR

43059-1614

$81.75

43061

JOINT-BRAKE

43061-1056

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

$1.57

49006

BOOT,DUST

49006-1040

$8.74

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92001

SCREW,5MM,BLACK

92001-1727

$3.14

92002

BOLT,LEVER SET,BLACK

92002-1322

$8.91

92002A

BOLT,SCREW,4X12

92002-1323

$2.99

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.54

92002C

BOLT,OIL,L=23

92002-1888

$4.15

92002D

BOLT,OIL,L=23

92002-1975

$14.37

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92150

BOLT,OIL,L=37

92150-1351

$8.14

92170

CLAMP

92170-1067

$5.69
