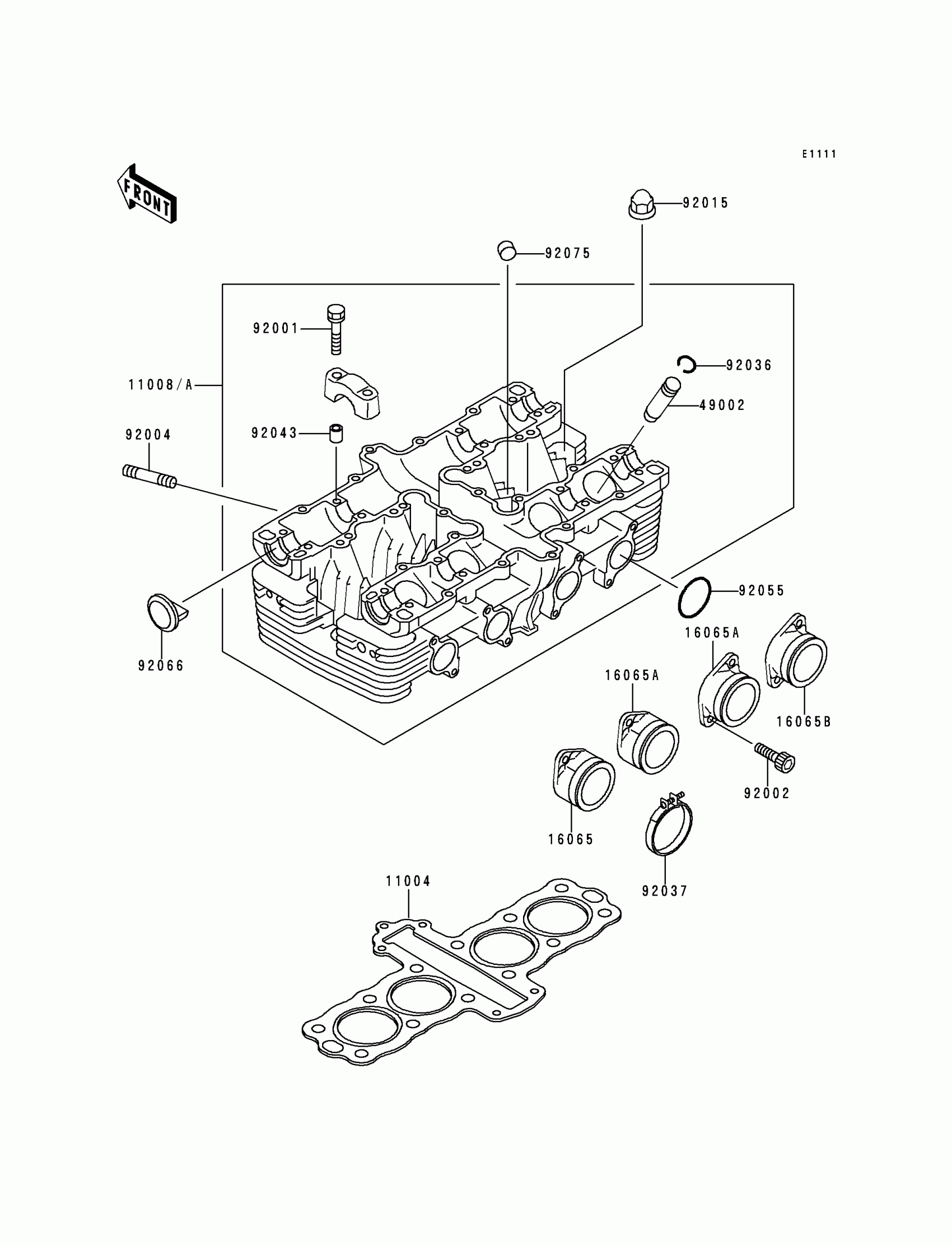

Kawasaki Zephyr Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-1212

Unavailable

11008

HEAD-COMP-CYLINDER

11008-1225

Unavailable

16065

HOLDER-CARBURETOR,#1

16065-1234

$39.20

16065A

HOLDER-CARBURETOR,#2

16065-1235

$39.20

16065B

HOLDER-CARBURETOR,#4

16065-1236

$39.20

49002

GUIDE-VALVE

49002-1005

Unavailable

92001

BOLT,FLANGED,6X38

92001-1105

$4.69

92002

BOLT,6X16

92002-1143

$3.92

92004

STUD,6X27

92004-1162

$5.18

92015

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92036

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92037

CLAMP

92037-1326

$8.98

92043

PIN,6.2X8X14

92043-1263

$0.43

92055

RING-O,32MM

92055-1256

$13.08

92066

PLUG,CAMSHAFT

92066-1329

$36.88

92075

DAMPER

92075-182

$4.31
