1993 Kawasaki Zephyr Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

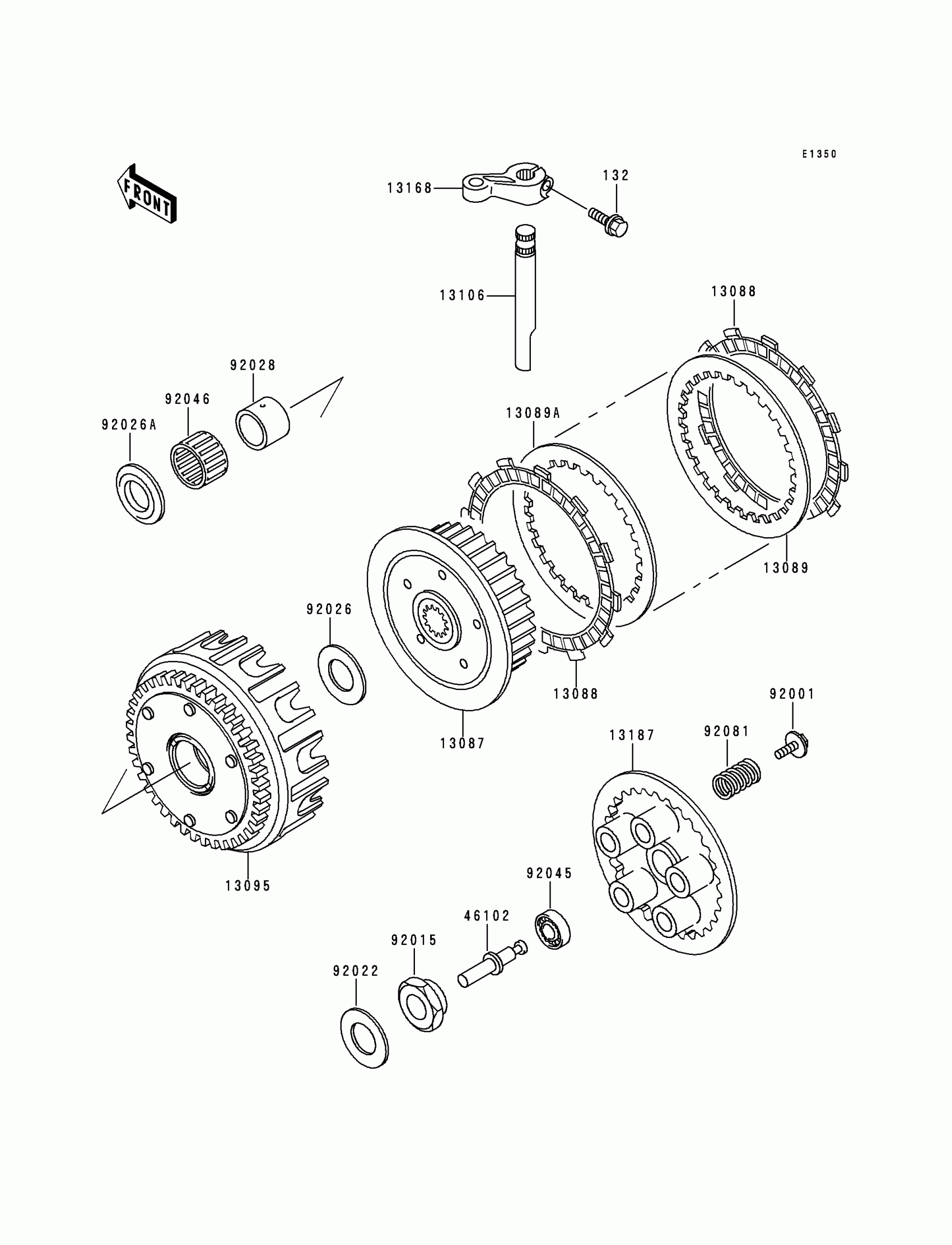

1993 Kawasaki Zephyr Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X20

132E0620

1
Out of stock

13087

HUB-CLUTCH

13087-1052

1
Out of stock

13088

PLATE-FRICTION

13088-040

1

$9.95

In stock

13089

PLATE-CLUTCH,T=2.0

13089-026

1

$10.14

In stock

13089A

PLATE-CLUTCH,T=2.6

13089-1067

1

$10.84

In stock

13095

HOUSING-COMP-CLUTCH

13095-1030

1
Out of stock

13106

1

$50.51

In stock

13168

LEVER,CLUTCH RELEASE

13168-1432

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-1012

1
Out of stock

46102

ROD,CLUTCH

46102-1134

1

$36.83

In stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,20.3X36X2.3

92022-1116

1

$6.82

In stock

92026

SPACER,25.5X47X2.5

92026-022

1
Out of stock

92026A

1

$16.49

In stock

92028

BUSHING,25X32X23.6

92028-178

1

$23.53

In stock

92045

1

$12.85

In stock

92046

1

$19.92

In stock

92081

SPRING,CLUTCH

92081-139

1

$6.75

In stock
