1993 Kawasaki Zephyr Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Change Drum/shift Fork diagram for your 1993 Kawasaki Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

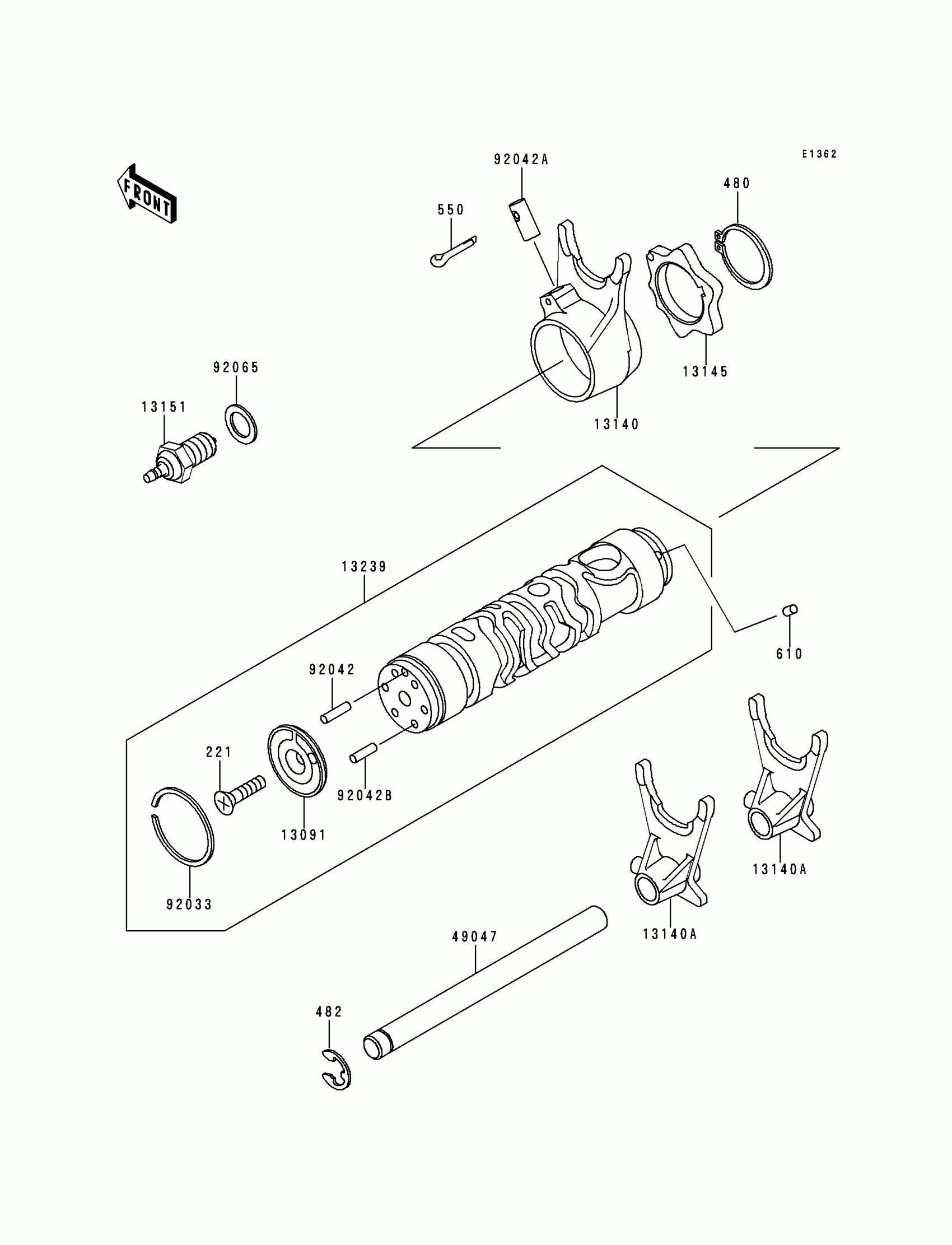

1993 Kawasaki Zephyr Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

221

1

$1.98

In stock

480

1

$4.93

In stock

482

1

$0.75

In stock

550

1

$1.53

In stock

610

ROLLER,4X6

610A0406

1

$3.43

In stock

13091

1

$24.63

In stock

13140

FORK-SHIFT,DRIVE

13140-1016

1

$112.11

In stock

13140A

FORK-SHIFT,OUTPUT

13140-1062

1
Out of stock

13145

CAM-CHANGE DRUM

13145-1058

1

$22.71

In stock

13151

SWITCH-COMP,NEUTRAL

13151-1007

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1119

1
Out of stock

49047

ROD-SHIFT

49047-1069

1

$28.92

In stock

92033

RING-SNAP,37MM

92033-035

1

$7.44

In stock

92042

PIN,DOWEL,4X15.8

92042-014

1

$0.49

In stock

92042A

PIN,DOWEL,8X18

92042-021

1

$9.12

In stock

92042B

PIN,DOWEL,4X13.8

92042-030

1

$3.12

In stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock
