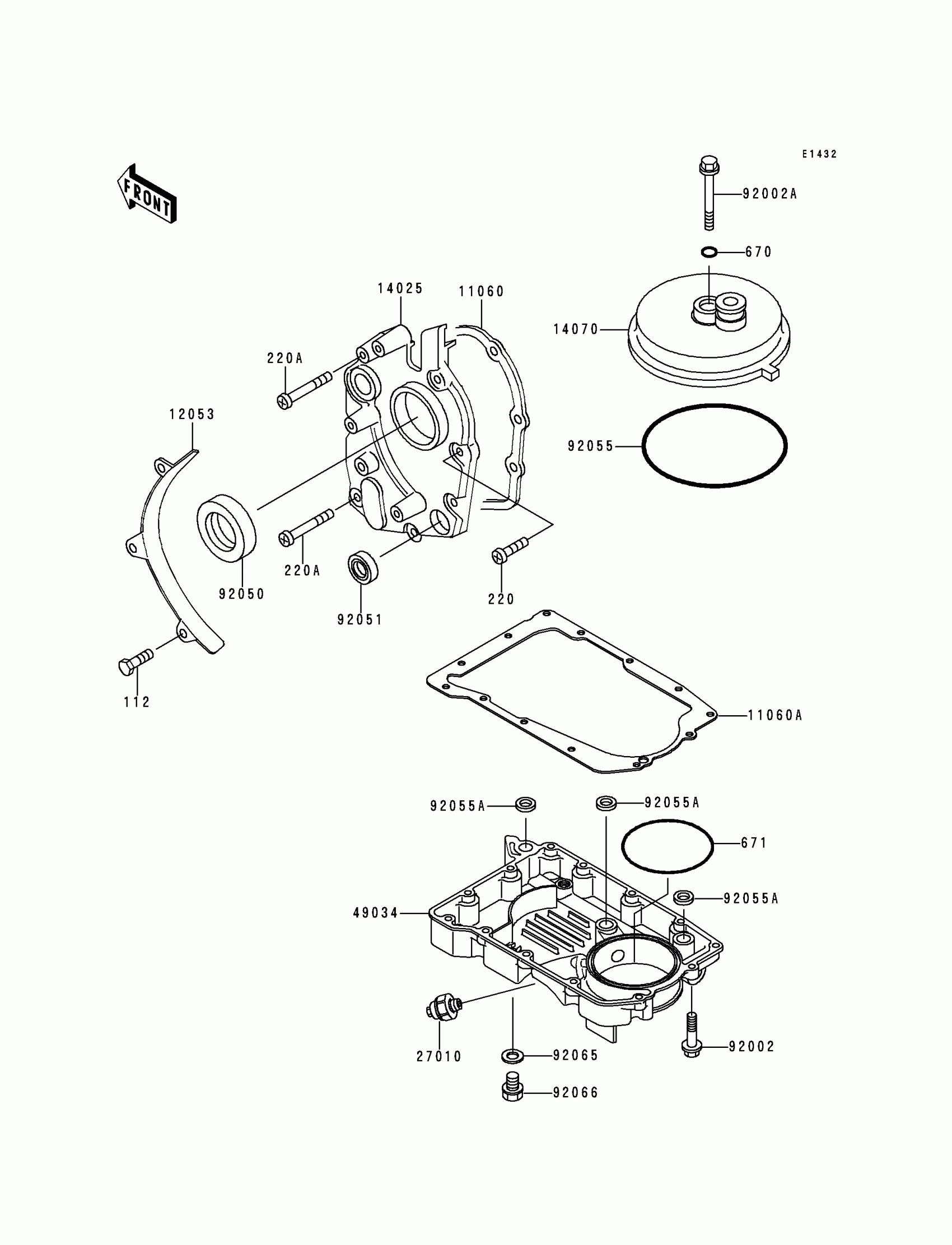

Kawasaki Zephyr Breather Body/Oil Pan Diagram

Description

Price

112

BOLT-UPSET 6X14

112B0614

Unavailable

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

220A

SCREW PAN HEAD 6X40

220B0640

Unavailable

670

O RING,8MM

670B1508

$1.29

671

O RING,90MM

671B2590

$9.91

11060

GASKET,TRANSMISSION COVER

11060-1056

Unavailable

11060A

GASKET,OIL PAN

11060-1057

Unavailable

12053

GUIDE-CHAIN

12053-1006

$10.97

14025

COVER,TRANSMISSION

14025-1700

Unavailable

14070

BODY-BREATHER,BLACK

14070-1010

$39.70

27010

SWITCH,OIL PRESSURE

27010-1155

$40.13

49034

PAN-OIL

49034-1084

Unavailable

92002

BOLT,6X25

92002-1089

$2.80

92002A

BOLT,8X72

92002-1329

$10.62

92050

SEAL-OIL,SC325210

92050-024

$8.17

92051

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,91.6X3.4

92055-052

$9.89

92055A

RING-O,19.5MM

92055-077

$6.57

92065

GASKET,12X22X2

92065-097

$0.74

92066

PLUG,OIL DRAIN,12X15

92066-1174

$6.16
