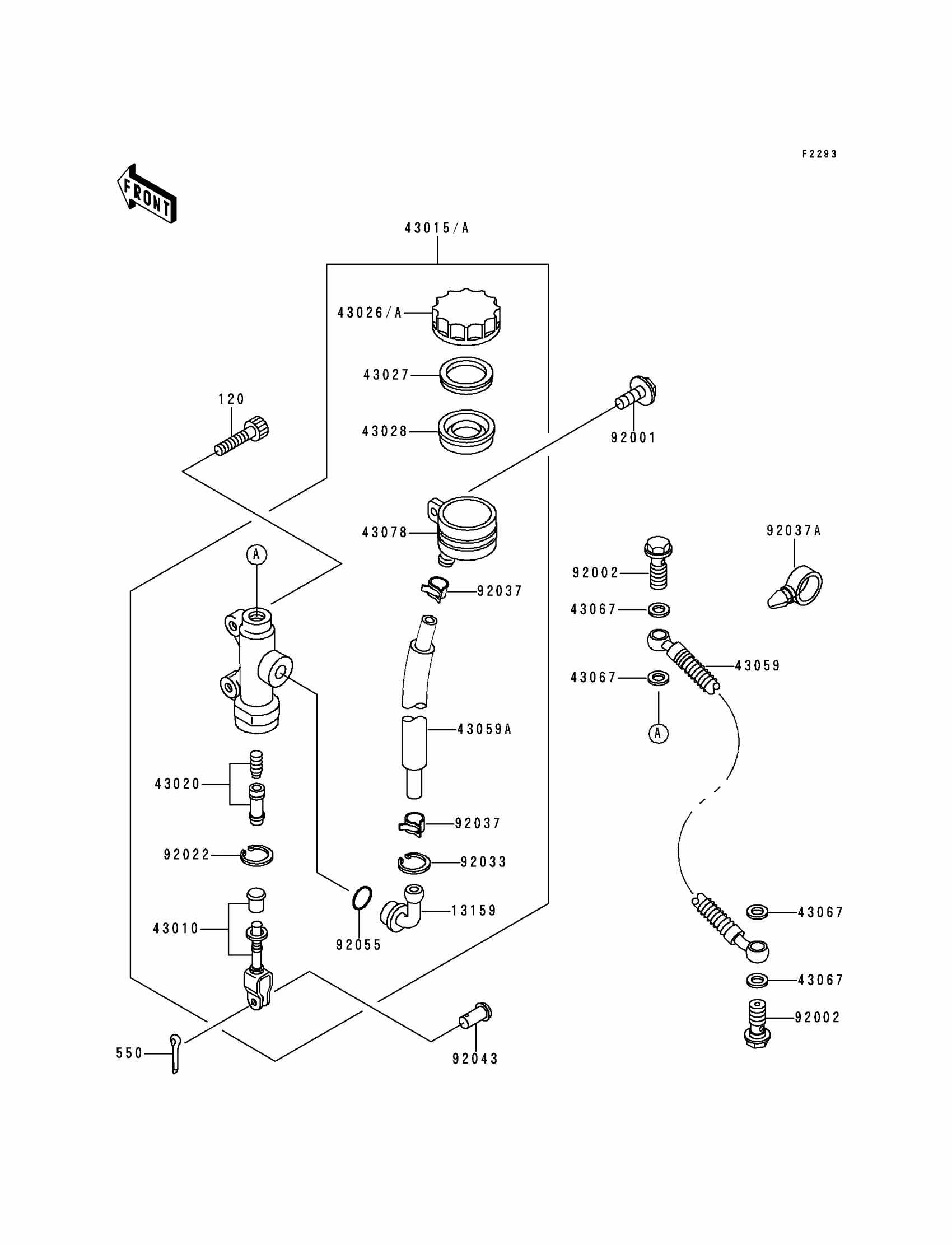

Kawasaki Zephyr 750 Rear Master Cylinder Diagram

Description

Price

120

BOLT-SOCKET,8X35

120S0835

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

43010

ROD-ASSY-BRAKE

43010-1055

$70.35

43015A

CYLINDER-ASSY-MASTER,RR

43015-1502

$334.32

43020

PISTON-COMP-BRAKE,RR

43020-1067

$67.66

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43059

HOSE-BRAKE,RR

43059-1668

Unavailable

43059A

HOSE-BRAKE,RR MASTER CYLINDER

43059-1669

Unavailable

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43078

RESERVOIR,RR MASTER CYLINDER

43078-1058

$30.87

92001

BOLT,W/P,6X16

92001-1860

$3.85

92002

BOLT,OIL,L=23

92002-1888

$4.15

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92037A

CLAMP,HOSE

92037-1827

$5.69

92043

PIN,8MM

92043-1303

$2.98

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable
