1993 Kawasaki Zephyr 750 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 1993 Kawasaki Zephyr 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

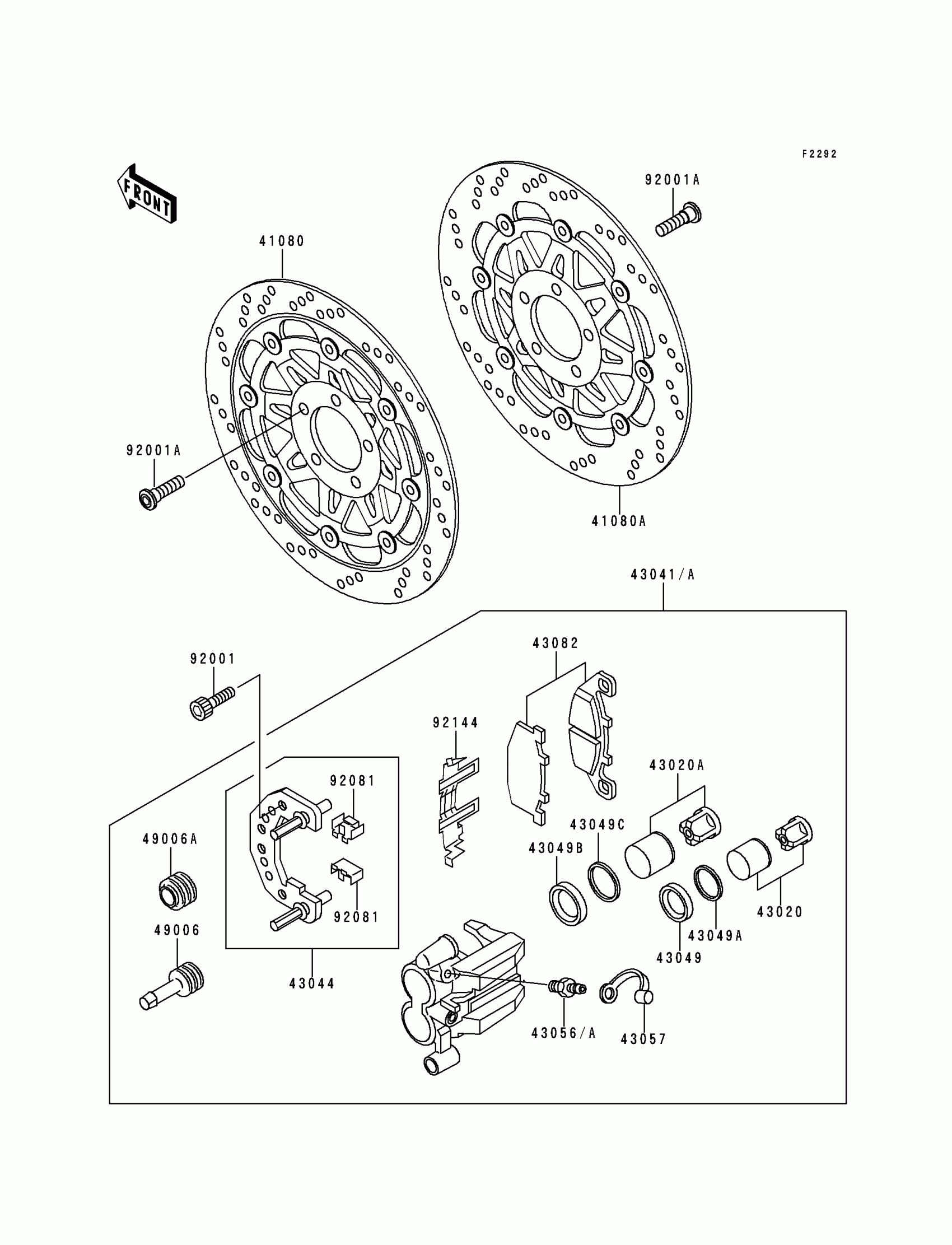

1993 Kawasaki Zephyr 750 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR,LH,SILVER NO.1

41080-1296-CM

1

$430.10

In stock

41080A

DISC,FR,RH,SILVER NO.1

41080-1297-CM

1

$404.51

In stock

43020

PISTON-COMP-BRAKE

43020-1068

1

$74.19

In stock

43020A

PISTON-COMP-BRAKE

43020-1069

1

$74.19

In stock

43041

CALIPER-ASSY,FR,LH,M.F.GRAY

43041-1407-FE

1
Out of stock

43041A

1

$433.79

In stock

43044

HOLDER-COMP-CALIPER

43044-1067

1

$162.04

In stock

43049

PACKING,PISTON SEAL

43049-1054

1

$9.84

In stock

43049A

PACKING,PISTON

43049-1055

1

$8.95

In stock

43049B

PACKING,PISTON SEAL

43049-1056

1

$10.38

In stock

43049C

PACKING,PISTON

43049-1057

1

$10.02

In stock

43056

BREATHER

43056-003

1

$22.74

In stock

43056A

BREATHER-BRAKE

43056-1054

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43082

PAD-ASSY-BRAKE

43082-1123

1

$67.40

In stock

49006

BOOT,CALIPER

49006-1094

1

$9.69

In stock

49006A

BOOT,CALIPER

49006-1095

1

$5.78

In stock

92001

BOLT,SOCKET,10X33

92001-1901

1
Out of stock

92001A

1

$3.72

In stock

92081

SPRING,PAD STOPPER

92081-1661

1

$9.60

In stock

92144

SPRING,PAD

92144-1070

1

$30.43

In stock
