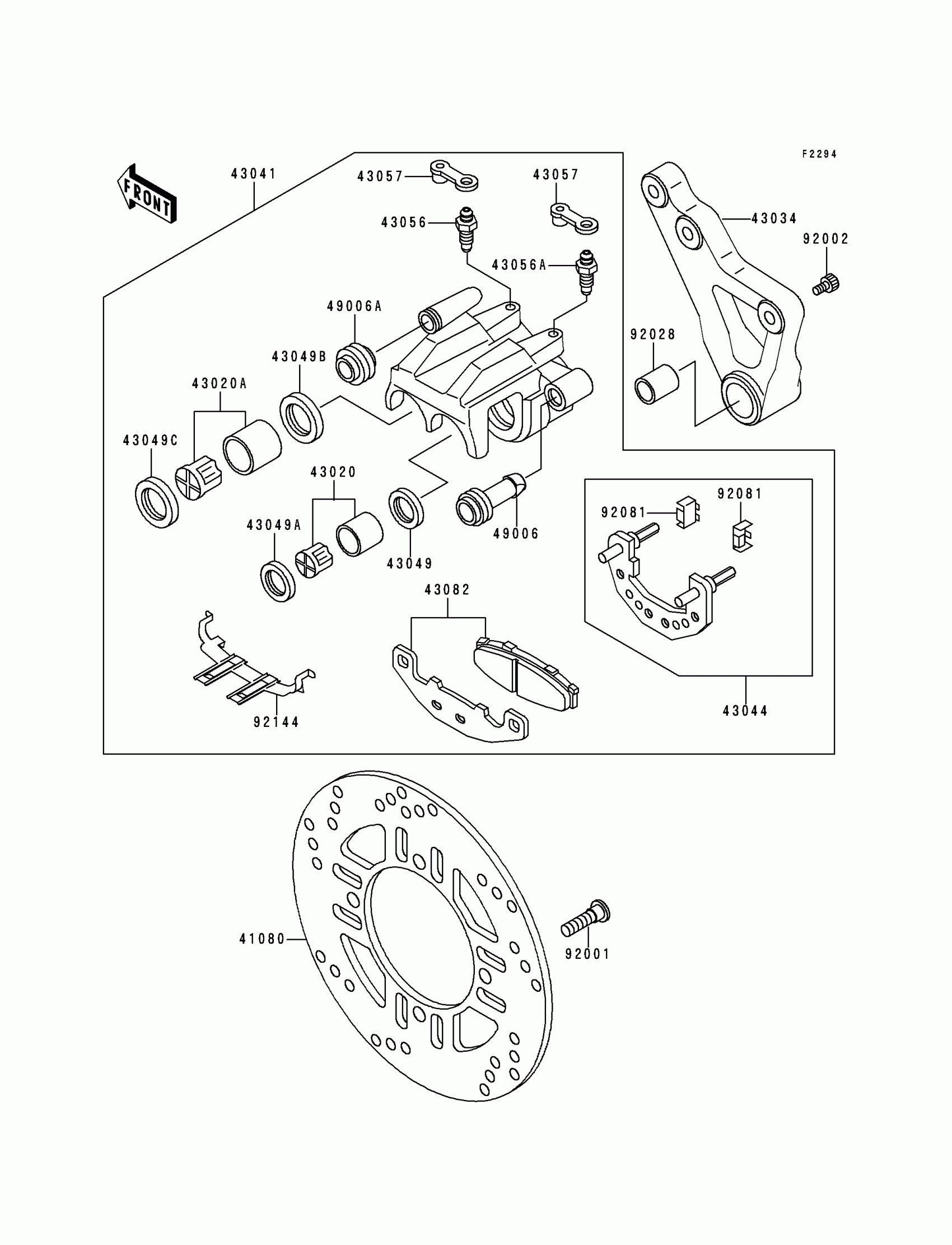

Kawasaki Zephyr 750 Rear Caliper Diagram

#

Description
Price

41080

DISC,RR,C.GRAY

41080-1177-FB

$348.81

43020

PISTON-COMP-BRAKE

43020-1068

$72.80

43020A

PISTON-COMP-BRAKE

43020-1069

$72.80

43034

HOLDER-BRAKE,REAR CALIPER

43034-1109

Unavailable

43041

CALIPER-ASSY,RR,M.F.GRAY

43041-1362-FE

$424.82

43044

HOLDER-COMP-CALIPER

43044-1067

$158.69

43049

PACKING,PISTON SEAL

43049-1054

$12.42

43049A

PACKING,PISTON

43049-1055

$11.29

43049B

PACKING,PISTON SEAL

43049-1056

$13.10

43049C

PACKING,PISTON

43049-1057

$12.65

43056

BREATHER

43056-003

$24.57

43056A

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1077

$52.00

49006

BOOT,CALIPER

49006-1094

$12.23

49006A

BOOT,CALIPER

49006-1095

$7.27

92001

BOLT,DISC PLATE,8X30

92001-1951

$4.69

92002

BOLT,SOCKET,10X17

92002-1713

$7.34

92028

BUSHING

92028-1580

$12.37

92081

SPRING,PAD STOPPER

92081-1661

$11.80

92144

SPRING,PAD

92144-1070

$29.85
