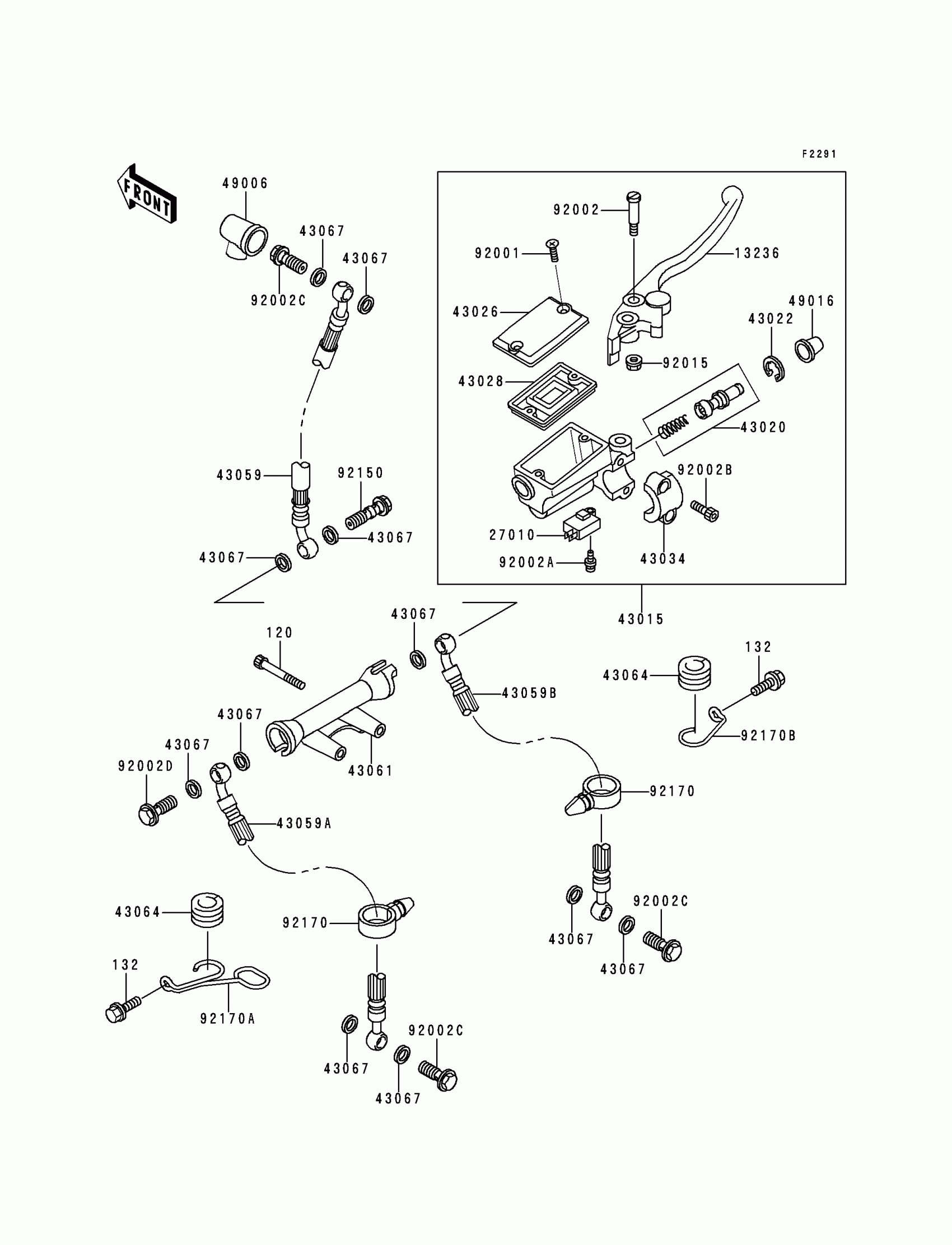

Kawasaki Zephyr 750 Front Master Cylinder(ZR750-C1) Diagram

#

Description
Price

120

BOLT-SOCKET,6X45

120P0645

$1.92

132

BOLT-FLANGED-SMALL,6X12

132E0612

$4.41

13236

LEVER-COMP,FRONT BRAKE

13236-1221

$48.29

27010

SWITCH,BRAKE

27010-1170

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-1451

$351.46

43020

PISTON-COMP-BRAKE,FR

43020-1054

$65.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE,FR

43026-1055

$48.83

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$22.90

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$35.87

43059

HOSE-BRAKE,FR,UPP

43059-1663

Unavailable

43059A

HOSE-BRAKE,FR,LWR,LH

43059-1664

$73.06

43059B

HOSE-BRAKE,FR,LWR,RH

43059-1695

Unavailable

43061

JOINT-BRAKE

43061-1068

Unavailable

43064

GROMMET,HOSE CLAMP

43064-007

$5.52

43067

WASHER,10.5X15X1.5

43067-001

$2.15

49006

BOOT,DUST

49006-1040

$11.49

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92001

SCREW,5MM,BLACK

92001-1727

$4.11

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.65

92002C

BOLT,OIL,L=23

92002-1888

$5.48

92002D

BOLT,OIL,L=23

92002-1975

$15.18

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92150

BOLT,OIL,L=37

92150-1351

$8.33

92170

CLAMP

92170-1067

$7.45

92170A

CLAMP,LH,HOSE&CABLE

92170-1249

$6.02

92170B

CLAMP,RH,HOSE

92170-1250

$6.13
