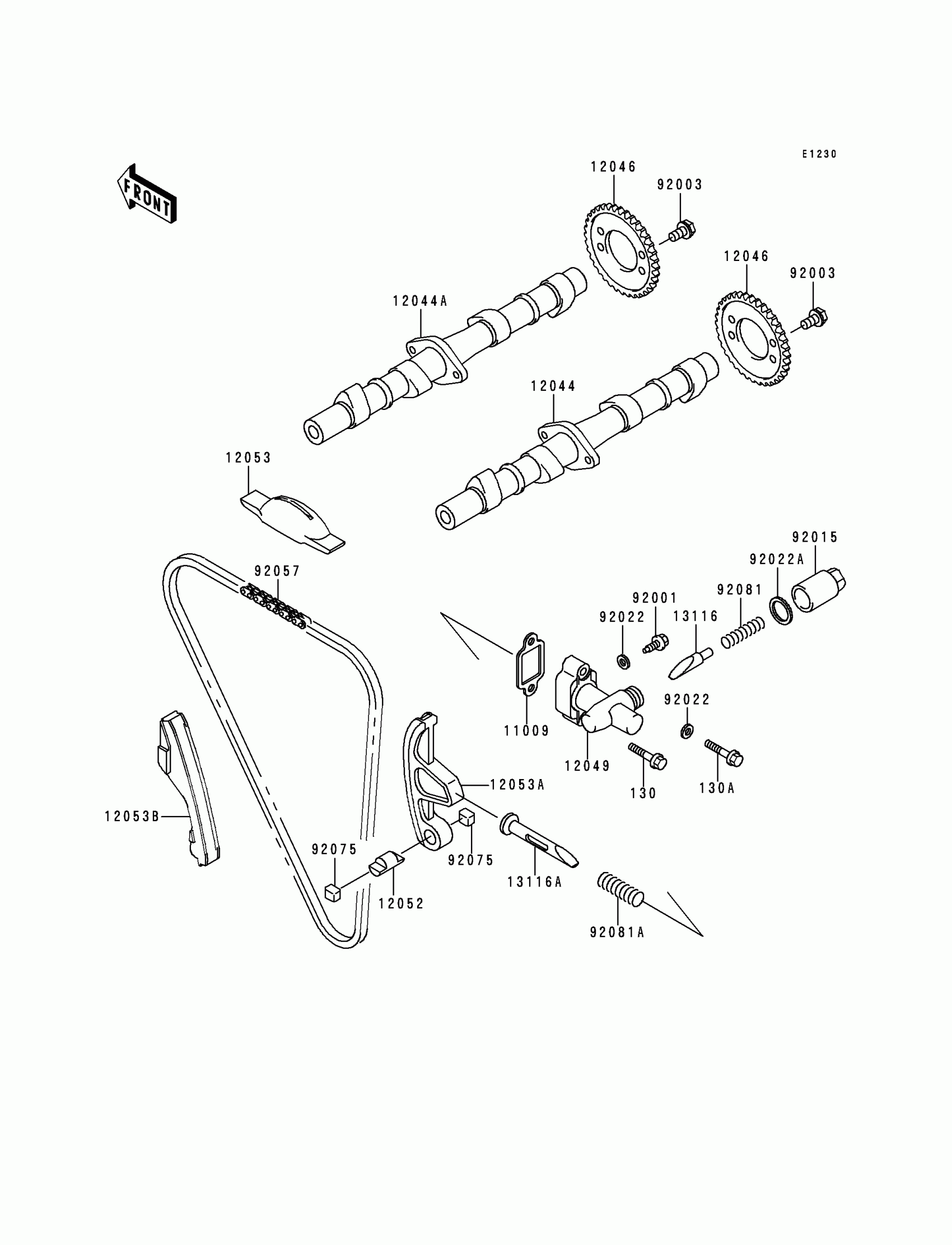

Kawasaki Zephyr 750 Camshaft/Tensioner Diagram

#

Description
Price

130

BOLT-FLANGED,6X30

130G0630

$1.42

130A

BOLT-FLANGED,6X35

130G0635

$0.93

11009

GASKET,TENSIONER

11009-1980

$5.54

12044

CAMSHAFT-VALVE,INTAKE

12044-1043

Unavailable

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1044

Unavailable

12046

SPROCKET,CAMSHAFT,46T

12046-1021

$76.42

12049

TENSIONER,CAM CHAIN

12049-1015

$51.75

12052

SHAFT-IDLER,CAM CHAIN GUIDE

12052-003

$14.37

12053

GUIDE-CHAIN,UPP

12053-1038

$33.37

12053A

GUIDE-CHAIN,RR

12053-1054

$51.75

12053B

GUIDE-CHAIN,FR

12053-1058

$38.84

13116

ROD-PUSH,TENSIONER

13116-1012

$19.66

13116A

ROD-PUSH,TENSIONER

13116-1036

$57.89

92001

BOLT,TENSIONER ADJUST

92001-1155

$5.33

92003

BOLT,FLANGED,6X11

92003-208

$4.31

92015

NUT,CAP,18MM

92015-1100

$13.08

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92022A

WASHER,18.3X24X1.4

92022-1175

$4.39

92057

CHAIN,CAM,82RH2015-150L

92057-1319

$125.91

92075

DAMPER,CAM CHAIN GUIDE

92075-1314

$13.08

92081

SPRING,TENSIONER

92081-1302

$5.54

92081A

SPRING,TENSIONER

92081-1374

$4.74
