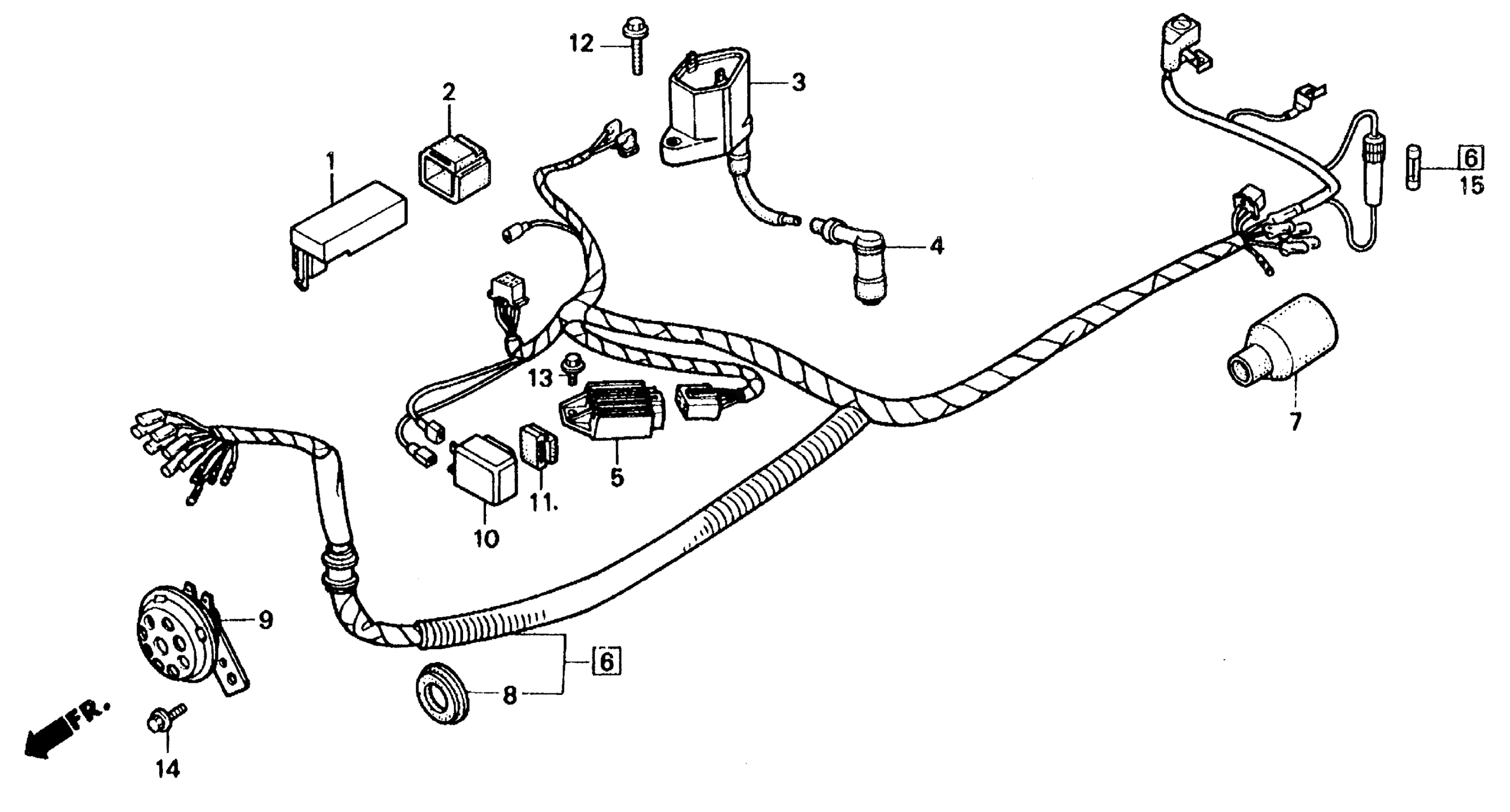

Honda ZB50A (88) MOTORCYCLE, JPN, VIN# JH2AB220-JS000006 TO JH2AB220-JS003064 WIRE HARNESS Diagram

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-958-000.

30401-GB4-770

$5.72

MODULE, IGNITION CONTROL (CDI)

30410-141-751

Unavailable

COIL, IGNITION This part replaces 30510-GS9-000.

30510-GS9-405

Unavailable

COIL, IGNITION

30510-GS9-405

Unavailable

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-153.

30700-KE2-942

$17.87

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-152-163.

30700-KE2-942

$17.87

RECTIFIER, REGULATOR (SHINDENGEN) | Use up to Frame SN JS003061 This part replaces 31600-GN2-003.

31600-GW0-004

Unavailable

RECTIFIER, REGULATOR (SHINDENGEN)

31600-GW0-004

Unavailable

WIRE HARNESS (NOT AVAILABLE)

32100-GS9-770

Unavailable

COVER, CONNECTOR

32108-473-000

Unavailable

GROMMET, WIRE HARNESS

32984-GS9-000

Unavailable

HORN This part replaces 38110-KB4-671.

38110-KB4-672

Unavailable

HORN

38110-KB4-672

Unavailable

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-KJ6-742.

38301-KJ6-743

$60.65

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$60.65

SUSPENSION, TURN SIGNAL RELAY

38306-KK4-000

$3.01

BOLT, FLANGE (5X22) This part replaces 90112-GK8-000.

90112-GK8-010

$2.84

BOLT, FLANGE (5X22)

90112-GK8-010

$2.84

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

FUSE A (7A)

98200-10700

$1.49
