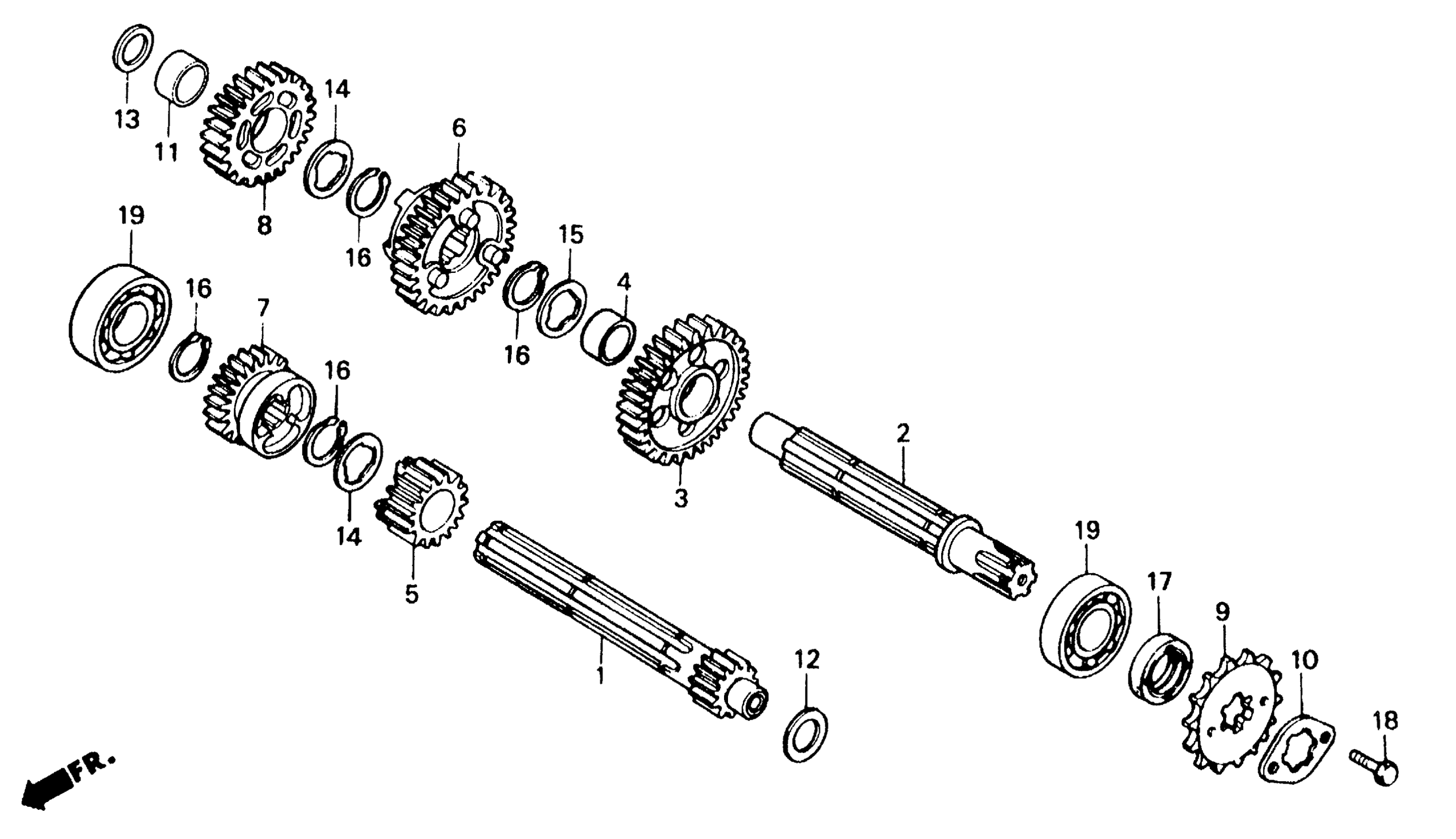

Honda ZB50A (88) MOTORCYCLE, JPN, VIN# JH2AB220-JS000006 TO JH2AB220-JS003064 TRANSMISSION Diagram

MAINSHAFT, TRANSMISSION (11T)

23211-041-020

Unavailable

COUNTERSHAFT, TRANSMISSION

23221-041-050

Unavailable

GEAR, COUNTERSHAFT LOW (36T)

23421-086-020

Unavailable

COLLAR, COUNTERSHAFT LOW GEAR

23422-041-000

Unavailable

GEAR, MAINSHAFT SECOND (17T)

23431-171-000

Unavailable

GEAR, COUNTERSHAFT SECOND (31T)

23441-086-010

Unavailable

GEAR, MAINSHAFT THIRD (21T)

23471-041-050

Unavailable

GEAR, COUNTERSHAFT THIRD (25T)

23481-086-010

Unavailable

SPROCKET, DRIVE (15T)

23801-179-700

$18.30

PLATE, DRIVE SPROCKET FIXING

23802-040-000

$2.64

COLLAR, GEAR

23911-041-020

Unavailable

WASHER, THRUST (14MM)

90451-121-000

$1.87

WASHER, THRUST (13.5MM)

90451-141-000

$12.84

WASHER, SPLINE (17MM)

90461-035-000

$2.57

WASHER B, SPLINE (17MM)

90462-035-000

Unavailable

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

OIL SEAL (17X29X5) (ARAI)

91203-GBG-900

$6.99

OIL SEAL (17X29X5) (ARAI) This part replaces 91203-GB5-761.

91203-GBG-900

$6.99

OIL SEAL (17X29X5) (ARAI) This part replaces 91203-GB5-762.

91203-GBG-900

$6.99

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
