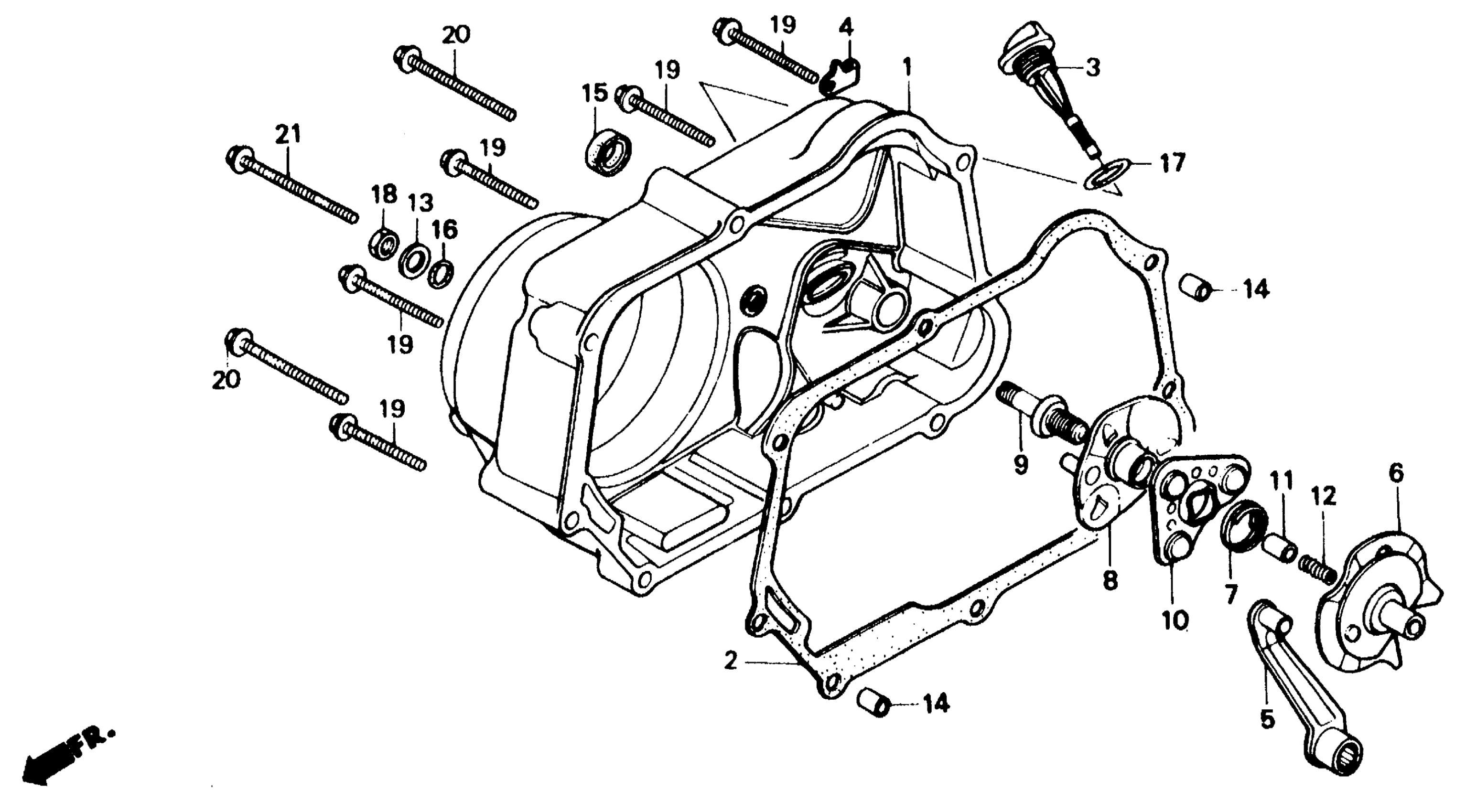

Honda ZB50A (88) MOTORCYCLE, JPN, VIN# JH2AB220-JS000006 TO JH2AB220-JS003064 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-GS9-670

Unavailable

2

GASKET, R. CRANKCASE COVER This part replaces 11394-GW8-680.

11394-GW8-682

$12.45

2

GASKET, R. CRANKCASE COVER This part replaces 11394-035-010.

11394-GW8-682

$12.45

2

GASKET, R. CRANKCASE COVER This part replaces 11394-035-306.

11394-GW8-682

$12.45

3

DIPSTICK, OIL This part replaces 15651-GB4-790.

15651-179-701

$10.04

4

CLAMP, TUBE

16236-171-000

Unavailable

5

LEVER, CLUTCH

22811-040-020

$29.88

6

PLATE, CLUTCH CAM

22820-957-670

Unavailable

7

SPRING, CAM PLATE SIDE

22825-046-000

$2.01

8

PLATE, CLUTCH LIFTER

22830-957-670

Unavailable

9

BOLT, CLUTCH ADJUSTING (NOT AVAILABLE)

22846-GB4-790

Unavailable

10

RETAINER, CLUTCH BALL

22860-046-000

Unavailable

11

THROUGH, OIL This part replaces 25551-918-007.

25551-GEL-A80

$5.58

12

SPRING, OIL GUIDE

25555-065-000

$1.57

13

WASHER (8MM)

90485-GB4-790

$2.00

14

PIN A, DOWEL (8X12) This part replaces 90702-GB6-910.

94301-08120

$2.69

14

PIN A, DOWEL (8X12)

94301-08120

$2.69

15

OIL SEAL (14X24X5)

91202-KFL-841

$4.81

15

OIL SEAL (14X24X5) This part replaces 91202-302-010.

91202-KFL-841

$4.81

15

OIL SEAL (14X24X5) This part replaces 91205-HB2-771.

91202-KFL-841

$4.81

15

OIL SEAL (14X24X5) This part replaces 91205-HB2-772.

91202-KFL-841

$4.81

16

O-RING (8X1.7) (ARAI) This part replaces 91303-001-000.

91306-HB3-003

$1.75

16

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.75

17

O-RING (18X3)

91307-035-000

$2.75

18

NUT, HEX. (8MM)

94030-08070

$0.44

19

BOLT, FLANGE (6X40)

96001-06040-07

$1.29

20

BOLT, FLANGE (6X65)

96001-06065-07

$1.82

21

BOLT, FLANGE (6X80)

96001-06080-07

Unavailable
