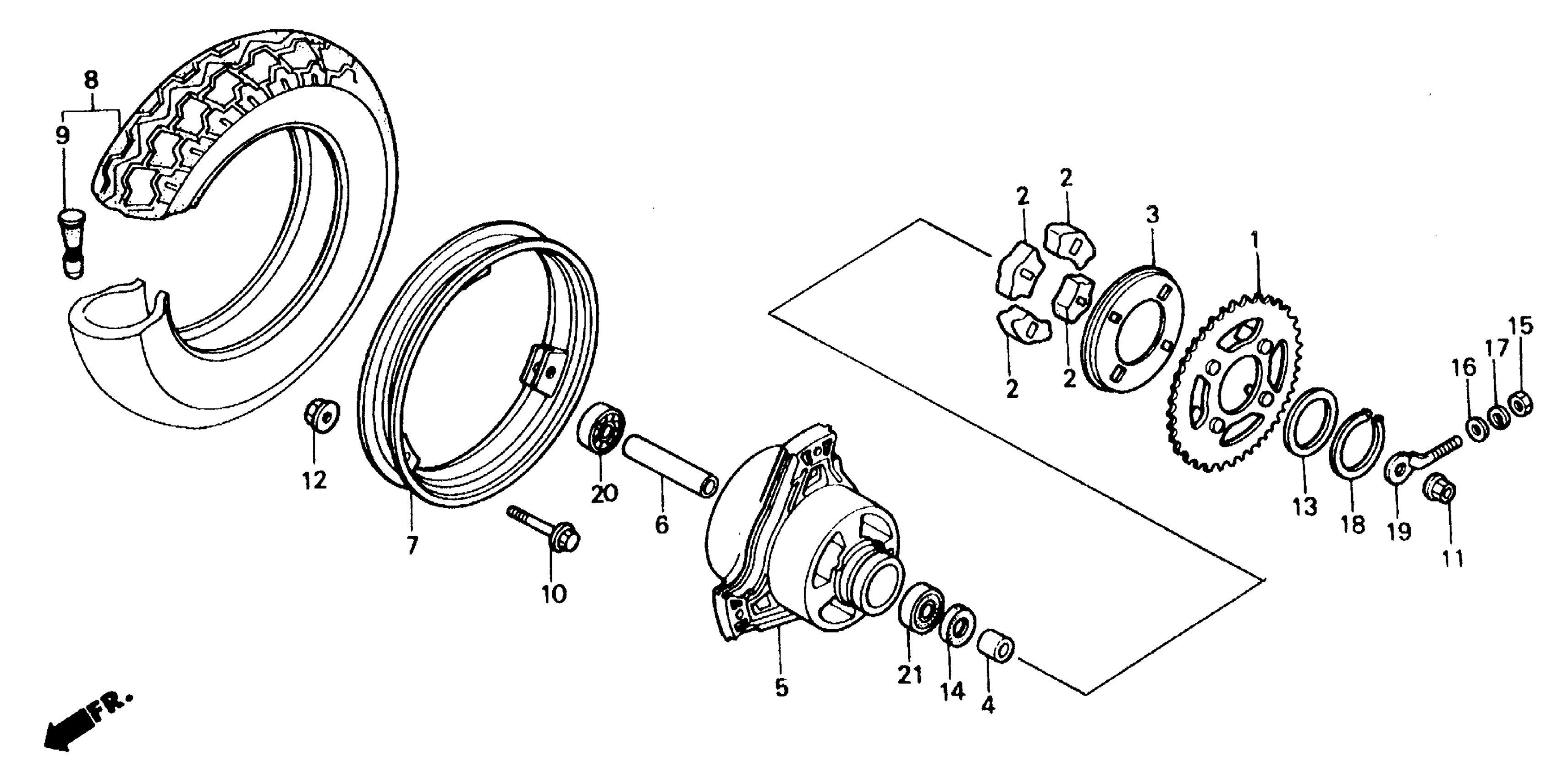

Honda ZB50A (88) MOTORCYCLE, JPN, VIN# JH2AB220-JS000006 TO JH2AB220-JS003064 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (39T) (NOT AVAILABLE)

41201-GS9-670

Unavailable

2

DAMPER, RR. WHEEL

41241-028-940

$8.78

2

DAMPER, RR. WHEEL This part replaces 41241-459-670.

41241-028-940

$8.78

3

COVER, RR. WHEEL DAMPER

41245-051-000

$4.79

4

COLLAR, RR. WHEEL SIDE

42311-GS9-000

Unavailable

5

HUB, RR. WHEEL *R134* (FIGHTING RED)

42601-GS9-000ZA

Unavailable

6

COLLAR, RR. WHEEL DISTANCE

42620-GS3-000

$15.98

6

COLLAR, RR. WHEEL DISTANCE This part replaces 42620-GS3-010.

42620-GS3-000

$15.98

7

RIM, WHEEL *R134* This part replaces 42701-GN3-700ZC.

42701-GN3-701ZC

Unavailable

8

TIRE ASSY., RR. (3.50-10) (2PR) (INOUE) This part replaces 42710-GM9-713.

42711-GM9-746

Unavailable

8

TIRE ASSY., RR. (3.50-10) (2PR) (INOUE) This part replaces 42711-GM9-743.

42711-GM9-746

Unavailable

8

TIRE ASSY., RR. (3.50-10) (2PR) (INOUE)

42711-GM9-746

Unavailable

9

VALVE, RIM This part replaces 42753-GC7-823.

42753-VM0-003

$10.30

9

VALVE, RIM

42753-VM0-003

$10.30

10

BOLT, FLANGE (8X32)

90105-GM9-740

$4.49

10

BOLT, FLANGE (8X32) This part replaces 90122-GB2-721.

90105-GM9-740

$4.49

11

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

12

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

12

NUT, FLANGE (8MM)

90309-428-731

$3.35

13

WASHER (50MM)

90525-GS3-000

Unavailable

14

OIL SEAL (26X37X6)

90753-051-003

$7.66

14

OIL SEAL (26X37X6) This part replaces 90753-051-005.

90753-051-003

$7.66

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49

17

WASHER, SPRING (6MM)

94111-06000

$1.49

18

CIRCLIP (OUTER) (50MM)

94511-50000

$2.25

19

ADJUSTER A, R. CHAIN

95014-10100

$5.54

20

BEARING, RADIAL BALL (6201U)

96140-62010-10

$10.28

21

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84
