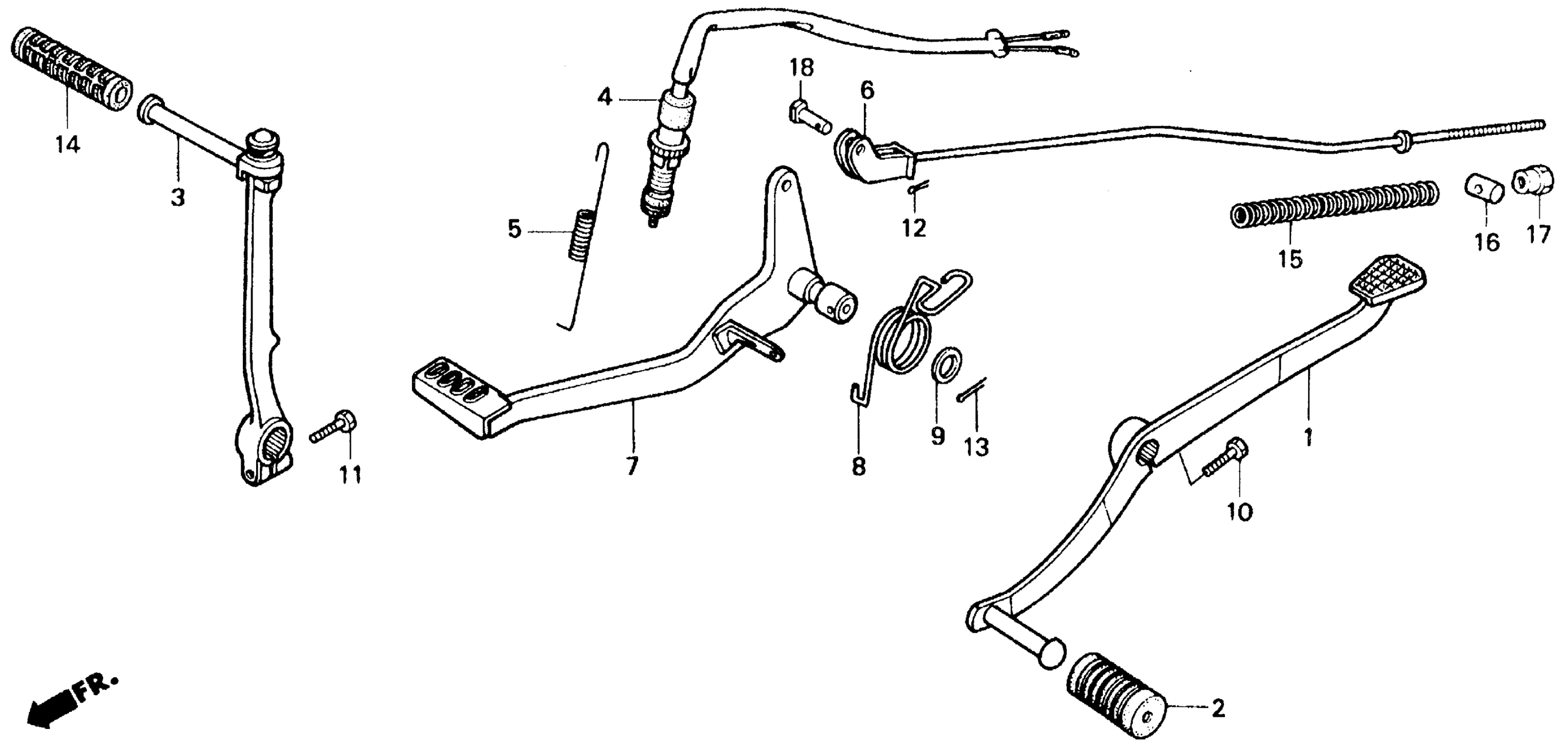

Honda ZB50A (88) MOTORCYCLE, JPN, VIN# JH2AB220-JS000006 TO JH2AB220-JS003064 PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT

24701-GS9-670

Unavailable

2

RUBBER, CHANGE PEDAL

24781-KR3-770

$3.39

3

ARM ASSY., KICK STARTER

28300-GS9-670

Unavailable

4

SWITCH, RR. STOP This part replaces 35350-GS9-010.

35350-GS9-505

Unavailable

5

SPRING, STOP SWITCH

35357-077-000

$4.69

6

ROD, RR. BRAKE

43451-GS9-670

Unavailable

7

PEDAL, BRAKE

46500-GS9-670

Unavailable

8

SPRING, BRAKE PEDAL

46514-GS9-670

Unavailable

9

WASHER (17.5MM)

90512-303-000

$1.77

10

BOLT, HEX. (6X20)

92101-06020-0G

Unavailable

10

BOLT, HEX. (6X20) This part replaces 92201-06020-0G.

92101-06020-0G

Unavailable

11

BOLT, HEX. (6X25)

92201-06025-0G

$0.53

12

PIN, COTTER (1.6X12)

94201-16120

$1.49

13

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

13

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

13

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

13

PIN, COTTER (3.0X45)

94201-30450

$1.49

14

RUBBER A, KICK STARTER

95011-51000

$3.69

15

SPRING A, BRAKE ROD

95014-73100

$1.49

16

JOINT, BRAKE ARM

95015-32001

$1.49

17

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

18

PIN C, JOINT This part replaces 90712-GS9-670.

95015-53000

$3.06

18

PIN, JOINT (C)

95015-53000

$3.06
