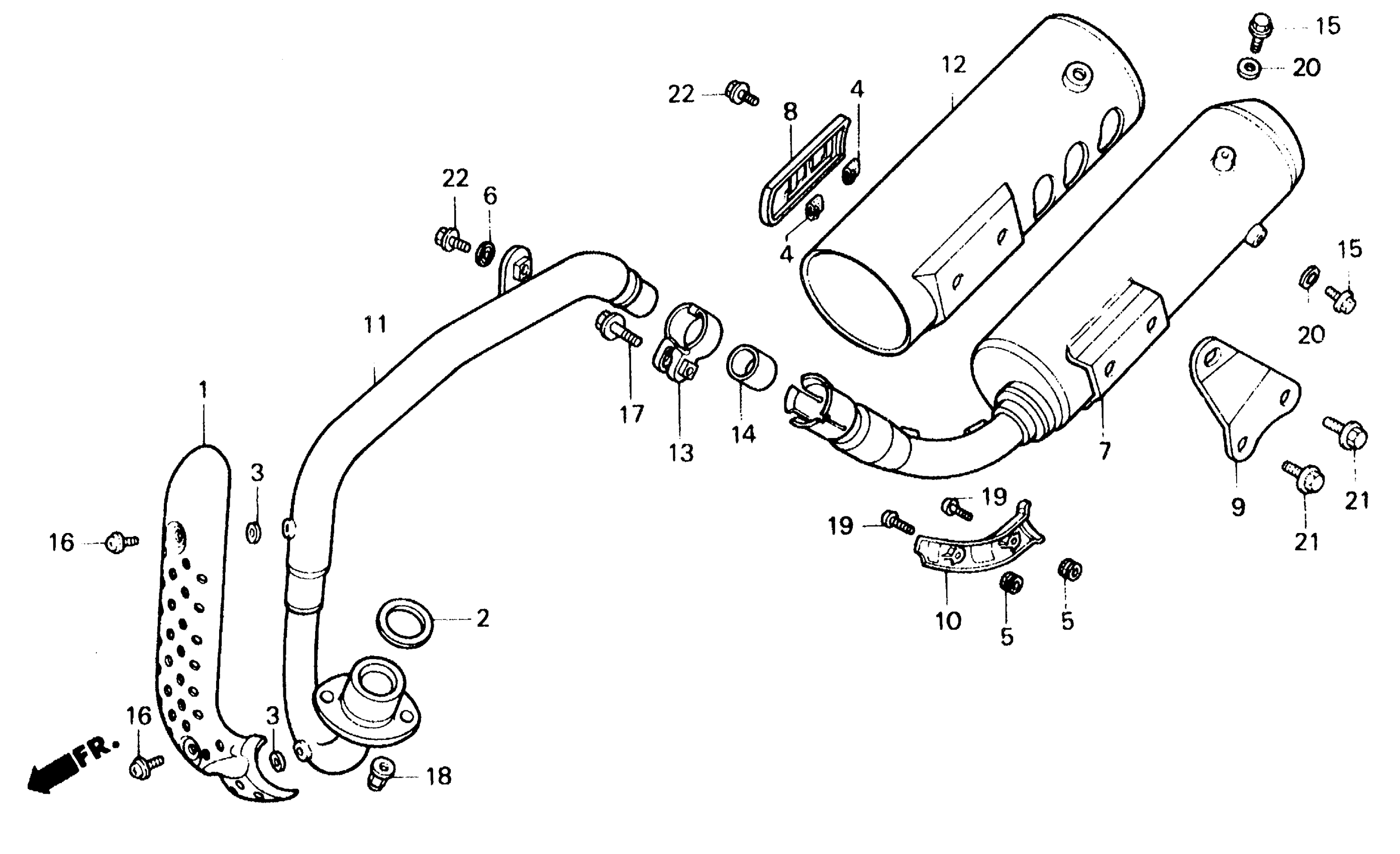

Honda ZB50A (88) MOTORCYCLE, JPN, VIN# JH2AB220-JS000006 TO JH2AB220-JS003064 MUFFLER Diagram

#

Description
Price

1

COVER, EX. PIPE

18240-GS9-000

Unavailable

2

GASKET, EX. PIPE

18291-HB2-900

$3.72

2

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.72

2

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.72

3

GASKET, PROTECTOR

18292-167-890

$1.88

3

GASKET, PROTECTOR This part replaces 18292-290-000.

18292-167-890

$1.88

3

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

4

RUBBER, PROTECTOR This part replaces 18293-GS9-000.

18293-MN0-000

$2.13

4

RUBBER, PROTECTOR

18293-MN0-000

$2.13

5

GASKET, PROTECTOR (NOT AVAILABLE)

18294-GS9-000

Unavailable

6

GASKET B, MUFFLER This part replaces 18295-KS3-920.

18295-KV6-920

Unavailable

6

GASKET B, MUFFLER This part replaces 18295-KZ1-670.

18295-KV6-920

Unavailable

6

GASKET B, MUFFLER This part replaces 18295-429-000.

18295-KV6-920

Unavailable

7

MUFFLER (NOT AVAILABLE)

18310-GS9-770

Unavailable

8

PROTECTOR, MUFFLER

18315-GS9-670

Unavailable

9

STAY, MUFFLER

18316-GS9-000

Unavailable

10

PROTECTOR, MUFFLER (NOT AVAILABLE)

18317-GS9-670

Unavailable

11

PIPE, EX. (NOT AVAILABLE)

18320-GS9-770

Unavailable

12

COVER, MUFFLER (NOT AVAILABLE)

18331-GS9-670

Unavailable

13

BAND, MUFFLER

18371-GS9-000

Unavailable

14

GASKET, MUFFLER

18391-HB7-000

$11.62

14

GASKET, MUFFLER This part replaces 18391-461-000.

18391-HB7-000

$11.62

15

BOLT, FLANGE (6X8) This part replaces 90012-GS9-670.

96001-06008-07

$1.49

16

SCREW-WASHER (5X8)

90116-GS9-000

Unavailable

17

BOLT, FLANGE (8X32)

90125-GS9-000

$2.97

18

NUT, CAP (6MM) This part replaces 90207-165-600.

90304-438-000

$7.14

18

NUT, CAP (6MM)

90304-438-000

$7.14

19

SCREW, PAN (5X12.5)

91508-GS9-000

Unavailable

20

WASHER (6MM)

90485-MB2-000

$1.91

21

BOLT, FLANGE (8X12)

95701-08012-07

$1.72

22

BOLT, FLANGE (8X20)

95701-08020-07

$1.87
