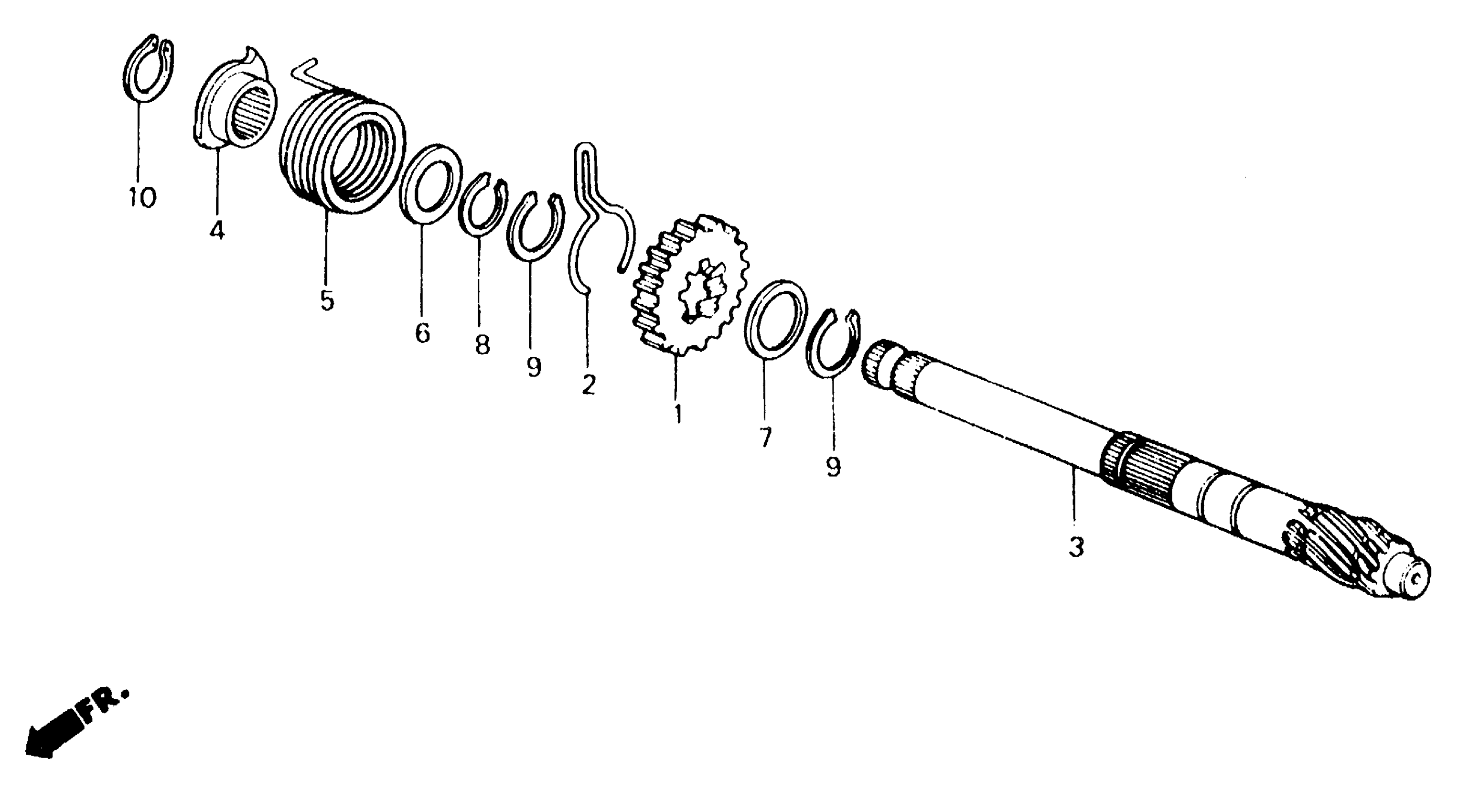

Honda ZB50A (88) MOTORCYCLE, JPN, VIN# JH2AB220-JS000006 TO JH2AB220-JS003064 KICK STARTER SPINDLE Diagram

PINION, KICK STARTER (22T)

28211-040-035

Unavailable

SPRING, KICK STARTER RATCHET

28223-035-035

Unavailable

SPINDLE, KICK STARTER This part replaces 28251-035-065.

28251-141-000

Unavailable

SPINDLE, KICK STARTER

28251-141-000

Unavailable

RETAINER, KICK SPRING This part replaces 28262-041-730.

28262-041-731

$16.77

RETAINER, KICK SPRING

28262-041-731

$16.77

SPRING, KICK STARTER (NIPPON HATSUJO)

28281-035-003

$8.38

SPRING, KICK STARTER (CHUO HATSUJO)

28281-035-018

$10.10

WASHER, THRUST (17MM)

90451-040-000

Unavailable

WASHER (20MM) (NOT AVAILABLE)

90482-035-025

Unavailable

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

SET-RING (20MM)

90605-200-000

$2.92

CIRCLIP (OUTER) (16MM)

94510-16000

$1.49
