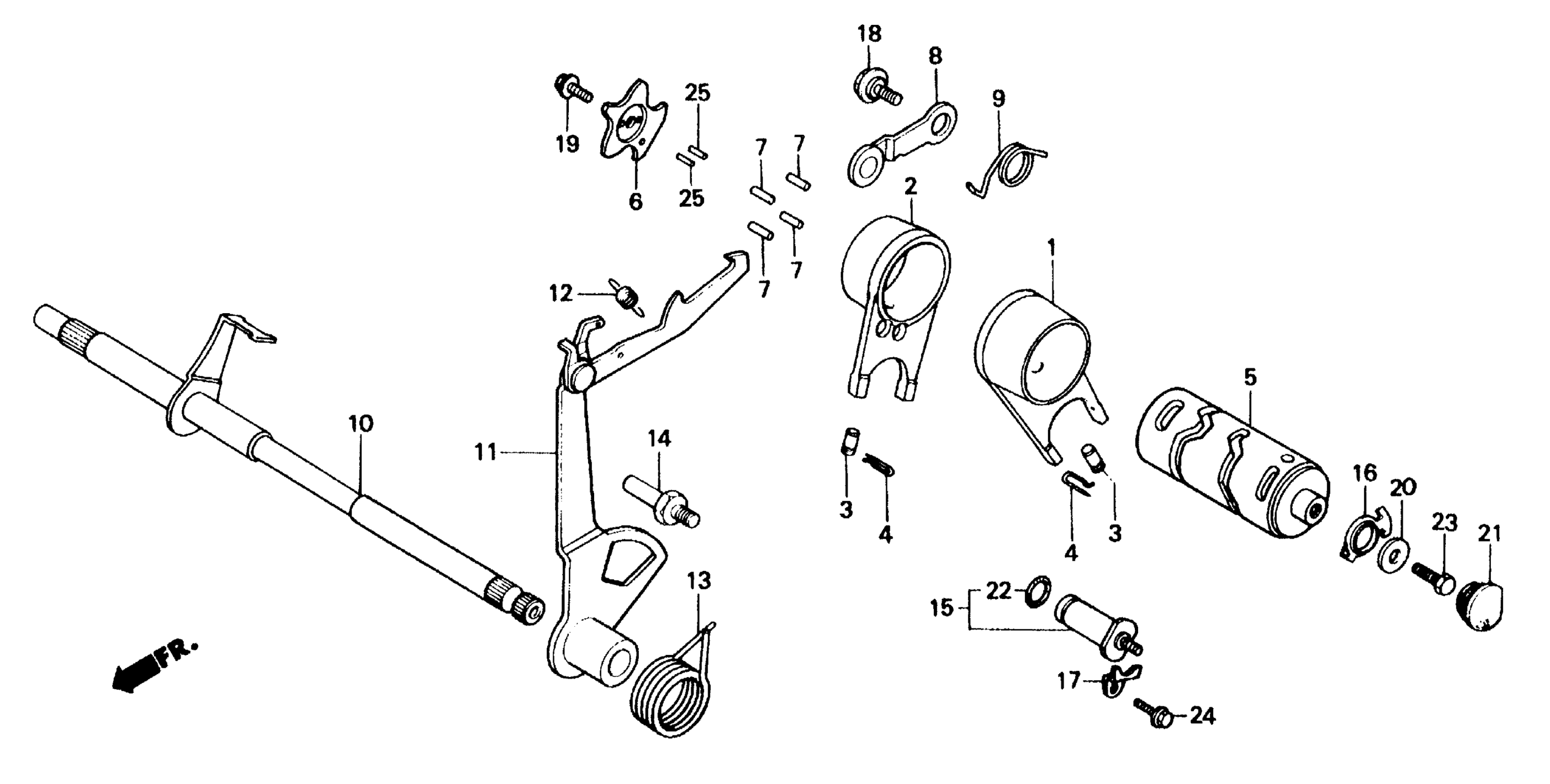

Honda ZB50A (88) MOTORCYCLE, JPN, VIN# JH2AB220-JS000006 TO JH2AB220-JS003064 GEARSHIFT DRUM Diagram

FORK, L. GEARSHIFT

24211-087-010

$70.77

FORK, L. GEARSHIFT This part replaces 24211-087-020.

24211-087-010

$70.77

FORK, R. GEARSHIFT

24221-041-010

$84.39

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-741.

24261-121-742

$2.33

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

DRUM, GEARSHIFT

24301-098-754

Unavailable

PLATE, GEARSHIFT DRUM STOPPER This part replaces 24411-041-050.

24411-041-060

$4.80

PIN, GEARSHIFT DRUM

24421-041-000

$2.07

ARM, SHIFT DRUM STOPPER

24430-GW8-710

$17.83

ARM, SHIFT DRUM STOPPER This part replaces 24430-HB2-000.

24430-GW8-710

$17.83

SPRING, SHIFT DRUM STOPPER This part replaces 24435-GB5-670.

24435-GB5-671

$3.25

SPINDLE, GEARSHIFT

24610-098-730

$58.95

ARM, GEARSHIFT This part replaces 24630-GB4-600.

24630-GB4-602

$27.23

ARM, GEARSHIFT This part replaces 24630-GB4-601.

24630-GB4-602

$27.23

SPRING, GEARSHIFT ARM

24641-041-000

$2.90

SPRING, GEARSHIFT RETURN

24651-041-000

$5.92

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$9.16

ROTOR, NEUTRAL SWITCH

35753-035-010

Unavailable

PLATE, CONTACT FIXING

35755-001-020

Unavailable

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

BOLT, DOWEL (6MM)

90071-171-010

$2.39

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

PLUG, RUBBER (19MM)

90801-035-000

$2.92

O-RING (7X1.7)

91312-107-000

$3.18

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

ROLLER (3X8.5)

96220-30085

$1.49
