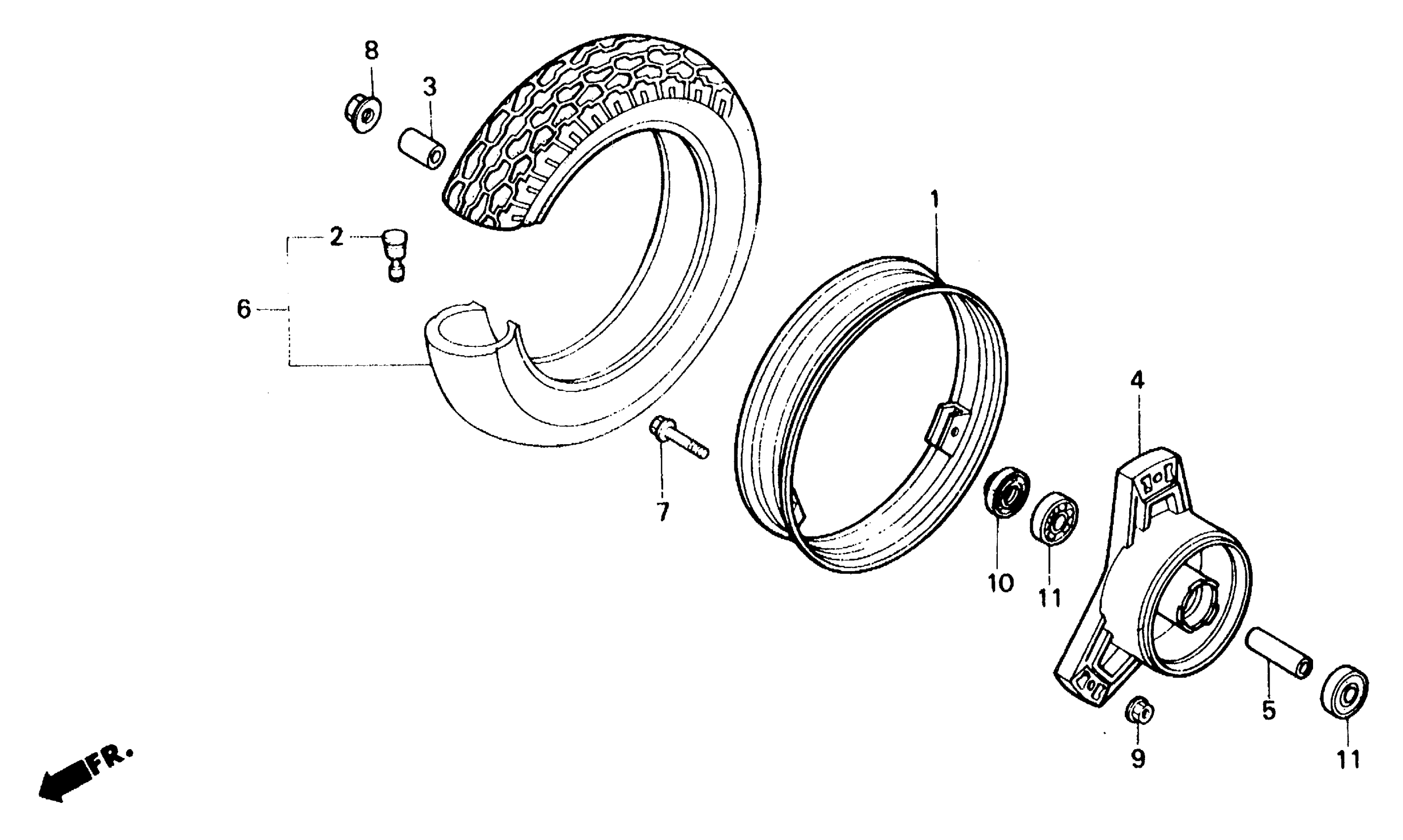

Honda ZB50A (88) MOTORCYCLE, JPN, VIN# JH2AB220-JS000006 TO JH2AB220-JS003064 FRONT WHEEL Diagram

RIM, WHEEL *R134* This part replaces 42701-GN3-700ZC.

42701-GN3-701ZC

Unavailable

VALVE, RIM This part replaces 42753-GC7-823.

42753-VM0-003

$9.46

VALVE, RIM

42753-VM0-003

$9.46

COLLAR, FR. WHEEL SIDE

44311-045-670

$4.85

HUB, FR. WHEEL *R134* (FIGHTING RED)

44601-GB2-720ZB

Unavailable

COLLAR, FR. AXLE DISTANCE

44620-170-000

Unavailable

TIRE ASSY., FR. (3.50-10) (2PR) (INOUE)

44710-GM9-713

Unavailable

BOLT, FLANGE (8X32)

90105-GM9-740

$4.15

BOLT, FLANGE (8X32) This part replaces 90122-GB2-721.

90105-GM9-740

$4.15

NUT, FLANGE (12MM)

90306-KF0-003

Unavailable

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.19

NUT, FLANGE (8MM)

90309-428-731

$3.19

OIL SEAL (21X37X7) (ARAI)

90755-229-003

$4.83

OIL SEAL (21X37X7) (ARAI) This part replaces 90755-229-005.

90755-229-003

$4.83

BEARING, RADIAL BALL (6301U)

96140-63010-10

$13.62
