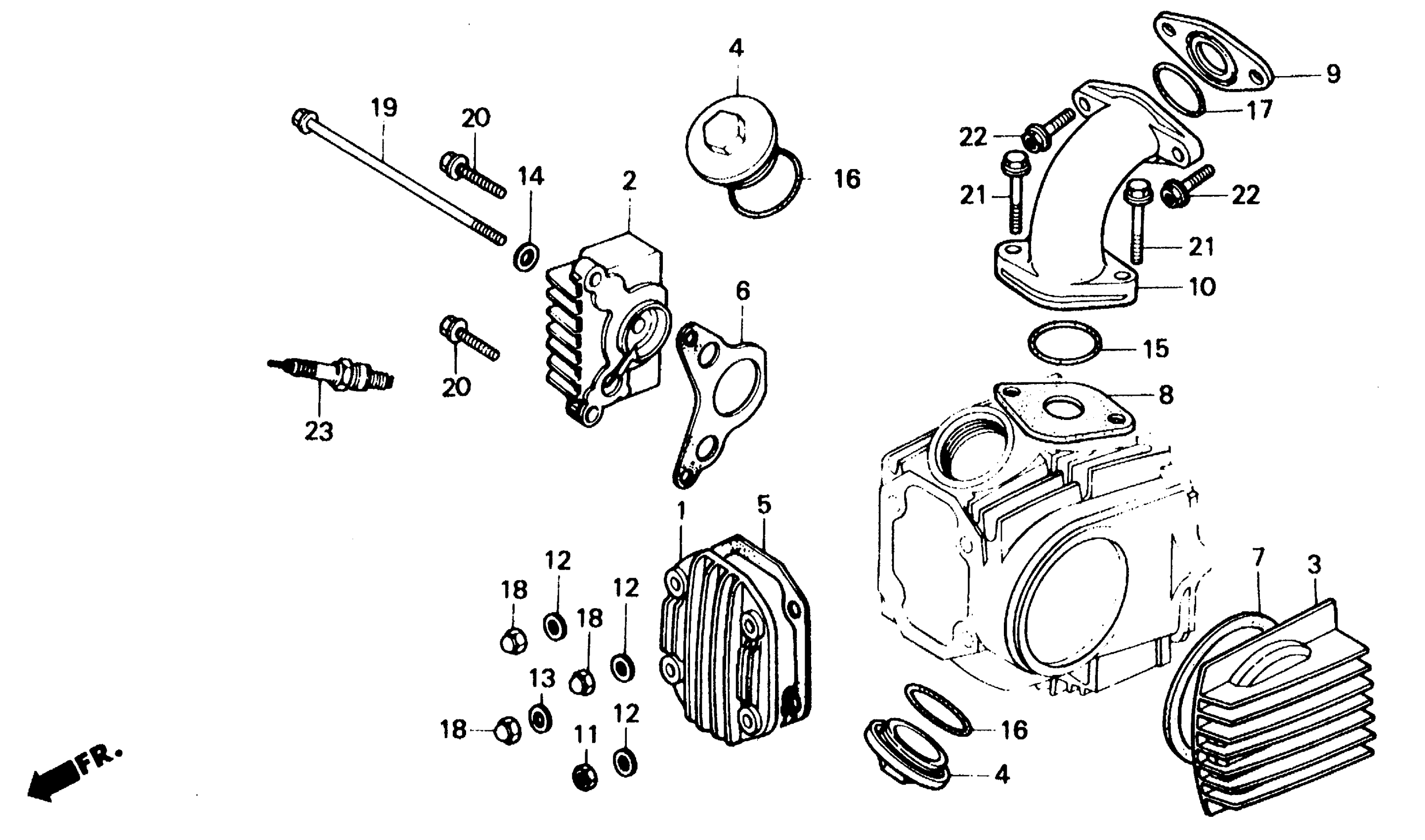

Honda ZB50A (88) MOTORCYCLE, JPN, VIN# JH2AB220-JS000006 TO JH2AB220-JS003064 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

12301-035-000

Unavailable

2

COVER, R. CYLINDER HEAD SIDE

12331-GB0-910

$27.13

3

COVER, L. CYLINDER HEAD SIDE

12341-065-920

Unavailable

4

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

4

CAP, VALVE ADJ.

12361-300-000

Unavailable

4

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

5

GASKET, CYLINDER HEAD COVER This part replaces 12391-GB2-003.

12391-KVM-C20

$3.95

5

GASKET, CYLINDER HEAD COVER This part replaces 12391-GB2-306.

12391-KVM-C20

$3.95

5

GASKET, CYLINDER HEAD COVER This part replaces 12391-GW8-680.

12391-KVM-C20

$3.95

6

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-GB4-306.

12394-GW8-682

$3.98

6

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-GB4-680.

12394-GW8-682

$3.98

6

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-GW8-680.

12394-GW8-682

$3.98

7

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-GB2-003.

12395-GW8-682

$4.73

7

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-GB2-306.

12395-GW8-682

$4.73

7

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-GW8-680.

12395-GW8-682

$4.73

8

GASKET, IN. PIPE This part replaces 16201-GS9-770.

16201-GS9-306

Unavailable

9

INSULATOR, CARBURETOR This part replaces 16211-GK4-306.

16211-GK4-721

Unavailable

9

INSULATOR, CARBURETOR This part replaces 16211-GK4-720.

16211-GK4-721

Unavailable

9

INSULATOR, CARBURETOR

16211-GK4-721

Unavailable

10

PIPE, INLET

17111-GS9-670

Unavailable

11

NUT, HEX. (6MM)

90230-087-000

$1.66

12

WASHER, SEALING (6MM)

90442-035-000

$2.04

13

WASHER A, SEALING (6MM)

90443-035-000

$3.48

14

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.50

15

O-RING (27X2.0)

91301-028-000

$2.80

16

O-RING (30.8MM)

91302-001-020

$3.46

17

O-RING (20.6X1.9)

91304-GB0-910

$3.61

18

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$2.07

18

NUT, CAP (6MM)

94021-06020

$2.07

18

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$2.07

18

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$2.07

19

BOLT, FLANGE (6X110) This part replaces 95700-06110-00.

95701-06110-00

$4.01

19

BOLT, FLANGE (6X110)

95701-06110-00

$4.01

20

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.15

20

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

21

BOLT, FLANGE (6X25)

96000-06025-00

$2.49

21

BOLT, FLANGE (6X25)

96001-06025-00

$2.49

22

BOLT, FLANGE (6X22)

96001-06022-00

$1.15

23

SPARK PLUG (CR6HS) (NGK)

98056-56716

$2.35

23

SPARK PLUG (U20FSR-U) (DENSO)

98056-56726

$2.28

23

SPARK PLUG (CR7HS) (NGK) | (Optional).

98056-57716

$2.35

23

SPARK PLUG (U22FSR-U) (DENSO) | (Optional).

98056-57726

$2.28
