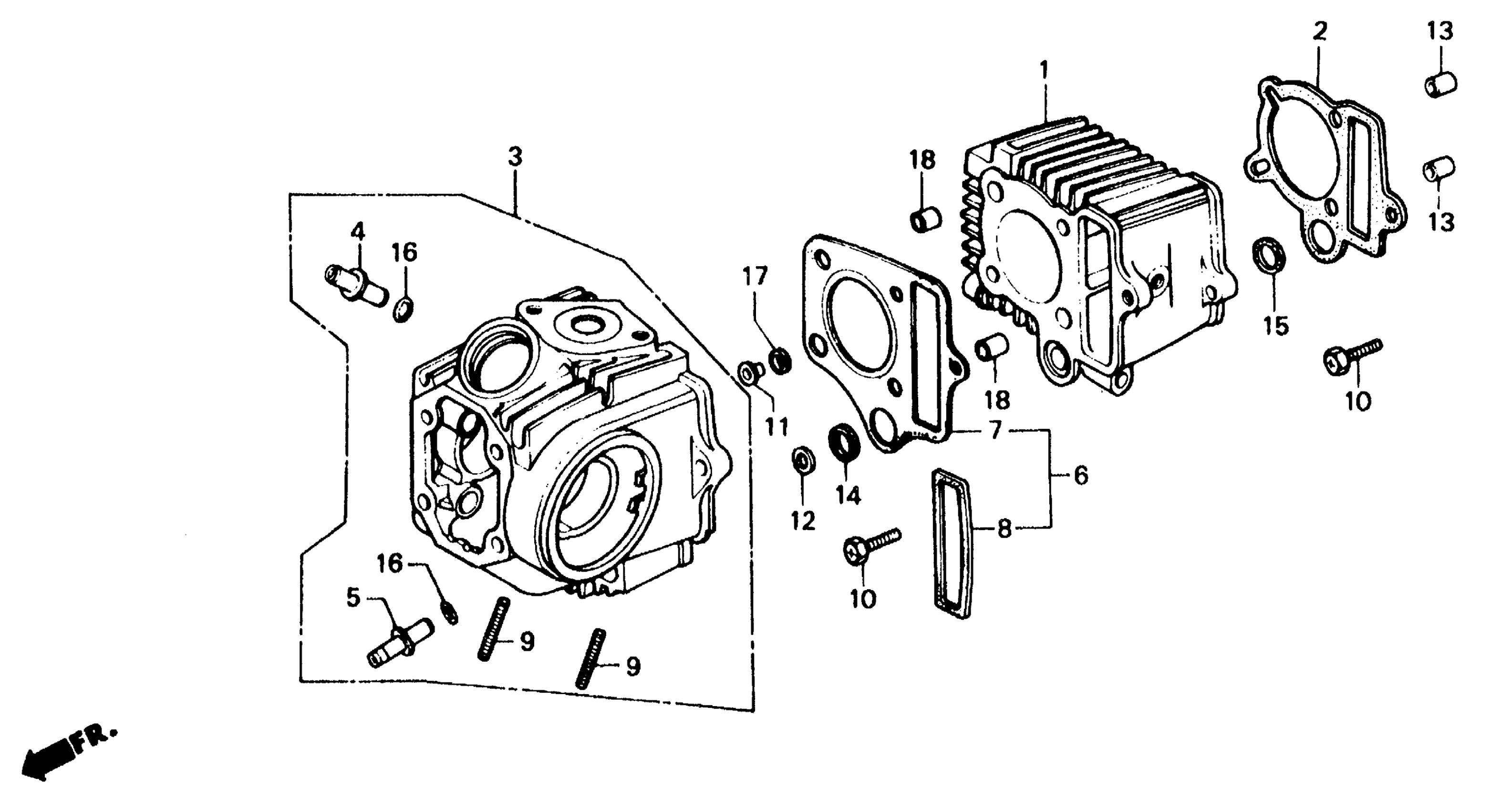

Honda ZB50A (88) MOTORCYCLE, JPN, VIN# JH2AB220-JS000006 TO JH2AB220-JS003064 CYLINDER Diagram

#

Description
Price

1

CYLINDER

12101-GB2-000

$197.73

2

GASKET, CYLINDER This part replaces 12191-GB2-004.

12191-GW8-683

$8.88

2

GASKET, CYLINDER This part replaces 12191-GB2-306.

12191-GW8-683

$8.88

2

GASKET, CYLINDER This part replaces 12191-GW8-681.

12191-GW8-683

$8.88

3

CYLINDER HEAD

12200-GK4-761

$270.10

4

GUIDE, VALVE

12237-GK4-305

$12.21

5

GUIDE, EX. VALVE

12245-GK4-305

$12.21

6

GASKET ASSY., CYLINDER HEAD (NOT AVAILABLE) This part replaces 12250-GB2-000.

12250-GW8-680

Unavailable

6

GASKET ASSY., CYLINDER HEAD

12250-GW8-680

Unavailable

7

GASKET, CYLINDER HEAD This part replaces 12251-GB2-000.

12251-GB2-505

Unavailable

7

GASKET, CYLINDER HEAD

12251-GB2-505

Unavailable

8

SEAL, CAM CHAIN CHAMBER

12255-GB0-911

Unavailable

9

BOLT, STUD (6X32)

90033-041-020

$2.25

10

BOLT (6MM)

90082-035-010

$2.39

11

COLLAR (9.5MM)

90602-GB0-911

Unavailable

12

COLLAR (14.8MM)

90603-GB0-911

$3.10

13

PIN A, DOWEL (8X12) This part replaces 90702-GB6-910.

94301-08120

$2.19

13

PIN A, DOWEL (8X12)

94301-08120

$2.19

14

O-RING (14.5MM) This part replaces 91301-GB0-911.

91301-GF6-003

$6.69

14

O-RING (14.5MM)

91301-GF6-003

$6.69

15

GASKET, RUBBER (16MM)

91303-035-000

$4.87

16

O-RING (9X1.6) (ARAI) This part replaces 91305-028-158.

91305-028-900

$2.92

16

O-RING (9X1.6)

91305-028-900

$2.92

17

GASKET, RUBBER (9MM)

91306-141-000

$4.65

18

PIN A, DOWEL (8X14)

94301-08140

$2.25
