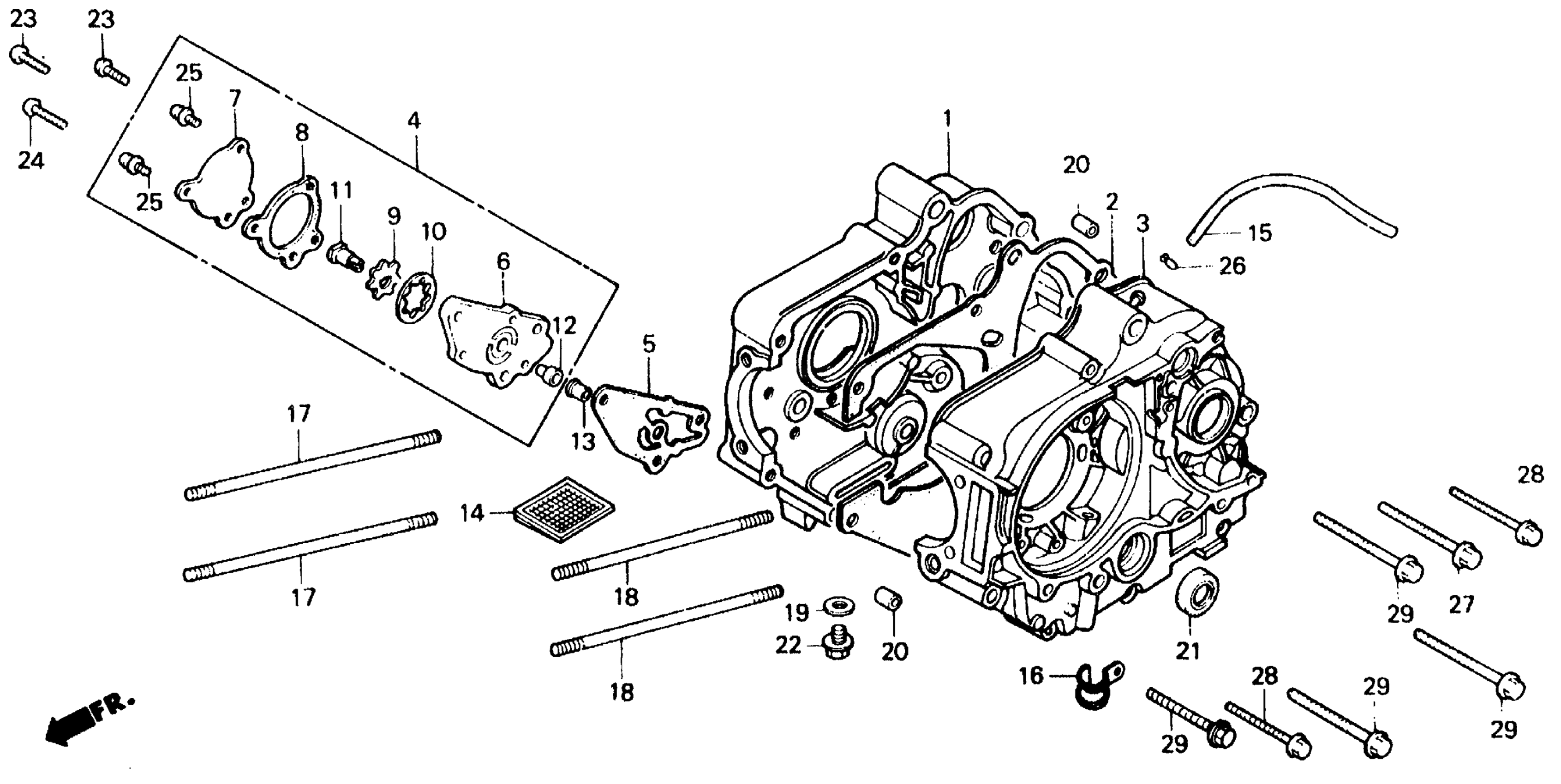

Honda ZB50A (88) MOTORCYCLE, JPN, VIN# JH2AB220-JS000006 TO JH2AB220-JS003064 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. This part replaces 11100-GB4-010.

11100-GEL-A80

$276.26

2

GASKET, CRANKCASE This part replaces 11191-GB4-000.

11191-GW8-682

$14.29

2

GASKET, CRANKCASE This part replaces 11191-GB4-306.

11191-GW8-682

$14.29

2

GASKET, CRANKCASE This part replaces 11191-GW8-680.

11191-GW8-682

$14.29

3

CRANKCASE, L.

11200-GB4-020

Unavailable

4

PUMP ASSY., OIL

15100-178-000

Unavailable

5

GASKET, OIL PUMP BODY

15119-178-000

$3.85

6

BODY, OIL PUMP (NOT AVAILABLE)

15311-178-000

Unavailable

7

COVER, OIL PUMP (NOT AVAILABLE)

15321-035-003

Unavailable

8

GASKET, OIL PUMP COVER

15329-035-003

$4.24

9

ROTOR, OIL PUMP (INNER)

15331-107-000

Unavailable

10

ROTOR, OIL PUMP (OUTER)

15332-107-000

Unavailable

11

DRIVESHAFT, OIL PUMP (NOT AVAILABLE)

15382-178-000

Unavailable

12

PIN, OIL PUMP KNOCK (NOT AVAILABLE)

15383-178-300

Unavailable

13

PIVOT, OIL PUMP

15384-178-000

$5.77

14

SCREEN, OIL FILTER

15421-035-010

$3.80

15

TUBE, BREATHER (5X340)

15761-GS3-405

Unavailable

15

TUBE, BREATHER (5X340) This part replaces 15761-GS9-670.

15761-GS3-405

Unavailable

16

CLAMP, OVERFLOW PIPE

16236-045-010

$4.49

17

BOLT A, CYLINDER STUD

90031-035-010

$5.46

18

BOLT B, CYLINDER STUD

90032-035-000

$5.46

19

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

20

PIN A, DOWEL (10X14) This part replaces 90704-035-000.

94301-10140

$2.28

20

PIN A, DOWEL (10X14)

94301-10140

$2.28

21

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

22

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

23

SCREW, PAN (6X16)

93500-06016-0A

$1.49

24

SCREW, PAN (6X22)

93500-06022-0A

$1.49

25

SCREW-WASHER (5X10)

93892-05010-00

$1.49

26

CLIP, TUBE (C9)

95002-50000

$1.49

27

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

27

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

28

BOLT, FLANGE (6X60) This part replaces 96000-06060-00.

96001-06060-00

$2.06

28

BOLT, FLANGE (6X60)

96001-06060-00

$2.06

29

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

29

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
