Description

Price

11065

CAP

11065-0072

$7.20

16014

SCREW-PILOT AIR

16014-0017

$27.26

16073

INSULATOR,INJECTER

16073-1123

$9.73

16163A

THROTTLE-ASSY

16163-1255

$1,933.68

21176

SENSOR,PRESSURE

21176-0906

$222.28

31064

PIPE-COMP

31064-0692

$85.93

49033

NOZZLE-INJECTION

49033-0034

$122.38

49056

PIPE-INJECTION

49056-0049

$103.61

59071

JOINT

59071-0022

$17.44

92005

FITTING

92005-1380

$16.65

92037

CLAMP,TUBE

92037-1124

$6.11

92055

RING-O

92055-0761

$7.40

92055A

RING-O,REGULATOR-FUEL

92055-2187

$3.00

92161

DAMPER

92161-0673

$5.54

92170

CLAMP

92170-3749

$3.57

92172

SCREW,PIPE INJECTION

92172-0828

$3.02

92191

TUBE,3.2X7.4X40

92191-1551

$2.78

92192A

TUBE,3.2X7.4X75

92192-1446

$11.40

92192D

TUBE,3.2X7.4X45

92192-1617

$7.52

92192E

TUBE,3.2X7.4X55

92192-1802

$11.19

92192G

TUBE,3.2X7.4X175

92192-1805

$26.91

92200

WASHER

92200-3807

$6.00

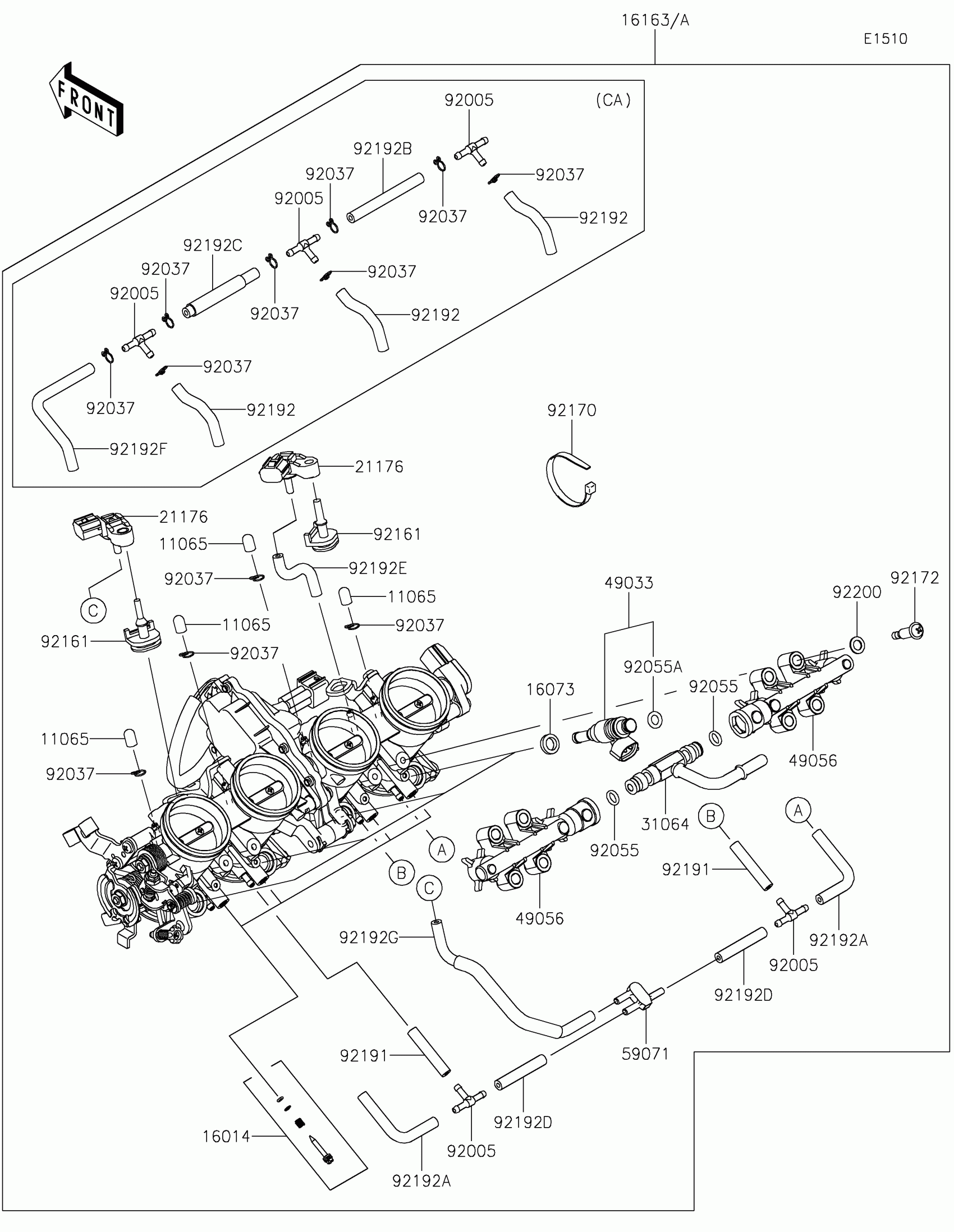

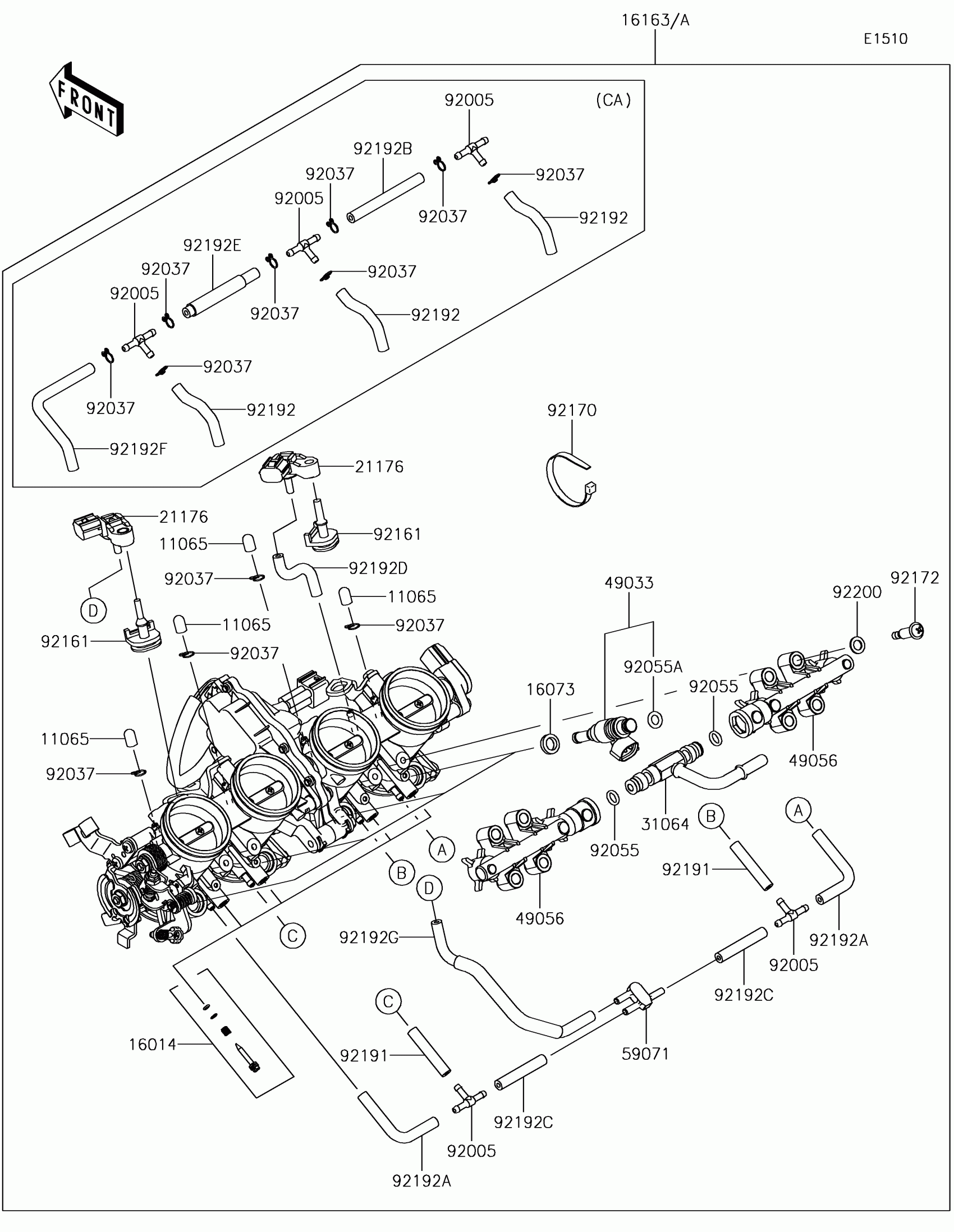

Kawasaki Z900RS Throttle Diagram

CAP
