2024 Kawasaki Z900RS SE Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2024 Kawasaki Z900RS SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

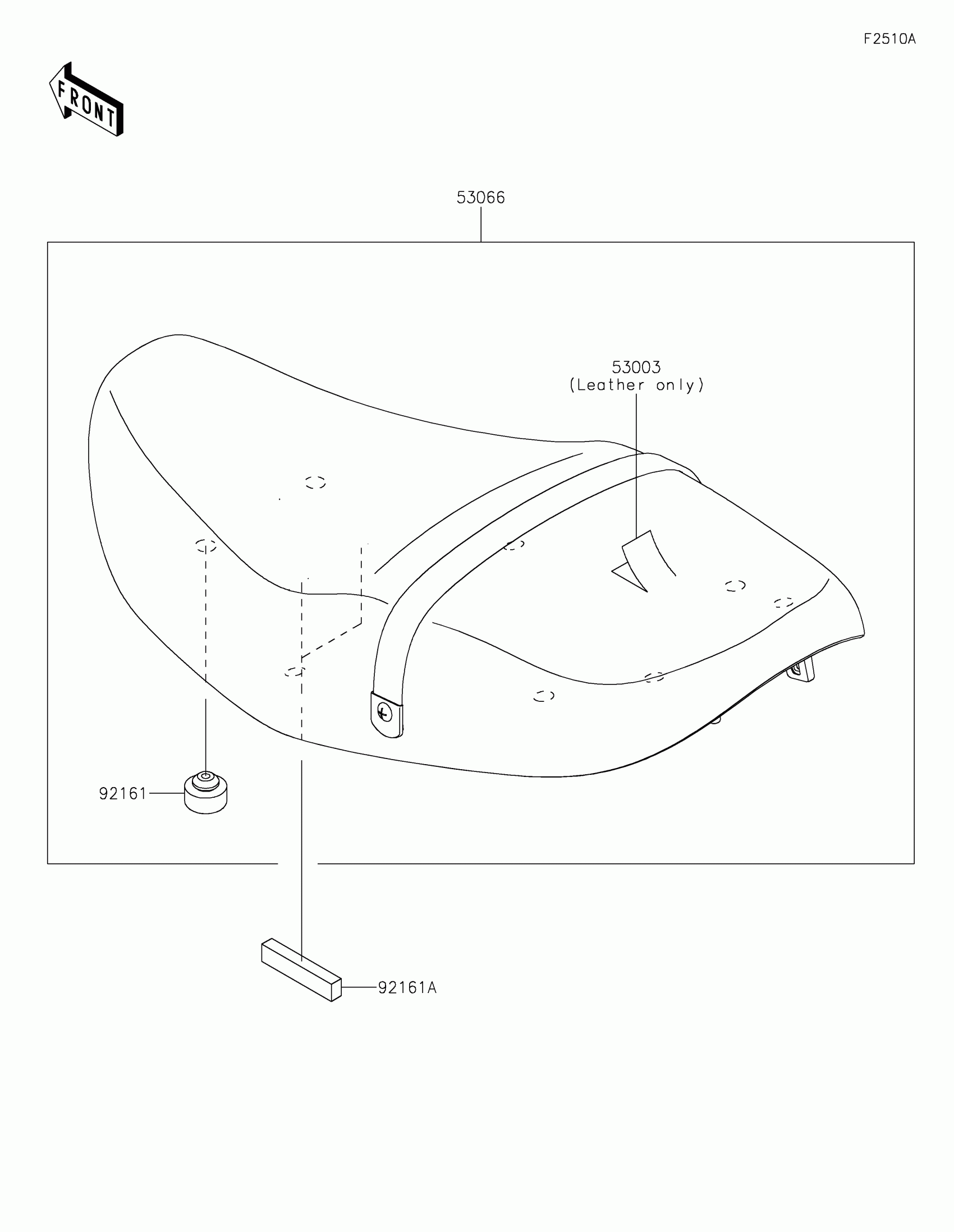

2024 Kawasaki Z900RS SE Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

53003

LEATHER,BLACK

53003-0592-MA

1
Out of stock

53066

SEAT-ASSY,HIGH,BLACK+BLK

53066-0779-12Y

1
Out of stock

92161

DAMPER,SEAT

92161-0930

1
Out of stock

92161A

DAMPER,10X70X15

92161-2132

1
Out of stock
← Rear Fender Seat →
