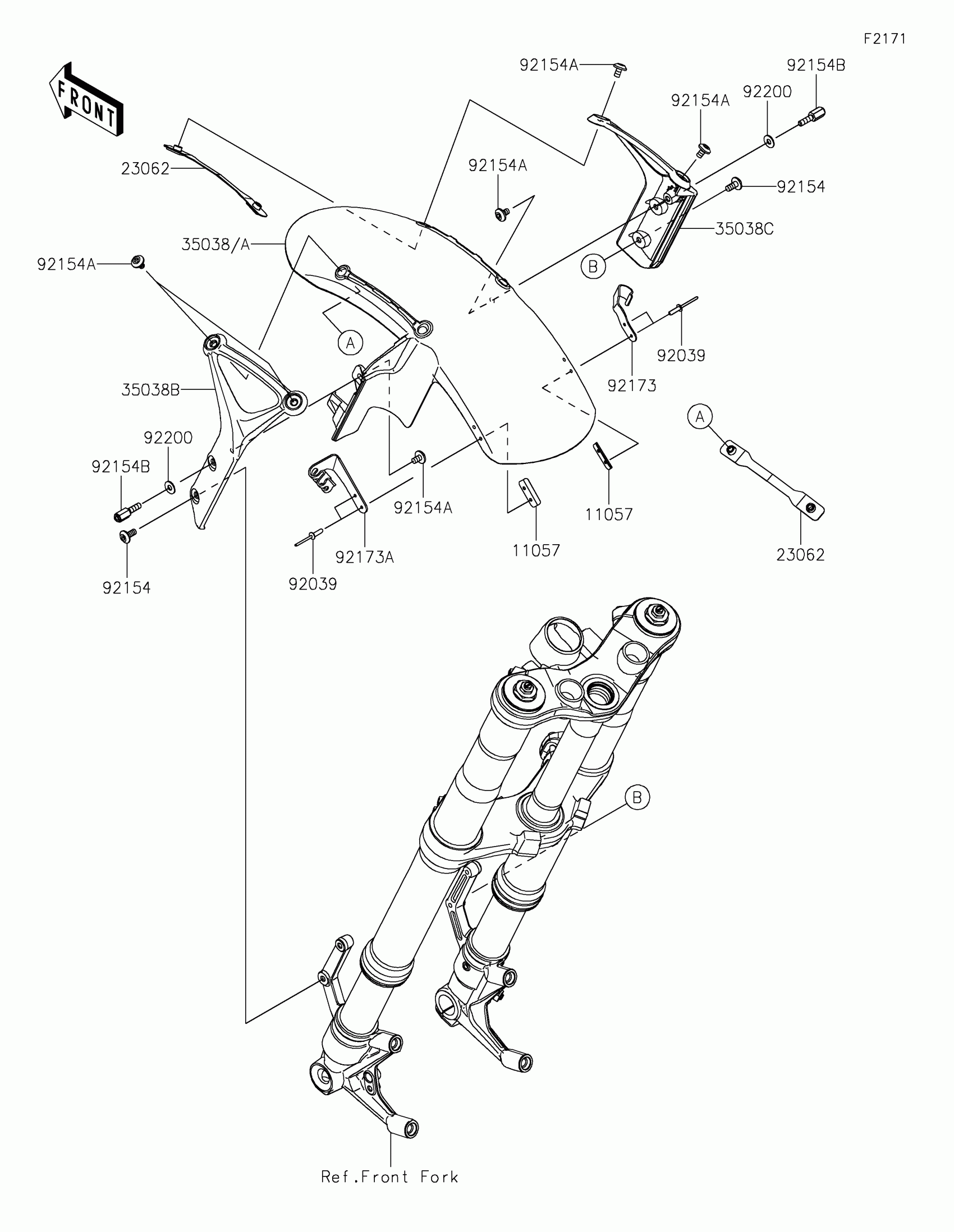

Kawasaki Z900RS SE Front Fender(s) Diagram

Description

Price

11057

BRACKET

11057-1565

$3.29

23062

BRACKET-COMP

23062-0979

$13.17

35038

FENDER-FRONT,M.D.BLACK

35038-0002-17K

$203.83

35038A

FENDER-FRONT,M.F.S.BLACK

35038-0002-739

$185.15

35038B

FENDER-FRONT,ARM,LH,F.S.BLACK

35038-0003-18R

$83.20

35038C

FENDER-FRONT,ARM,RH,F.S.BLACK

35038-0004-18R

$83.20

92039

RIVET,3.2X9.5

92039-0752

$0.81

92154

BOLT,SOCKET,6X14

92154-1735

$1.62

92154A

BOLT,SOCKET,6X10

92154-1834

$1.98

92154B

BOLT,CONNECTOR

92154-3734

$12.24

92173

CLAMP,RH

92173-1740

$7.32

92173A

CLAMP,LH

92173-2448

$16.00

92200

WASHER,6.2X15X1.2

92200-1762

$0.95
