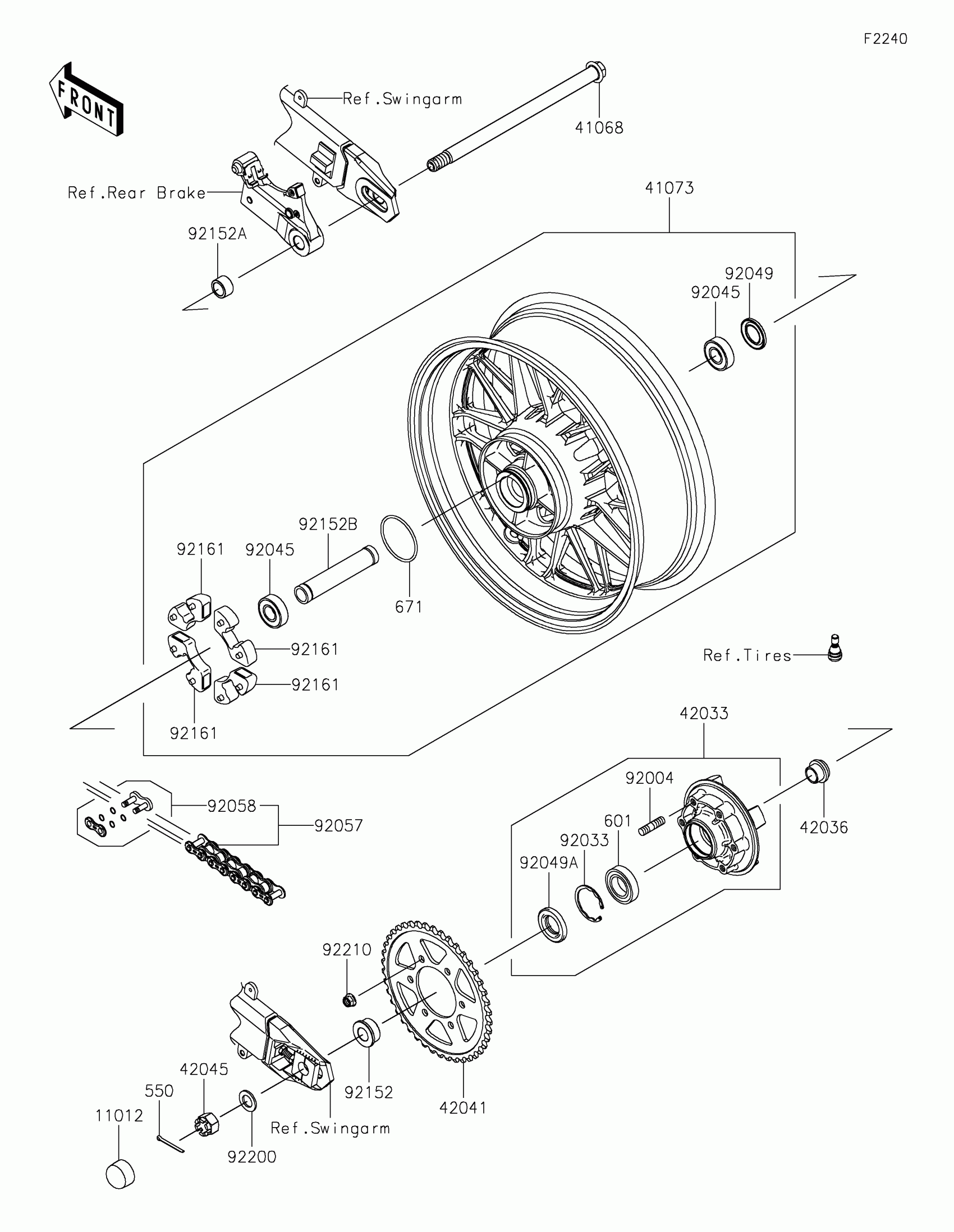

Kawasaki Z900RS SE Rear Wheel/Chain Diagram
#
Description
Price
11012
CAP,AXLE NUT
11012-1590
$5.25
41068
AXLE,RR,18X327.2
41068-0619
$85.43
41073
WHEEL-ASSY,RR,GOLD
41073-0787-63J
$1,046.08
42033
COUPLING-ASSY,RR HUB
42033-0028
$237.91
42036
SLEEVE,RR HUB,L=23
42036-1251
$26.21
42041
SPROCKET-HUB,42T
42041-0163
$92.75
42045
NUT,CASTLE,18MM
42045-018
$9.23
92004
STUD,10X19
92004-0028
$8.92
92033
RING-SNAP,52MM
92033-1043
$8.05
92045
BEARING-BALL,20X47X14
92045-0821
$19.73
92049
SEAL-OIL,BJN28475
92049-1056
$13.08
92049A
SEAL-OIL
92049-1287
$13.08
92057
CHAIN,DRIVE,EK525RMX3/3D,114L
92057-0672
$267.80
92058
JOINT-CHAIN
92058-0041
$15.48
92152
COLLAR,RR AXLE,LH,L=18
92152-0118
$7.87
92152A
COLLAR,RR AXLE,RH,L=16.4
92152-0559
$25.29
92152B
COLLAR,20.2X27.2X141.9
92152-2551
$29.31
92161
DAMPER,SHOCK,RR HUB
92161-0342
$26.13
92200
WASHER,19X32X2.6
92200-1489
$1.83
92210
NUT,LOCK,FLANGED,10MM
92210-0276
$2.61
550
PIN-COTTER,4.0X40
550AA4040
$1.36
601
BEARING-BALL
601B6205UU
$29.62
671
O RING,60MM
671B2560
$6.91
